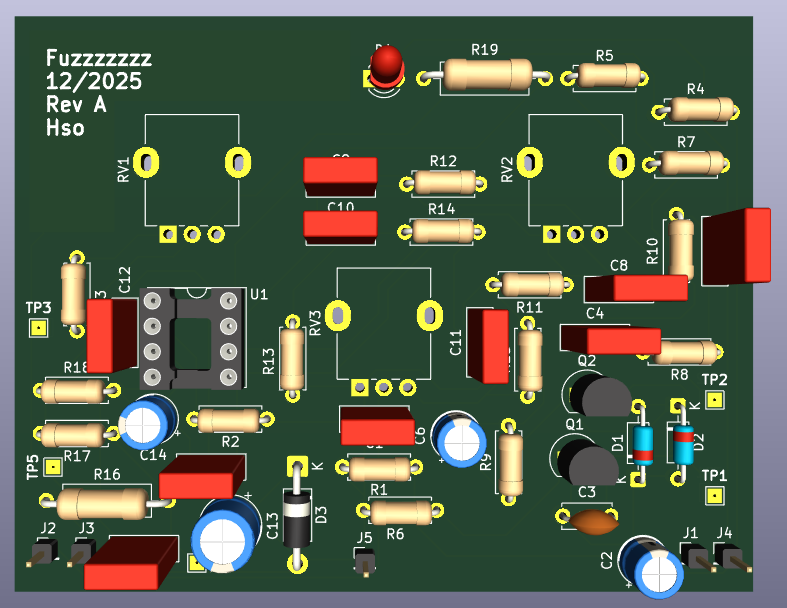

Fuzzzzzzz guitar pedal
About the Fuzzzzzzz guitar pedal PCB
Fuzzzzzzz guitar pedal is an open source PCB design by HenriqueStelzer, published on GitHub. It is a 2-layer board measuring 77 × 60 mm, with 49 components from 37 distinct parts.
Other key parts include the JRC4558. By type, the board carries 19 resistors, 15 capacitors, 5 connectors, 4 diodes, 2 transistors and 1 IC.
It belongs with the audio and power & battery designs in this gallery.
From the project
Fuzzzzzzz - A guitar pedal
1. Features 2. Circuit Overview 3. Usage - Connections - Turning the Effect On and Off - The Knobs - Tips & Tricks - Modding 4. Bill of Materials (BOM) 5. Off-Board Bill of Materials 6. Assembly - Tools Required - Step 1 — Populate the PCB - Step 2 — Drill the Enclosure - Step 3 — Mount the PCB - Step 4 — Install Off-Board Components - Step 5 — Wire Off-Board Components to the PCB - Step 6 — Wire the 3PDT Footswitch - Step 7 — Test Before Closing - Step 8 — Close the Enclosure
Main components on the Fuzzzzzzz guitar pedal
Fuzzzzzzz guitar pedal bill of materials (BOM)
49 components, 37 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | JRC4558 | DIP-8_W7.62mm_Socket | U1 |
| 1 | 2N5088 | TO-92_Inline | Q1 |
| 1 | 2N4401 | TO-92_Inline | Q2 |
| 1 | IN | PinHeader_1x01_P2.00mm_Vertical | J1 |
| 1 | OUT | PinHeader_1x01_P2.00mm_Vertical | J2 |
| 1 | PWR | PinHeader_1x01_P2.00mm_Vertical | J3 |
| 1 | LED | PinHeader_1x01_P2.00mm_Vertical | J4 |
| 1 | GND | PinHeader_1x01_P2.00mm_Vertical | J5 |
| 3 | 100KA | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1, RV2, RV3 |
| 2 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2 |
| 1 | 1N5819 | D_DO-41_SOD81_P10.16mm_Horizontal | D3 |
| 1 | LED | LED_D3.0mm | D4 |
| 4 | 100NF 100nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C1, C10, C12, C15 |
| 1 | 4U7 4u7 | CP_Radial_D5.0mm_P2.50mm | C2 |
| 1 | 100PF 100pF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C3 |
| 1 | 2N2 2n2 | C_Rect_L7.0mm_W2.5mm_P5.00mm | C4 |
| 1 | 47NF 47nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C5 |
| 1 | 47UF 47uF | CP_Radial_D5.0mm_P2.50mm | C6 |
| 1 | 4N7 4n7 | C_Rect_L7.0mm_W2.5mm_P5.00mm | C7 |
| 1 | 22NF 22nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C8 |
Show 17 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10NF 10nF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C9 |
| 1 | 1UF 1uF | C_Rect_L7.0mm_W2.5mm_P5.00mm | C11 |
| 1 | 100UF 100uF | CP_Radial_D6.3mm_P2.50mm | C13 |
| 1 | 10UF 10uF | CP_Radial_D5.0mm_P2.50mm | C14 |
| 2 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R15 |
| 3 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R4 |
| 2 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R10 |
| 1 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 1 | 4K7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7 |
| 2 | 2K2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8, R13 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9 |
| 1 | 1K5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11 |
| 1 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R12 |
| 1 | 33K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R14 |
| 1 | 47R | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R16 |
| 2 | 220K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R17, R18 |
| 1 | 4K7 | R_Axial_DIN0309_L9.0mm_D3.2mm_P12.70mm_Horizontal | R19 |
Fuzzzzzzz guitar pedal design files
The KiCad project lives in the HenriqueStelzer/fuzzzzzzz-guitar-pedal repository on GitHub; these links point at the commit this page was built from.
Fuzzzzzzz guitar pedal: common questions
How big is the Fuzzzzzzz guitar pedal PCB?
The Fuzzzzzzz guitar pedal measures 77 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fuzzzzzzz guitar pedal?
49 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Fuzzzzzzz guitar pedal design files?
From the HenriqueStelzer/fuzzzzzzz-guitar-pedal repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Fuzzzzzzz guitar pedal design in my own project?
The repository has no license, so all rights stay with HenriqueStelzer. Use it as a reference, and ask the author before reusing the design.
