Oltronix D400
About the Oltronix D400 PCB
Oltronix D400 is an open source PCB design by hevanaa, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 92 × 51 mm, with 27 components from 22 distinct parts.
By type, the board carries 9 resistors, 5 diodes, 5 capacitors, 3 transformers and 2 connectors.
It belongs with the power & battery and audio designs in this gallery.
From the project

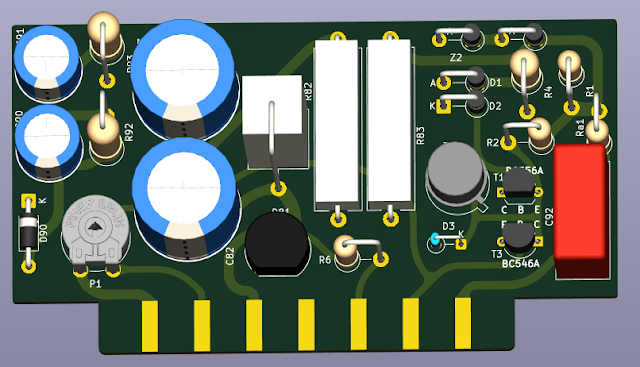

Oltronix D400-007D power supply error amplifier PCB
This repository contains a redesigned regulator board for the Oltronix D400-007D 400 V DC power supply.
The goal of this redesign is improved safety margins, better component availability, and improved PCB high-voltage layout compared to the original design.
- /project/ KiCad PCB and schematic files
- /production/ Gerber files, drill files
- /docs/ Documentation, and reference material
Oltronix D400 bill of materials (BOM)
27 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Edge connector | Oltronix_HV_board_edge_connector_15 | J1 |
| 1 | 1k | Potentiometer_Piher_PT-10-V10_Vertical | P1 |
| 1 | 220K 220k | R_Axial_DIN0411_L9.9mm_D3.6mm_P5.08mm_Vertical | Ra1 |
| 1 | BC556A | TO-92_Inline_Wide | T1 |
| 1 | 2N4037 | TO-39-3 | T2 |
| 1 | BC546A | TO-92_Inline_Wide | T3 |
| 2 | BZX85C12 | D_DO-41_SOD81_P5.08mm_Vertical_AnodeUp | Z1, Z2 |
| 1 | 1N4007 | D_DO-41_SOD81_P5.08mm_Vertical_AnodeUp | D1 |
| 1 | 1N4007 | D_DO-41_SOD81_P5.08mm_Vertical_CathodeUp | D2 |
| 1 | 1N4148 | D_DO-35_SOD27_P3.81mm_Vertical_CathodeUp | D3 |
| 1 | W10G | Diode_Bridge_Round_D9.8mm | D81 |
| 1 | 1N4007 | D_DO-41_SOD81_P10.16mm_Horizontal | D90 |
| 2 | 22µF | CP_Radial_D16.0mm_P7.50mm | C82, C83 |
| 2 | 22µF | CP_Radial_D10.0mm_P5.00mm | C90, C91 |
| 1 | 0.22 µF | C_Rect_L18.0mm_W8.0mm_P15.00mm_FKS3_FKP3 | C92 |
| 1 | 15K 15k | R_Axial_DIN0411_L9.9mm_D3.6mm_P5.08mm_Vertical | R1 |
| 1 | 220K 220k | R_Axial_DIN0411_L9.9mm_D3.6mm_P5.08mm_Vertical | R2 |
| 1 | 1k | R_Axial_DIN0414_L11.9mm_D4.5mm_P5.08mm_Vertical | R4 |
| 1 | 3k | R_Axial_Power_L25.0mm_W9.0mm_P7.62mm_Vertical | R5 |
| 1 | 2.2M | R_Axial_DIN0411_L9.9mm_D3.6mm_P5.08mm_Vertical | R6 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 9k | R_Axial_Power_L25.4mm_W7mm_P27.94mm | R82, R83 |
| 2 | 100K 100k | R_Axial_DIN0516_L15.5mm_D5.0mm_P5.08mm_Vertical | R92, R93 |
Oltronix D400 design files
The KiCad project lives in the hevanaa/Oltronix_D400 repository on GitHub; these links point at the commit this page was built from.
Oltronix D400: common questions
How big is the Oltronix D400 PCB?
The Oltronix D400 measures 92 × 51 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Oltronix D400?
27 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Oltronix D400 design files?
From the hevanaa/Oltronix_D400 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Oltronix D400 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which hevanaa chose for the repository.
