About the MiniPerformerPlus PCB
MiniPerformerPlus is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 74.2 × 88.9 mm, with 42 components from 10 distinct parts.
Other key parts include the 68000, 68030, 68882 and GAL16V8. By type, the board carries 18 resistors, 14 capacitors, 8 ICs and 1 connector.
It belongs with the retro computing designs in this gallery.
From the project

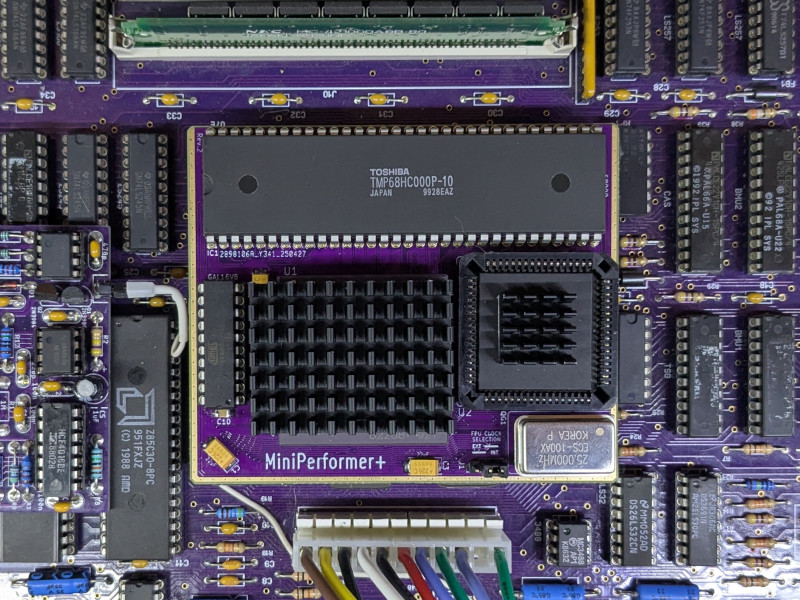

A 68030 accelerator for Machintosh Plus computers
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
This board is a remix of the Micromac Performer reversed by Bolle, resized for installation on the Macintosh Plus clone I am using.

Main components on the MiniPerformerPlus
MiniPerformerPlus bill of materials (BOM)
42 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 68000 | DIP-64_W22.86mm | IC1 |
| 1 | 68030 | CPGA-128_Layout13x13_MC68030 | U1 |
| 1 | 68882 | PLCC-68_THT-Socket | U2 |
| 4 | GAL16V8 | PLCC-20_SMD-Socket | U3, U4, U5, U6 |
| 1 | GAL16V8 | DIP-20_W7.62mm | U7 |
| 1 | FPU Clock | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | QG5860 | Oscillator_DIP-14-8 | QG1 |
| 3 | 22uF | CP_EIA-6032-28_Kemet-C_Pad2.25x2.35mm_HandSolder | C1, C2, C3 |
| 11 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C4, C5, C6, C7, C8, C9, C10, C11 +3 |
| 18 | 4k7 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +10 |
MiniPerformerPlus design files
The KiCad project lives in the hkzlab/MiniPerformerPlus repository on GitHub; these links point at the commit this page was built from.
- LayoutMM Performer.kicad_pcb
- SchematicMM Performer.kicad_sch
MiniPerformerPlus: common questions
How big is the MiniPerformerPlus PCB?
The MiniPerformerPlus measures 74.2 × 88.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the MiniPerformerPlus?
42 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the MiniPerformerPlus design files?
From the hkzlab/MiniPerformerPlus repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MiniPerformerPlus design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
