About the Padapter PCB

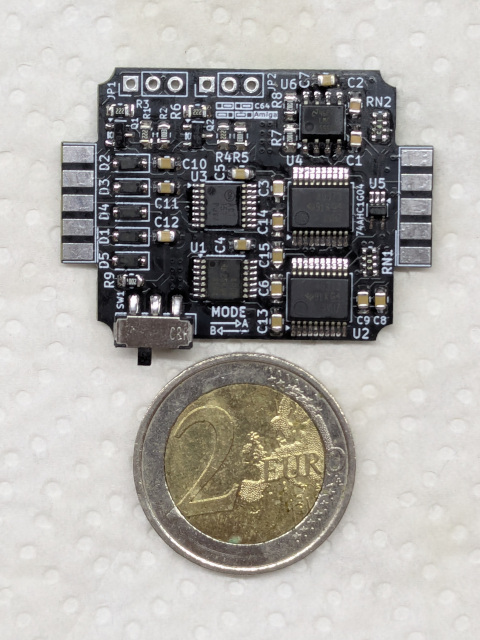

Padapter is an open source PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 42.7 × 31 mm, with 42 components from 16 distinct parts.
Other key parts include the 74ACT08, 74ACT373, 74ACT157, 74AHC1G04 and NE555D. By type, the board carries 15 capacitors, 11 resistors, 6 ICs, 5 diodes, 2 transistors and 2 connectors.
It belongs with the retro computing designs in this gallery.
From the project
Genesis/MegaDrive gamepad to C64/Amiga adapter, with 3 button support and switchable button map
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
This board converts a SEGA MegaDrive/Genesis 3-button gamepad for C64 (and similar)/Amiga use. It is inspired by the OpenC64MegaDrivePadAdapter.

Main components on the Padapter
Padapter bill of materials (BOM)
42 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74ACT08 | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 2 | 74ACT373 | SSOP-20_5.3x7.2mm_P0.65mm | U2, U4 |
| 1 | 74ACT157 | TSSOP-16_4.4x5mm_P0.65mm | U3 |
| 1 | 74AHC1G04 | SOT-353_SC-70-5_Handsoldering | U5 |
| 1 | NE555D | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 2 | BC847 | SOT-23 | Q1, Q2 |
| 1 | DB9_F_TO_C64 | DSUB-9_Female_EdgeMount_P2.77mm | J1 |
| 1 | DB9_M_TO_PAD | DSUB-9_Male_EdgeMount_P2.77mm | J2 |
| 1 | MODE | SW_SPDT_CK_JS102011SAQN | SW1 |
| 5 | 1N4148 | D_SOD-123F | D1, D2, D3, D4, D5 |
| 2 | 10nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 13 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C4, C5, C6, C7, C8, C9, C10 +5 |
| 4 | 2.2k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R3, R4, R6 |
| 2 | 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R5 |
| 3 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R8, R9 |
| 2 | 10K | R_Array_Convex_4x0612 | RN1, RN2 |
Padapter design files
The KiCad project lives in the hkzlab/Padapter repository on GitHub; these links point at the commit this page was built from.
- LayoutMDC64Padapter.kicad_pcb
- SchematicMDC64Padapter.kicad_sch
Padapter: common questions
How big is the Padapter PCB?
The Padapter measures 42.7 × 31 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Padapter?
42 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the Padapter design files?
From the hkzlab/Padapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Padapter design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
