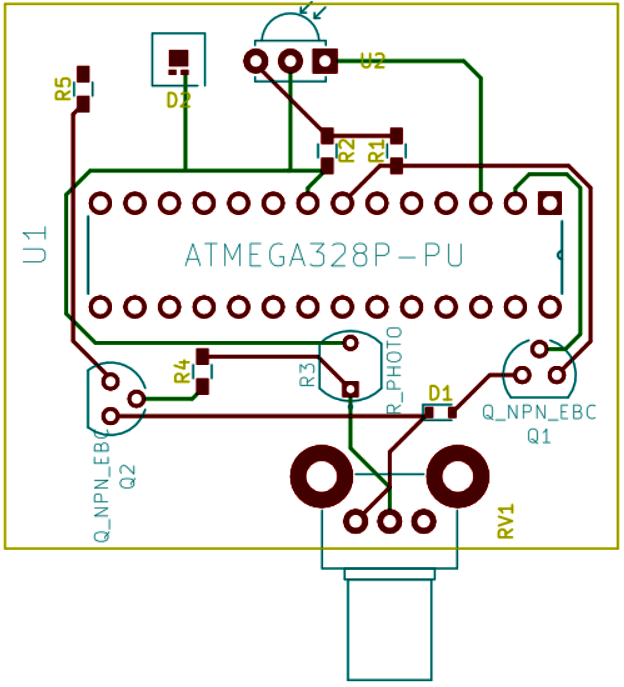

Spark-Night-Light PCB layout, top view — open source AVR/Arduino board by hollowmaster1496

About the Spark-Night-Light PCB

Spark-Night-Light is an open source AVR/Arduino PCB design by hollowmaster1496, published on GitHub. It is a 2-layer board measuring 45 × 40 mm, with 12 components from 11 distinct parts.

Its main chip is the ATMEGA328P-PU, from the AVR/Arduino family. Other key parts include the TSOP382xx. By type, the board carries 5 resistors, 2 ICs, 2 transistors and 2 diodes.

From the project

electronic circuit for night light

The Spark Night Light is an electronic circuit that turns on an LED in dim lighting conditions.

Below is a simple demonstration of the LED turning on as all ambient lights in the room are turned off.

Spark-Night-Light, from the project README
From the project README

Main components on the Spark-Night-Light

ATMEGA328P-PUTSOP382xx

Spark-Night-Light bill of materials (BOM)

12 components, 11 distinct parts.

QtyPartRefs
1
ATMEGA328P-PU
U1
1
TSOP382xx
U2
2
Q_NPN_EBC
Q1, Q2
1
POT
RV1
1
D
D1
1
LED
D2
1
0K1
R1
1
0K2
R2
1
R_PHOTO
R3
1
20K
R4
1
0K5
R5

Spark-Night-Light design files

The KiCad project lives in the hollowmaster1496/Spark-Night-Light repository on GitHub; these links point at the commit this page was built from.

Spark-Night-Light: common questions

What microcontroller does the Spark-Night-Light use?

The Spark-Night-Light is built around the ATMEGA328P-PU, from the AVR/Arduino family.

How big is the Spark-Night-Light PCB?

The Spark-Night-Light measures 45 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Spark-Night-Light?

12 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Spark-Night-Light design files?

From the hollowmaster1496/Spark-Night-Light repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Spark-Night-Light design in my own project?

The repository has no license, so all rights stay with hollowmaster1496. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Spark-Night-Light without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
