Template PCB layout, top view — open source board by HoodPaul

About the Template PCB

Template is an open source PCB design by HoodPaul, published on GitHub. It is a 2-layer board measuring 108 × 31.8 mm, with 17 components from 4 distinct parts.

Other key parts include the HY5118160BJC-60 and 16Mx4-FPM. By type, the board carries 9 ICs and 8 capacitors.

It belongs with the retro computing designs in this gallery.

From the project

A common PCB for 4 MB single-sided and 8 MB double-sided 5 V FPM SIMMs, developed for Amiga 4000 motherboard memory configurations. Current revision: A7.

A common PCB for 4 MB single-sided and 8 MB double-sided 5 V FPM SIMMs, developed for Amiga 4000 motherboard memory configurations. Current revision: A7.

The project began with a wish to make RAM that visually matches Re-Amiga systems: black PCB, white silkscreen and gold contacts and exposed pads. It is a collaboration between Paul of UK Computing Limited, Jon of JMC Electronics and AI assistance through Codex.

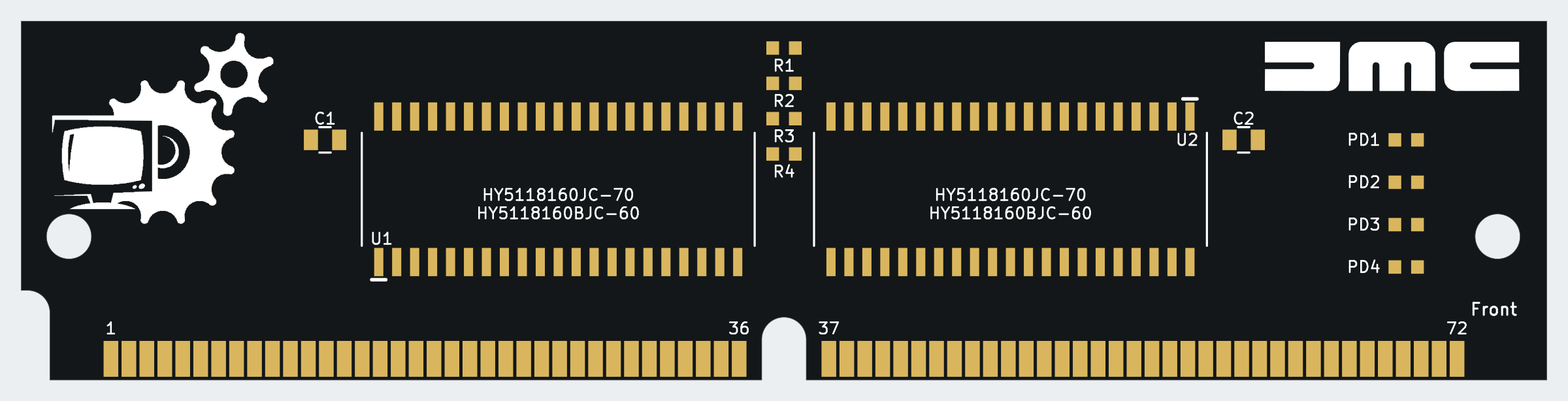

Template, from the project README
From the project README

Main components on the Template

HY5118160BJC-6016Mx4-FPM

Template bill of materials (BOM)

17 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
HY5118160BJC-60
72p-SIMM
U1
1
HY5118160BJC-60
16Mx4-FPM
U2
7
16Mx4-FPM
U3, U4, U5, U6, U7, U8, U9
8
C_Small
C1, C2, C3, C4, C5, C6, C7, C8

Template design files

The KiCad project lives in the HoodPaul/amiga-72pin-fpm-simm repository on GitHub; these links point at the commit this page was built from.

Template: common questions

How big is the Template PCB?

The Template measures 108 × 31.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Template?

17 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Template design files?

From the HoodPaul/amiga-72pin-fpm-simm repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Template design in my own project?

The repository has no license, so all rights stay with HoodPaul. Use it as a reference, and ask the author before reusing the design.
