LedMatrixGame PCB layout, top view — open source AVR/Arduino board by hotkeysoft

About the LedMatrixGame PCB

LedMatrixGame is an open source AVR/Arduino PCB design by hotkeysoft, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 100 mm, with 72 components from 18 distinct parts.

Its main chip is the ATmega328PB-AU, from the AVR/Arduino family. By type, the board carries 53 diodes, 7 switches, 5 capacitors, 3 resistors, 1 IC and 1 crystal.

It belongs with the displays & leds designs in this gallery.

From the project

LED Matrix Game (TMS1400 emulator running on ATmega328PB)

The microcontroller runs a TMS1000-series emulator I made.

The Split Second game (by Parker Brothers) TMS1400 ROM is loaded on the emulator.

Images ============ |Front | Back | |------------------------------------------------------|---------------------------------------------------| |||

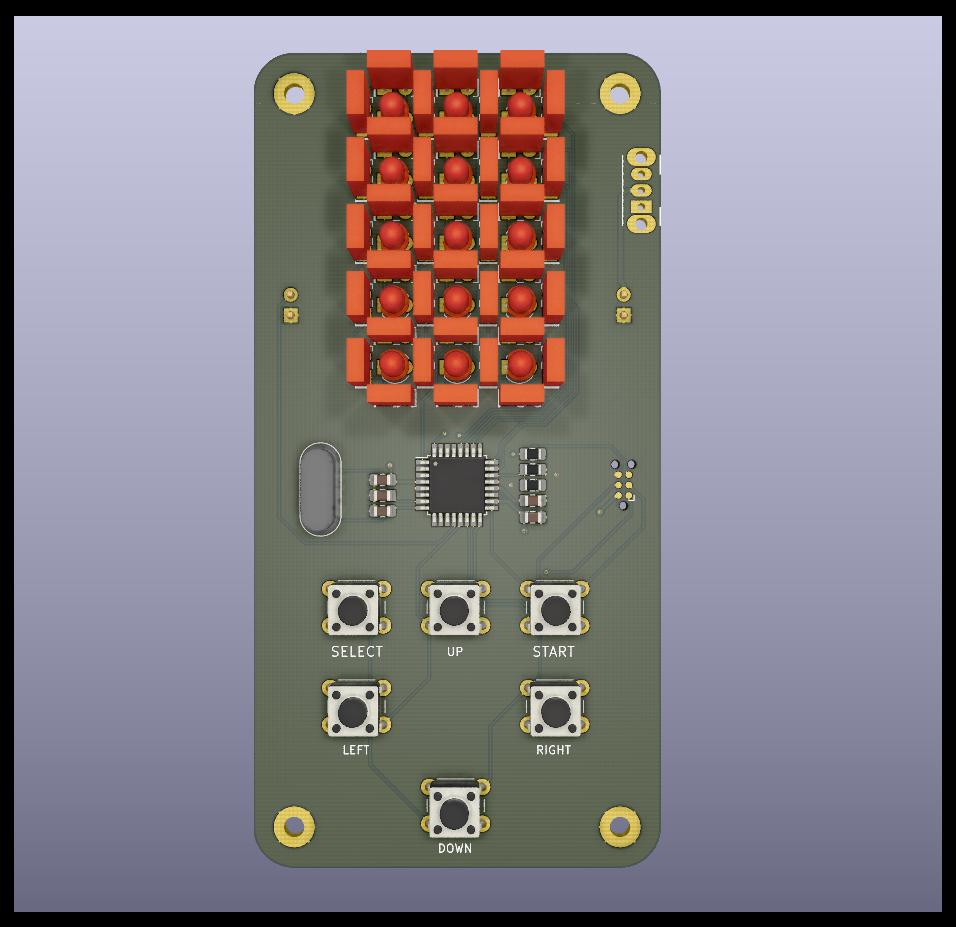

LedMatrixGame, from the project README
From the project README

Main components on the LedMatrixGame

ATmega328PB-AU

LedMatrixGame bill of materials (BOM)

72 components, 18 distinct parts.

QtyPartRefs
1
ATmega328PB-AU
U1
1
12MHz
Y1
1
BATTERY
J1
1
SPEAKER
LS1
1
START
SW1
1
SELECT
SW2
1
UP
SW3
1
LEFT
SW4
1
RIGHT
SW5
1
DOWN
SW6
1
POWER
SW7
38
~
D1, D2, D3, D4, D6, D8, D10, D11 +30
15
~
D5, D7, D9, D15, D17, D19, D25, D27 +7
3
100nF
C1, C2, C3
2
18pF
C4, C5
1
10K
R1
1
330K
R2
1
100K
R3

LedMatrixGame design files

The KiCad project lives in the hotkeysoft/ledMatrixGame-kicad repository on GitHub; these links point at the commit this page was built from.

LedMatrixGame: common questions

What microcontroller does the LedMatrixGame use?

The LedMatrixGame is built around the ATmega328PB-AU, from the AVR/Arduino family.

How big is the LedMatrixGame PCB?

The LedMatrixGame measures 50 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LedMatrixGame?

72 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the LedMatrixGame design files?

From the hotkeysoft/ledMatrixGame-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the LedMatrixGame design in my own project?

Yes, under the terms of its MIT license, which hotkeysoft chose for the repository.

Can I test firmware for the LedMatrixGame without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
