Bakeneko-60

hsaito18·mini-keyboard·bakeneko-60-develop/pcb/bakeneko-60-pcb.kicad_pcb

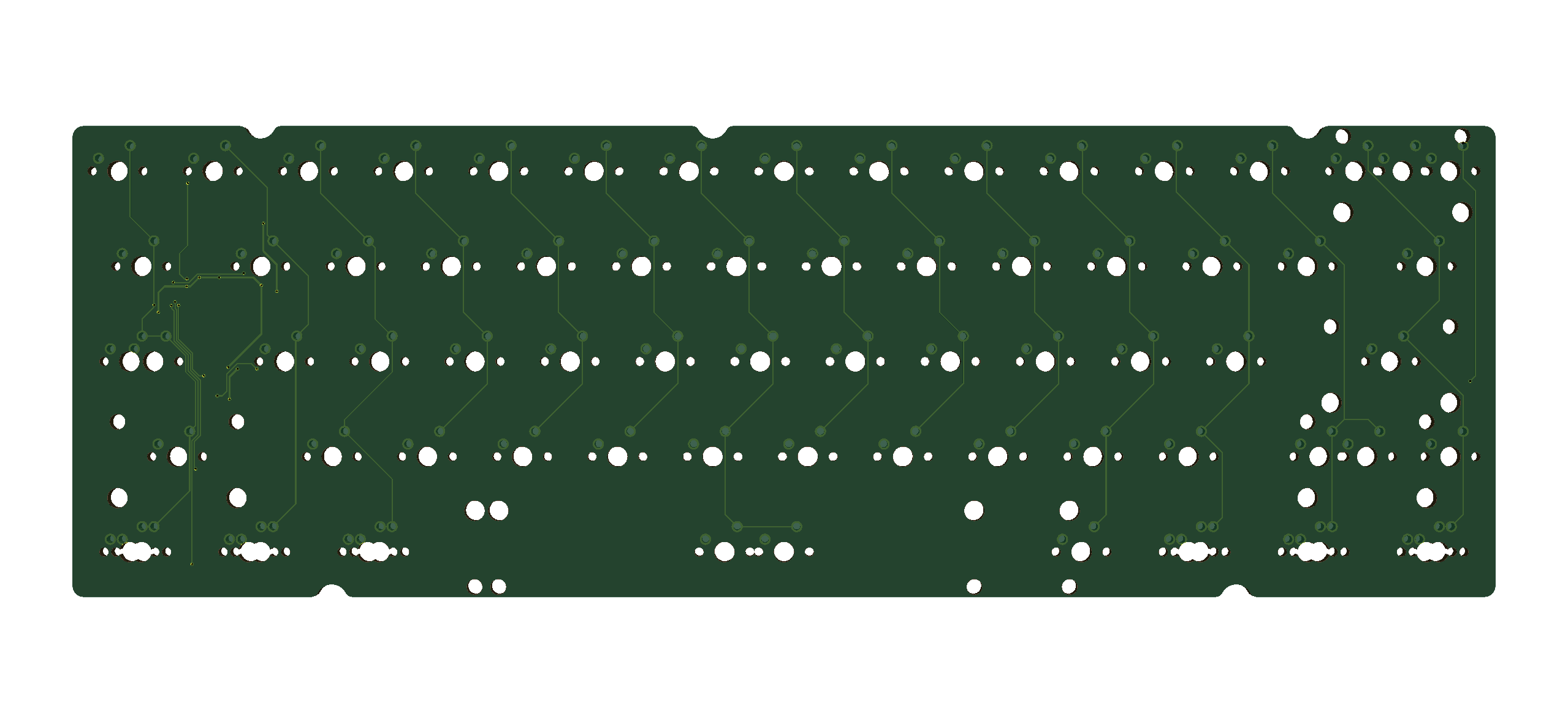

Bakeneko-60 PCB layout, top view — open source AVR/Arduino board by hsaito18

About the Bakeneko-60 PCB

Bakeneko-60 is an open source AVR/Arduino PCB design by hsaito18, published on GitHub. It is a 2-layer board measuring 284.7 × 94.2 mm, with 153 components from 22 distinct parts.

Its main chip is the C44854, from the AVR/Arduino family. Other key parts include the C85364. By type, the board carries 73 LEDs, 63 diodes, 7 capacitors, 4 resistors, 2 ICs and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

Building a 4x4 macro keyboard using left-over Cherry MX Red key switches and left-over keycaps. Will use AT90USB1286 microcontroller, since the typical ATMega microcontroller is unavailable.

Bakeneko-60, from the project README
From the project README

Main components on the Bakeneko-60

C85364C44854

Bakeneko-60 bill of materials (BOM)

153 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C85364
SRV05-4
U1
1
C44854
ATmega32U4-AU
U2
1
C13738
16MHz
Y1
1
C160404
JST SH 4-pin
J1
1
C70076
500mA
F1
1
C318884
Reset
SW1
51
1u
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +43
1
2u
MX16
6
1.5U
1.5u
MX17, MX30, MX67, MX69, MX71, MX73
8
1.25U
1.25u
MX31, MX59, MX60, MX61, MX63, MX64, MX65, MX66
2
1.75U
1.75u
MX32, MX56
2
2.25U
2.25u
MX44, MX45
1
2.75U
2.75u
MX58
1
6.25U
6.25u
MX62
1
7u
MX70
63
C81598
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +55
3
C49678
0.1u
C1, C2, C3
1
C15850
10u
C4
2
C1804
22p
C5, C7
1
C28323
1u
C6
Show 2 more
QtyPartRefs
2
C17561
22
R1, R2
2
C17414
10k
R3, R4

Bakeneko-60 design files

The KiCad project lives in the hsaito18/mini-keyboard repository on GitHub; these links point at the commit this page was built from.

Bakeneko-60: common questions

What microcontroller does the Bakeneko-60 use?

The Bakeneko-60 is built around the C44854, from the AVR/Arduino family.

How big is the Bakeneko-60 PCB?

The Bakeneko-60 measures 284.7 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bakeneko-60?

153 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Bakeneko-60 design files?

From the hsaito18/mini-keyboard repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Bakeneko-60 design in my own project?

The repository has no license, so all rights stay with hsaito18. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bakeneko-60 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
