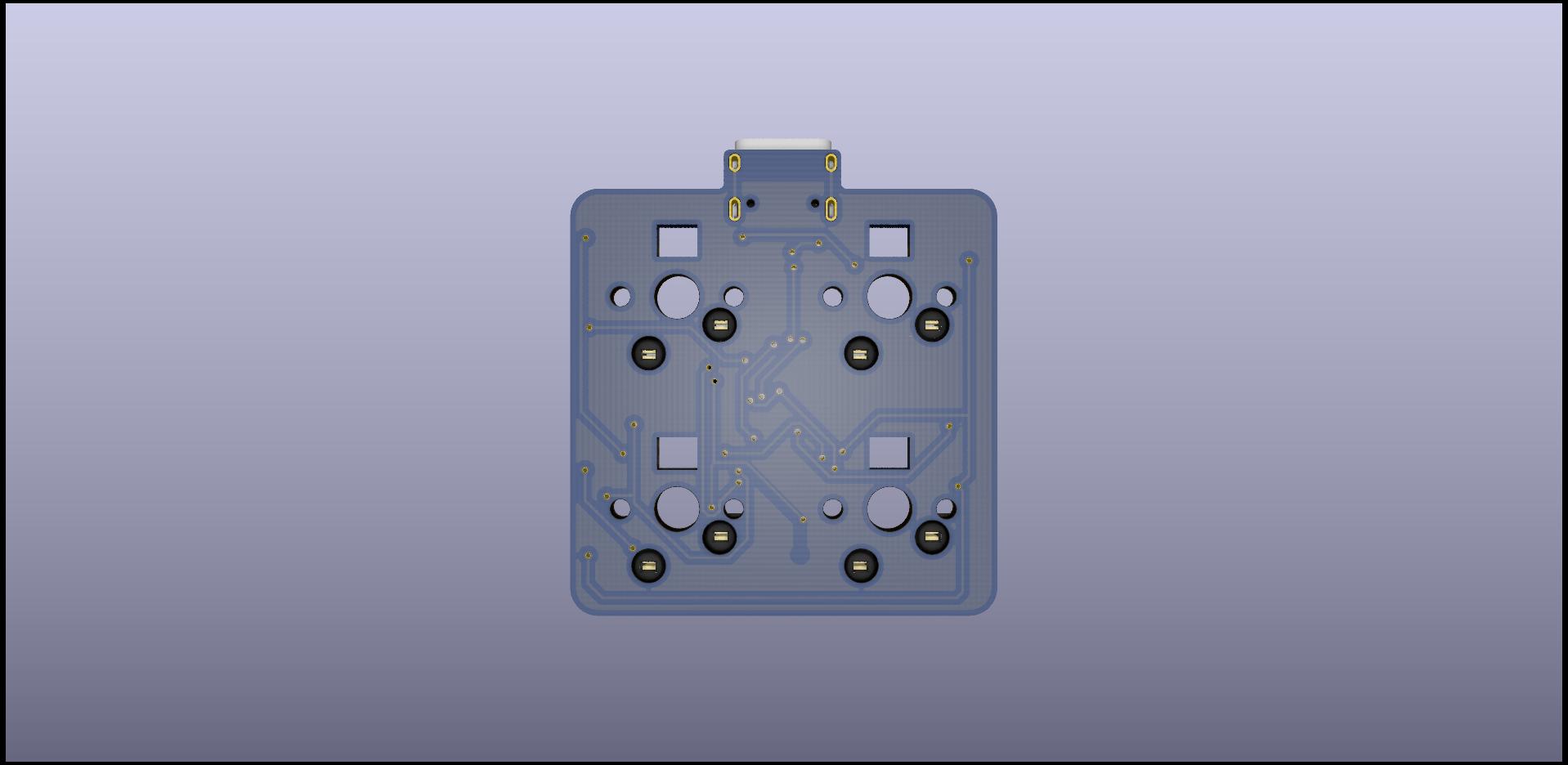

Pico04 PCB layout, top view — open source AVR/Arduino board by HumphreyKwok

About the Pico04 PCB

Pico04 is an open source AVR/Arduino PCB design by HumphreyKwok, published on GitHub under the MIT license. It is a 2-layer board measuring 38.3 × 41.8 mm, with 33 components from 17 distinct parts.

Its main chip is the ATmega16U2-MU, from the AVR/Arduino family. Other key parts include the PRTR5V0U2X. By type, the board carries 6 resistors, 5 capacitors, 4 diodes, 2 ICs, 1 crystal and 1 fuse.

It belongs with the keyboards designs in this gallery.

From the project

A 4-key pad for fun

ai03's wiki and PCB : https://wiki.ai03.me/books/pcb-design

coseyfannitutti's github : https://github.com/coseyfannitutti

Hadi's Youtube Channel and machanical keyboard design tutorials : https://youtu.be/BhFqkVggv8Q

Pico04, from the project README
From the project README

Main components on the Pico04

PRTR5V0U2XATmega16U2-MU

Pico04 bill of materials (BOM)

33 components, 17 distinct parts.

QtyPartRefs
1
PRTR5V0U2X
U1
1
ATmega16U2-MU
U2
1
16MHz
Y1
4
0.1uF
CRGB1, CRGB2, CRGB3, CRGB4
1
500mA
F1
4
MX-NoLED
MX1, MX2, MX3, MX4
4
WS2812B
RGB1, RGB2, RGB3, RGB4
1
SW_Push
SW1
1
HRO-TYPE-C-31-M-12
USB1
4
SOD-123
D1, D2, D3, D4
1
1pf
C1
1
10uF
C2
1
0.1uF
C3
2
22pF
C4, C5
2
51k
R1, R2
2
10k
R3, R6
2
22
R4, R5

Pico04 design files

The KiCad project lives in the HumphreyKwok/pico04 repository on GitHub; these links point at the commit this page was built from.

Pico04: common questions

What microcontroller does the Pico04 use?

The Pico04 is built around the ATmega16U2-MU, from the AVR/Arduino family.

How big is the Pico04 PCB?

The Pico04 measures 38.3 × 41.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico04?

33 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pico04 design files?

From the HumphreyKwok/pico04 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pico04 design in my own project?

Yes, under the terms of its MIT license, which HumphreyKwok chose for the repository.

Can I test firmware for the Pico04 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
