Palm

hutscape·palm·pcb/Palm.kicad_pcb

Palm PCB layout, top view — open source Nordic nRF board by hutscape
Simulate this board

About the Palm PCB

Palm is an open source Nordic nRF PCB design by hutscape, published on GitHub under the MIT license. It is a 2-layer board measuring 29.8 × 70.5 mm, with 11 components from 8 distinct parts.

Its main chip is the 3406, from the Nordic nRF family. Other key parts include the 3964. By type, the board carries 4 resistors, 2 ICs, 2 switches, 1 transistor, 1 connector and 1 diode.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

🌴 Outdoor BLE-connected UV sensor keychain 🗝

Visit hutscape.com/palm for more details.

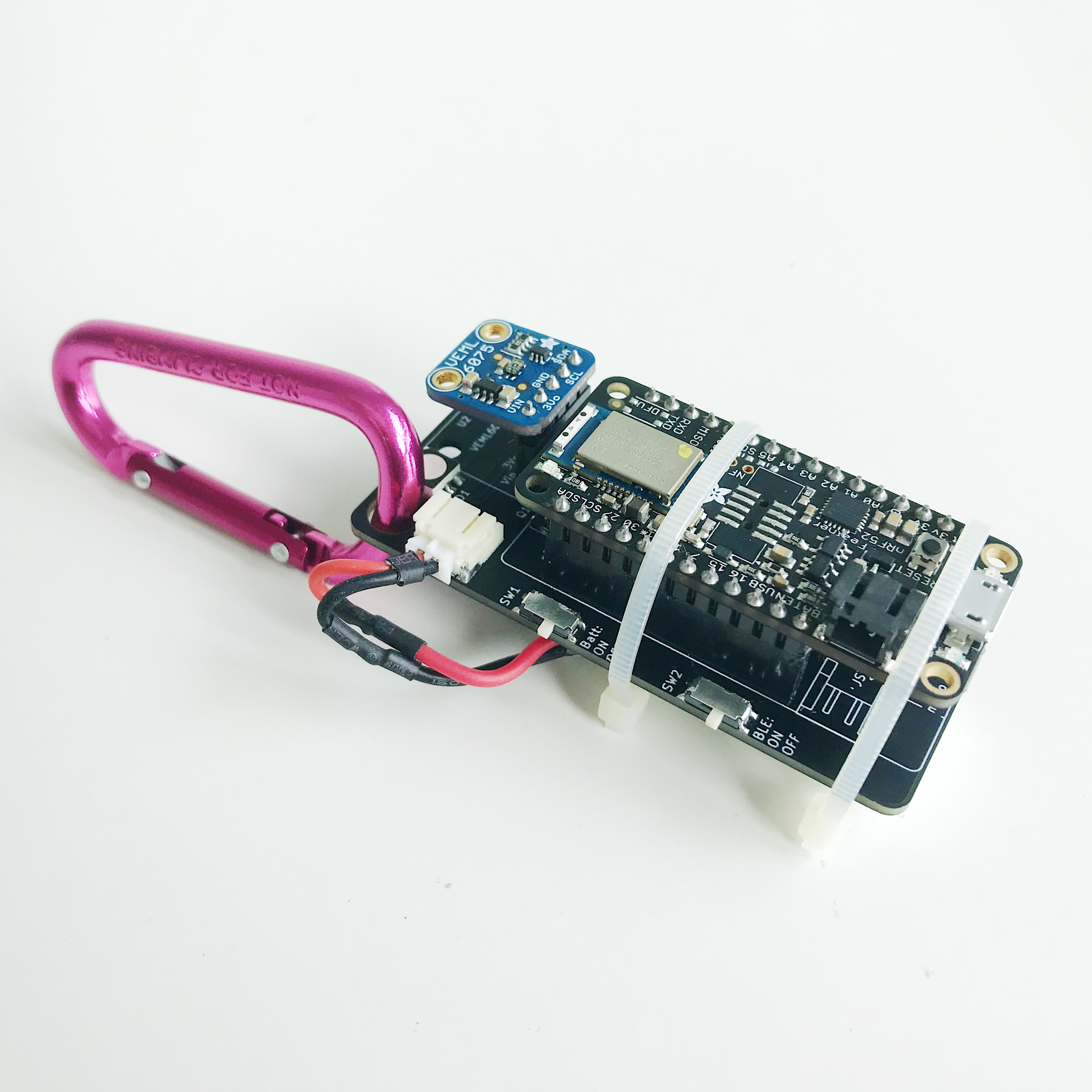

Palm, from the project README
From the project README

Main components on the Palm

34063964

Palm bill of materials (BOM)

11 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
3406
Adafruit_nRF52_Feather
Adafruit
U1
1
3964
VEML6075_breakout
Adafruit
U2
1
IRLML2246TRPBF
IRLML6402
Infineon
Q1
1
CONN_01X02_FEMALE
Conn_01x02_Female
JST
J1
2
SW_SPDT
SW1, SW2
1
SLV6A-FKB-CK1P1G1BB7R3R3
LED_BARG
Cree
D1
3
1k
R1, R2, R3
1
0R
R4

Palm design files

The KiCad project lives in the hutscape/palm repository on GitHub; these links point at the commit this page was built from.

Palm: common questions

What microcontroller does the Palm use?

The Palm is built around the 3406, from the Nordic nRF family.

How big is the Palm PCB?

The Palm measures 29.8 × 70.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Palm?

11 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Palm design files?

From the hutscape/palm repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Palm design in my own project?

Yes, under the terms of its MIT license, which hutscape chose for the repository.

Can I test firmware for the Palm without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
