Huesful power adaptor
About the Huesful power adaptor PCB
Huesful power adaptor is an open source PCB design by Hypfer, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 72.6 × 24.9 mm, with 6 components from 6 distinct parts.
It belongs with the power & battery designs in this gallery.
From the project

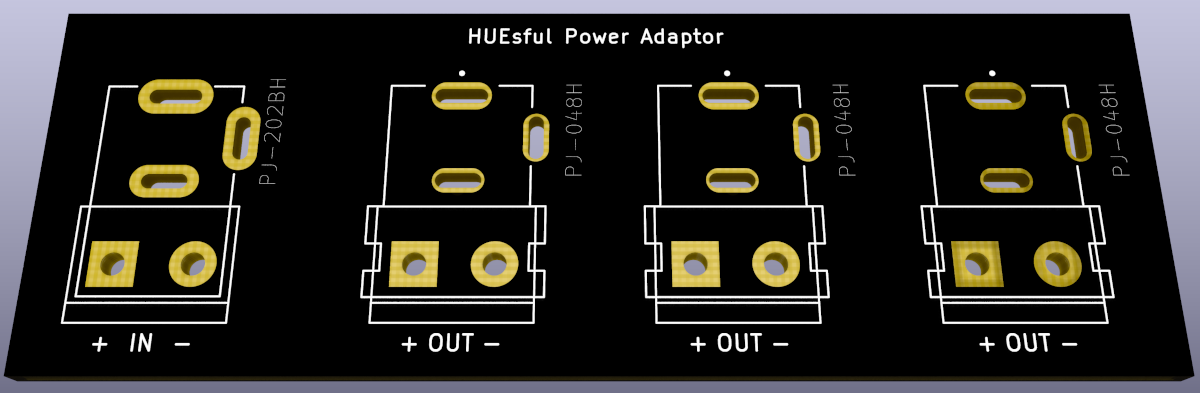

Use proper PSUs with Hue Signes, Playbars and more
Sadly, the original power supply of Signify Philips Hue Playbars, Signe Table Lamps and more isn't particularly great. They often have issues with a constant high-pitched whine and are overall very disappointing for the price tag.
You can't however simply replace it with a better 24V PSU, because Signify is using a gender-swapped borderline-proprietary connector for those. Therefore, this project was born so that people have a better alternative than cutting open their power chords.
Huesful power adaptor bill of materials (BOM)
6 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IN | TerminalBlock_bornier-2_P5.08mm | J5 |
| 1 | OUT 1 | TerminalBlock_bornier-2_P5.08mm | J6 |
| 1 | OUT 2 | TerminalBlock_bornier-2_P5.08mm | J7 |
| 1 | OUT 3 | TerminalBlock_bornier-2_P5.08mm | J8 |
| 1 | PJ-048H | CUI_PJ-048H | PJ-048H |
| 1 | PJ-202BH | CUI_PJ-202BH | PJ-202BH |
Huesful power adaptor design files
The KiCad project lives in the Hypfer/huesful-power-adaptor repository on GitHub; these links point at the commit this page was built from.
Huesful power adaptor: common questions
How big is the Huesful power adaptor PCB?
The Huesful power adaptor measures 72.6 × 24.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Huesful power adaptor?
6 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Huesful power adaptor design files?
From the Hypfer/huesful-power-adaptor repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Huesful power adaptor design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which Hypfer chose for the repository.
