P2000t cartridge reader
About the P2000t cartridge reader PCB
P2000t cartridge reader is an open source AVR/Arduino PCB design by ifilot, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 3 components from 3 distinct parts.
Its main chip is the Arduino_Leonardo_Shield, from the AVR/Arduino family. Other key parts include the 4040. By type, the board carries 1 IC and 1 connector.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

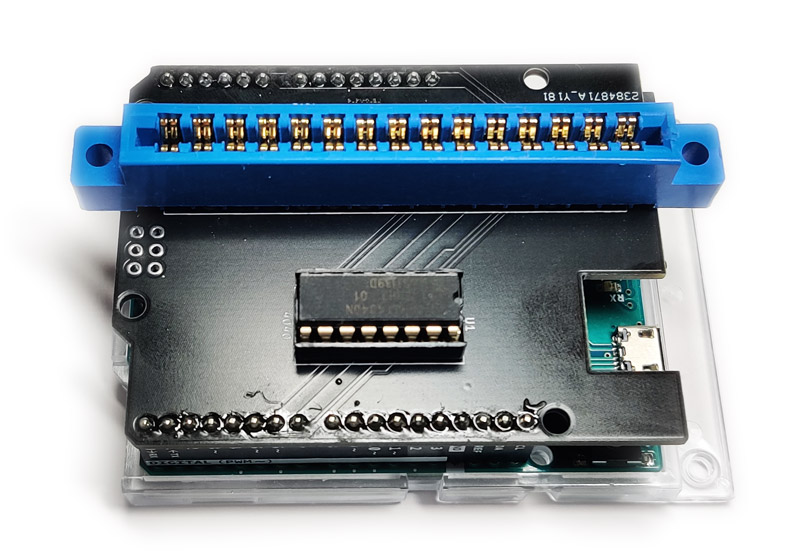

Arduino Leonardo based P2000T Cartridge Reader
This repository contains hard- and software utilities to read P2000T cartridges using an Arduino Leonardo board. The repository is organized as follows. The arduino folder contains the source code for the Arduino Leonardo. In the kicad folder the files can be found for the arduino shield board. Finally, in the script folder a number of Python scripts can be found interfacing with the Arduino Leonardo board to dump cartridge roms to a file.
Main components on the P2000t cartridge reader
P2000t cartridge reader bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4040 | DIP-16_W7.62mm_Socket | U1 |
| 1 | P2000T_cartridge_edge | EdgeConnector2x15_no_screws | J1 |
| 1 | Arduino_Leonardo_Shield | Arduino_Uno_Shield | XA1 |
P2000t cartridge reader design files
The KiCad project lives in the ifilot/p2000t-cartridge-reader repository on GitHub; these links point at the commit this page was built from.
P2000t cartridge reader: common questions
What microcontroller does the P2000t cartridge reader use?
The P2000t cartridge reader is built around the Arduino_Leonardo_Shield, from the AVR/Arduino family.
How big is the P2000t cartridge reader PCB?
The P2000t cartridge reader measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the P2000t cartridge reader?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the P2000t cartridge reader design files?
From the ifilot/p2000t-cartridge-reader repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the P2000t cartridge reader design in my own project?
Yes, under the terms of its GPL-3.0 license, which ifilot chose for the repository.
Can I test firmware for the P2000t cartridge reader without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
