About the MotionSense-IMU PCB

MotionSense-IMU is an open source PCB design by igilarranz, published on GitHub. It is a 2-layer board measuring 35.4 × 27.5 mm, with 12 components from 8 distinct parts.

Other key parts include the AP2112K-3.3 and LSM6DSM. By type, the board carries 4 capacitors, 4 resistors, 2 ICs and 2 connectors.

It belongs with the sensors, dev boards & breakouts and test & measurement designs in this gallery.

From the project

2-layer USB-C powered LSM6DSM IMU breakout board designed in KiCad

MotionSense IMU is a custom 2-layer PCB built around the ST LSM6DSM 6-axis accelerometer and gyroscope.

The board takes 5 V from USB-C, regulates it to 3.3 V, and breaks out the IMU's I2C interface and interrupt signal through a 5-pin header.

LSM6DSM 6-axis accelerometer + gyroscope AP2112K-3.3 LDO regulator USB-C 5 V input 4.7 kΩ pull-up resistors on SDA and SCL Decoupling capacitors for the regulator and IMU 5-pin interface header 2-layer PCB Board size: approximately 35 mm × 27 mm

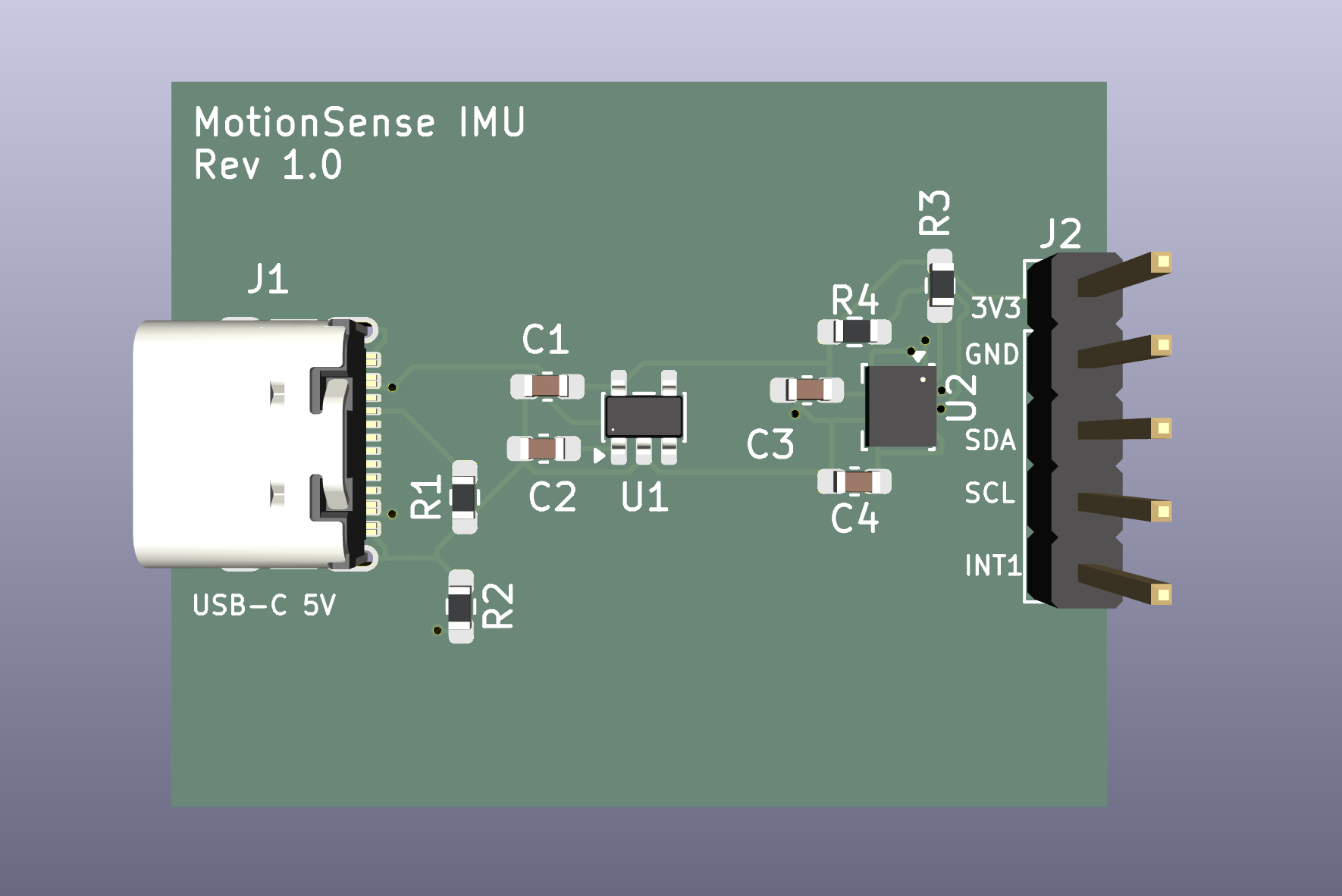

MotionSense-IMU, from the project README
From the project README

Main components on the MotionSense-IMU

AP2112K-3.3LSM6DSM

MotionSense-IMU bill of materials (BOM)

12 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2112K-3.3
U1
1
LSM6DSM
U2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
CONN_01X05
Conn_01x05
J2
2
1UF
1uF
C1, C2
2
100NF
100nF
C3, C4
2
5.1K
5.1k
R1, R2
2
4.7K
4.7k
R3, R4

MotionSense-IMU design files

The KiCad project lives in the igilarranz/MotionSense-IMU repository on GitHub; these links point at the commit this page was built from.

MotionSense-IMU: common questions

How big is the MotionSense-IMU PCB?

The MotionSense-IMU measures 35.4 × 27.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MotionSense-IMU?

12 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MotionSense-IMU design files?

From the igilarranz/MotionSense-IMU repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MotionSense-IMU design in my own project?

The repository has no license, so all rights stay with igilarranz. Use it as a reference, and ask the author before reusing the design.
