Tige-TAPS2 PCB layout, top view — open source RP2040/RP2350 board by ikester1

About the Tige-TAPS2 PCB

Tige-TAPS2 is an open source RP2040/RP2350 PCB design by ikester1, published on GitHub. It is a 2-layer board measuring 63 × 70 mm, with 25 components from 23 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the LM2941CS, CPC5002G, 280384-2 and MB85RC64TA. By type, the board carries 8 resistors, 5 ICs, 4 test points, 2 diodes, 2 capacitors and 1 transistor.

From the project

Replacement for the Lenco "black box" trim controller on older Tige ski boats

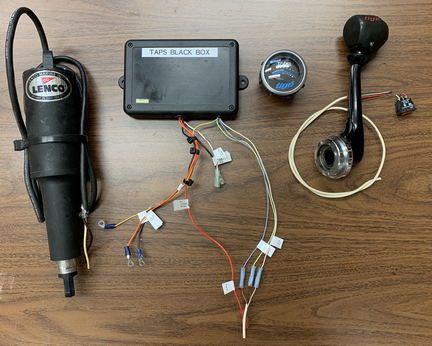

This is a replacement for the original trim controller for an early 2000's Tige 22v wakeboard boat. The electric actuator is made by Lenco, the Tige logo'd trim indicator gauge is probably made by Faria, and the "black box" controller is under the dashboard. The "black box" takes the trim switch input and drives the actuator and gauge. Coupled with a plate on the transom, Tige called the entire system TAPS2.

Tige-TAPS2, from the project README
From the project README

Main components on the Tige-TAPS2

LM2941CSPicoCPC5002G280384-2MB85RC64TA

Tige-TAPS2 bill of materials (BOM)

25 components, 23 distinct parts.

QtyPartRefs
1
LM2941CS
Texas Instruments
U1
1
Pico
Raspberry Pi
U2
1
CPC5002G
IXYS Integrated Circuits Division
U4
1
280384-2
TE Connectivity AMP Connectors
U5
1
MB85RC64TA
Kaga FEI America, Inc
U6
1
2N7000BU
onsemi
Q1
1
V05P14AUTO
Littelfuse Inc.
RV1
1
Reset
TE Connectivity ALCOSWITCH Switches
SW1
1
PTR030V0135-BK
Eaton - Electronics Division
TH1
1
PWR
Keystone Electronics
TP1
1
BAT
Keystone Electronics
TP2
1
GND
Keystone Electronics
TP3
1
SIG
Keystone Electronics
TP4
1
1N5817
onsemi
D1
1
BZX79C3V3
onsemi
D2
1
.01u
KMET
C1
1
100uF
KYOCERA AVX
C2
1
1R0
Stackpole Electronics Inc
R1
1
35K7
Stackpole Electronics Inc
R2
1
5K11 (R1)
Stackpole Electronics Inc
R3
Show 3 more
QtyPartRefs
2
4K7
Stackpole Electronics Inc
R4, R8
1
100
Stackpole Electronics Inc
R5
2
3K0
Stackpole Electronics Inc
R6, R7

Tige-TAPS2 design files

The KiCad project lives in the ikester1/Tige-TAPS2 repository on GitHub; these links point at the commit this page was built from.

Tige-TAPS2: common questions

What microcontroller does the Tige-TAPS2 use?

The Tige-TAPS2 is built around the Pico, from the RP2040/RP2350 family.

How big is the Tige-TAPS2 PCB?

The Tige-TAPS2 measures 63 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tige-TAPS2?

25 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tige-TAPS2 design files?

From the ikester1/Tige-TAPS2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tige-TAPS2 design in my own project?

The repository has no license, so all rights stay with ikester1. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Tige-TAPS2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
