About the Seed75 PCB

Seed75 is an open source RP2040/RP2350 PCB design by ikrishagarwal, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 317.8 × 133.5 mm, with 168 components from 11 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 83 switches, 83 diodes, 1 module and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

A hand crafted 75% mechanical keyboard

A completely hand made 75% mechanical keyboard from PCB to case, even the firmware.

- 75% Layout - Hot Swappable Sockets - Sleep Design - Customizable Push Knob - USB C Port - Detachable Angle Elevation - Sandwich Mount - Wrist Rest

This project is licensed under the AGPL-3.0 License.

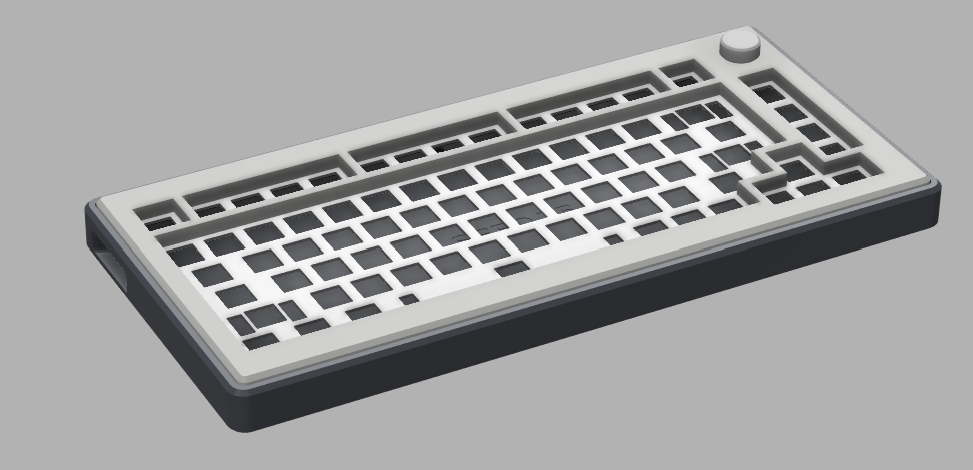

Seed75, from the project README — From the project README

Main components on the Seed75

RaspberryPi_Pico

Seed75 bill of materials (BOM)

168 components, 11 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RaspberryPi_Pico	Raspberry_Pi_Pico	A1
1	CONN_01X06_PIN Conn_01x06_Pin	Wago_734-136_1x06_P3.50mm_Vertical	J1
71	SW_Push	SW_Hotswap_Kailh_MX_Plated_1.00u_With_Switch	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +63
1	RotaryEncoder_Switch	Encoder_EC11_MX_Combo	SW15
1	SW_Push	SW_Hotswap_Kailh_MX_Plated_2.00u_With_Switch	SW29
2	SW_Push	SW_Hotswap_Kailh_MX_Plated_1.50u_With_Switch	SW31, SW44
2	SW_Push	SW_Hotswap_Kailh_MX_Plated_1.75u_With_Switch	SW46, SW71
2	SW_Push	SW_Hotswap_Kailh_MX_Plated_2.25u_With_Switch	SW58, SW60
3	SW_Push	SW_Hotswap_Kailh_MX_Plated_1.25u_With_Switch	SW74, SW75, SW76
1	SW_Push	SW_Hotswap_Kailh_MX_Plated_6.25u_With_Switch	SW77
83	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +75
