About the Orione PCB

Orione is an open source RP2040/RP2350 PCB design by ilBuso, published on GitHub under the MIT license. It is a 2-layer board measuring 319.9 × 119.6 mm, with 127 components from 12 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 63 diodes, 62 switches, 1 module and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Custom RPi pico keyboard with firmware and PCB design

Orione is a custom 60% mechanical keyboard powered by Raspberry Pi Pico.

- About the Project - Key Features - Making It Your Own - What You'll Need - Hardware Components - Software Tools - The PCB - The Chassis - Project layout - Video and Presentation - The Team

The need for a keyboard with a rotary encoder that could be customized without compromising on functionality sparked the creation of this project. When existing options fell short of meeting these requirements, Orione was born: a custom 60% mechanical keyboard powered by the Raspberry Pi Pico, featuring fully customizable firmware…

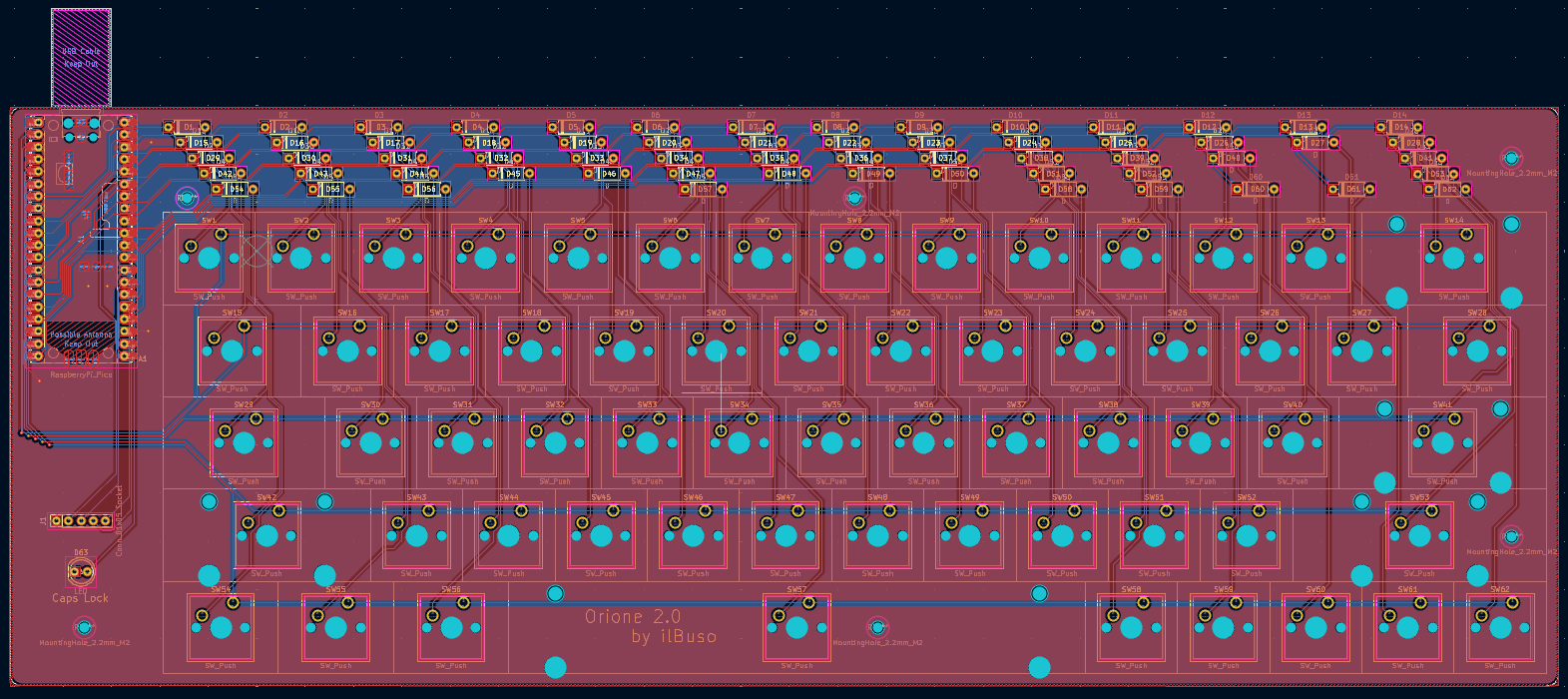

Orione, from the project README — From the project README

Main components on the Orione

RaspberryPi_Pico

Orione bill of materials (BOM)

127 components, 12 distinct parts.

Qty	Part	Footprint	Refs
1	RaspberryPi_Pico	RaspberryPi_Pico_Common_Unspecified	A1
1	Conn_01x05_Socket	PinSocket_1x05_P2.54mm_Vertical	J1
51	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +43
1	SW_Push	SW_Cherry_MX_2.00u_PCB	SW14
2	SW_Push	SW_Cherry_MX_1.50u_PCB	SW15, SW28
1	SW_Push	SW_Cherry_MX_1.75u_PCB	SW29
2	SW_Push	SW_Cherry_MX_2.25u_PCB	SW41, SW42
1	SW_Push	SW_Cherry_MX_2.75u_PCB	SW53
3	SW_Push	SW_Cherry_MX_1.25u_PCB	SW54, SW55, SW56
1	SW_Push	SW_Cherry_MX_6.25u_PCB	SW57
62	D	D_A-405_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +54
1	LED	LED_D5.0mm	D63

Orione design files

The KiCad project lives in the ilBuso/Orione repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/orione-v2/orione-v2.kicad_pcb
Schematicpcb/orione-v2/orione-v2.kicad_sch

Orione: common questions

What microcontroller does the Orione use?

The Orione is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Orione PCB?

The Orione measures 319.9 × 119.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Orione?

127 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Orione design files?

From the ilBuso/Orione repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Orione design in my own project?

Yes, under the terms of its MIT license, which ilBuso chose for the repository.

Can I test firmware for the Orione without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
