Disturbance free calling

ImSeanConroy·disturbance-free-calling·PCB/disturbance-free-calling.kicad_pcb

Disturbance free calling PCB layout, top view — open source ESP32 board by ImSeanConroy

About the Disturbance free calling PCB

Disturbance free calling is an open source ESP32 PCB design by ImSeanConroy, published on GitHub under the MIT license. It is a 2-layer board measuring 72.5 × 20 mm, with 22 components from 4 distinct parts.

Its main chip is the MOUDLE14P-SMD-2.54-21X17.8MM, from the ESP32 family. By type, the board carries 10 diodes, 10 capacitors, 1 IC and 1 resistor.

It belongs with the iot & wireless designs in this gallery.

From the project

Minimising disturbances to enable productive remote work. Complete design files and architecture configuration..

Minimising disturbances to enable productive remote work - In today's remote work environment, unintentional interruptions can disrupt productivity and communication. This project aims to solve that challenge by creating an IoT-powered availability indicator that minimizes disturbances during critical work activities such as calls and meetings.

This is version 2.0, building on the foundations of the original version developed in 2020. The initial solution utilized an ESP32 microcontroller based development board to poll the Webex API and display availability using an LED strip.While…

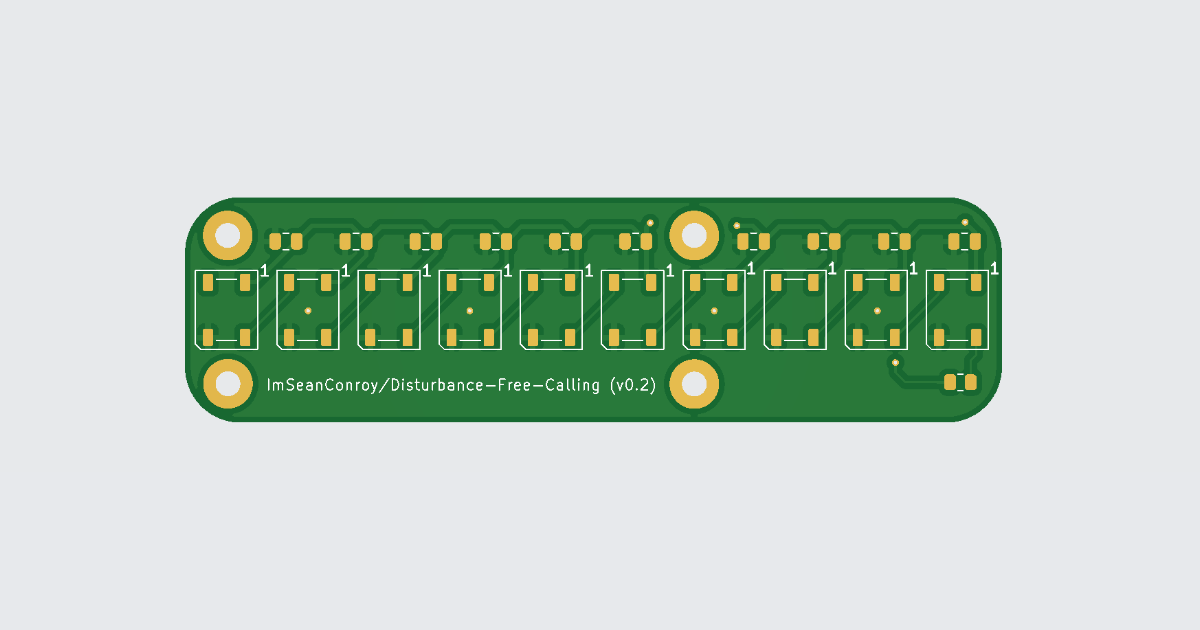

Disturbance free calling, from the project README
From the project README

Main components on the Disturbance free calling

MOUDLE14P-SMD-2.54-21X17.8MM

Disturbance free calling bill of materials (BOM)

22 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE14P-SMD-2.54-21X17.8MM
MOUDLE-SEEEDUINO-XIAO-ESP32C3
U1
10
LED_WS2812B_PLCC4_5.0X5.0MM_P3.2MM
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +2
10
C_0805_2012METRIC
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +2
1
R_0805_2012METRIC
100uF
R1

Disturbance free calling design files

The KiCad project lives in the ImSeanConroy/disturbance-free-calling repository on GitHub; these links point at the commit this page was built from.

Disturbance free calling: common questions

What microcontroller does the Disturbance free calling use?

The Disturbance free calling is built around the MOUDLE14P-SMD-2.54-21X17.8MM, from the ESP32 family.

How big is the Disturbance free calling PCB?

The Disturbance free calling measures 72.5 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Disturbance free calling?

22 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Disturbance free calling design files?

From the ImSeanConroy/disturbance-free-calling repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Disturbance free calling design in my own project?

Yes, under the terms of its MIT license, which ImSeanConroy chose for the repository.

Can I test firmware for the Disturbance free calling without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
