Mad PlantBug

Incomprehensible·Mad_PlantBug·KiCad/Mad_PlantBug.kicad_pcb

Mad PlantBug PCB layout, top view — open source board by Incomprehensible

About the Mad PlantBug PCB

Mad PlantBug is an open source PCB design by Incomprehensible, published on GitHub under the MIT license. It is a 2-layer board measuring 30 × 126.9 mm, with 35 components from 29 distinct parts.

Other key parts include the TMP102AIDRLR, YJ-14015 and TLV333IDBVR. By type, the board carries 15 resistors, 6 capacitors, 4 diodes, 3 ICs, 3 switches and 2 transistors.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

DIY and open source soil moisture sensor 🪴

Low-power capacitive soil moisture sensor with BLE connectivity.

powered via CR2032 coin battery transmits telemetry via BLE measures ambient light and temperature visual indication via LED

Top | Bottom :-------------------------:|:-------------------------: |

This sensor determines the amount of soil moisture by measuring changes in capacitance of the probe submerged in soil.\ Insertable part forms a parasitic coplanar capacitor which uses soil as a dielectric medium.\ As the environment around the capacitor changes depending on whether the soil becomes wetter or drier, so does it…

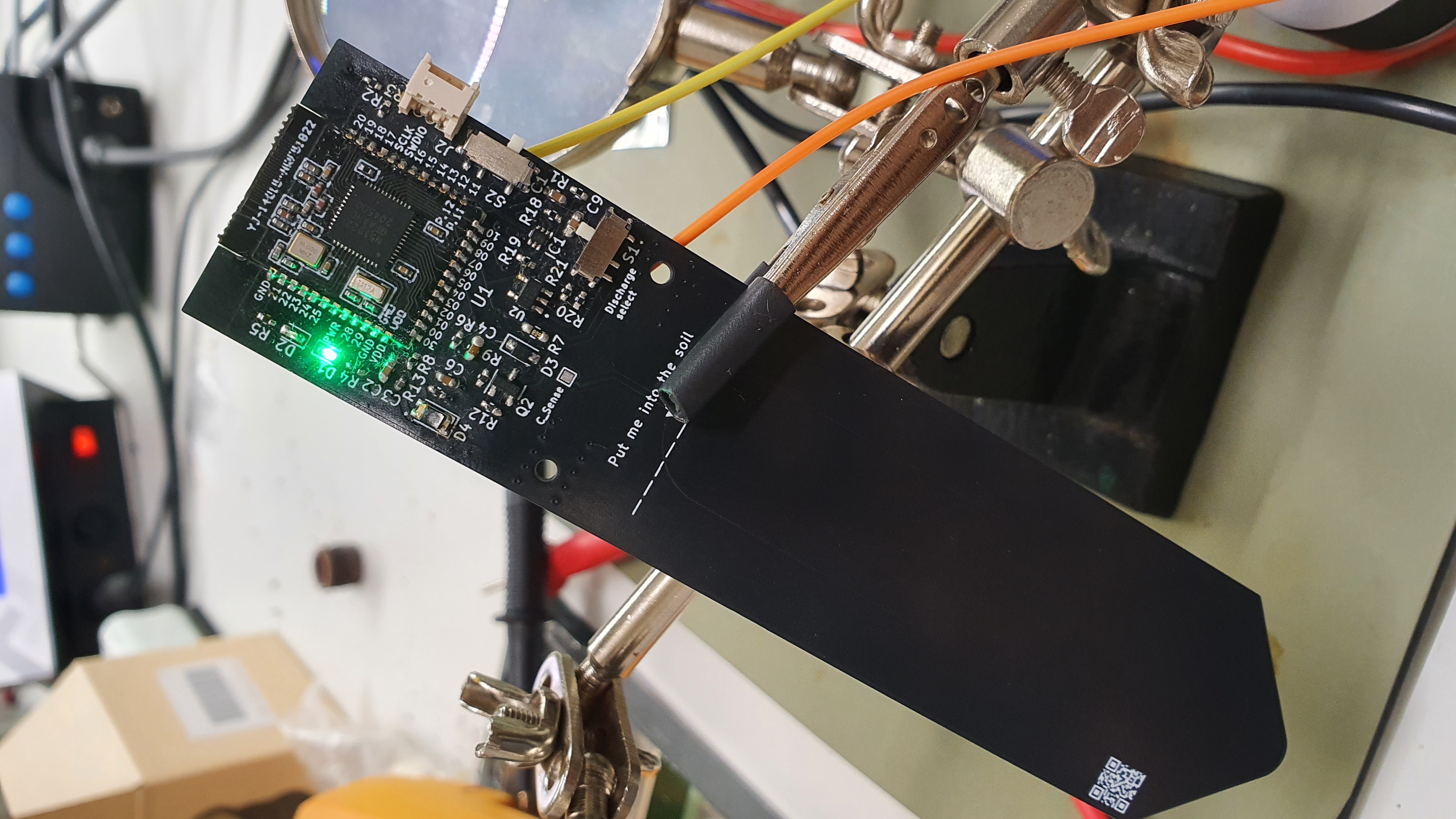

Mad PlantBug, from the project README
From the project README

Main components on the Mad PlantBug

TMP102AIDRLRYJ-14015TLV333IDBVR

Mad PlantBug bill of materials (BOM)

35 components, 29 distinct parts.

QtyPartRefs
1
TMP102AIDRLR
IC1
1
YJ-14015
U1
1
TLV333IDBVR
U2
1
AO3401A
Q1
1
YJL2302B
Q2
1
Conn_01x03
J2
1
MY-2032-08
H1
2
MSK12C02
S1, S2
1
PTS526 SK15 SMTR2 LFS
PTS526
S3
1
PWR_LED
D1
1
ALIVE_LED
D2
1
1N5819WS
D3
1
ALS-PDIC15-21B
D4
1
C_Debounce
C1
1
C_Dec
C2
1
C_extra
C3
1
C_Hold
C4
1
C_Dec
C6
1
C_Bypass
C9
3
R_Pullup
R1, R18, R19
Show 9 more
QtyPartRefs
1
R_Dump
R2
2
R_Pulldown
R3, R12
1
R_Led
R4
2
R_Inrush
R5, R9
1
R_Discharge
R6
1
R_Sense
R7
1
R_protect
R8
1
R_Sense
R13
2
R_Div
R20, R21

Mad PlantBug design files

The KiCad project lives in the Incomprehensible/Mad_PlantBug repository on GitHub; these links point at the commit this page was built from.

Mad PlantBug: common questions

How big is the Mad PlantBug PCB?

The Mad PlantBug measures 30 × 126.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mad PlantBug?

35 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mad PlantBug design files?

From the Incomprehensible/Mad_PlantBug repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Mad PlantBug design in my own project?

Yes, under the terms of its MIT license, which Incomprehensible chose for the repository.
