Stm32l151-board layout, top view — open source STM32 board by infotronic218

About the Stm32l151-board

Stm32l151-board is an open source STM32 PCB design by infotronic218, published on GitHub. It is a 2-layer board measuring 28 × 45 mm, with 52 components from 23 distinct parts.

Its main chip is the STM32L151CCTx, from the STM32 family. Other key parts include the IC-SENSOR-TEMP-HUM-SHT4X, W25Q16JVSNIQ, ADXL343, MCP9701T-E/TT and CH340C. By type, the board carries 18 capacitors, 13 resistors, 7 ICs, 5 diodes, 4 connectors and 2 switches.

It belongs with the sensors designs in this gallery.

From the project

STM32L151 board with sensors for fast code implementation

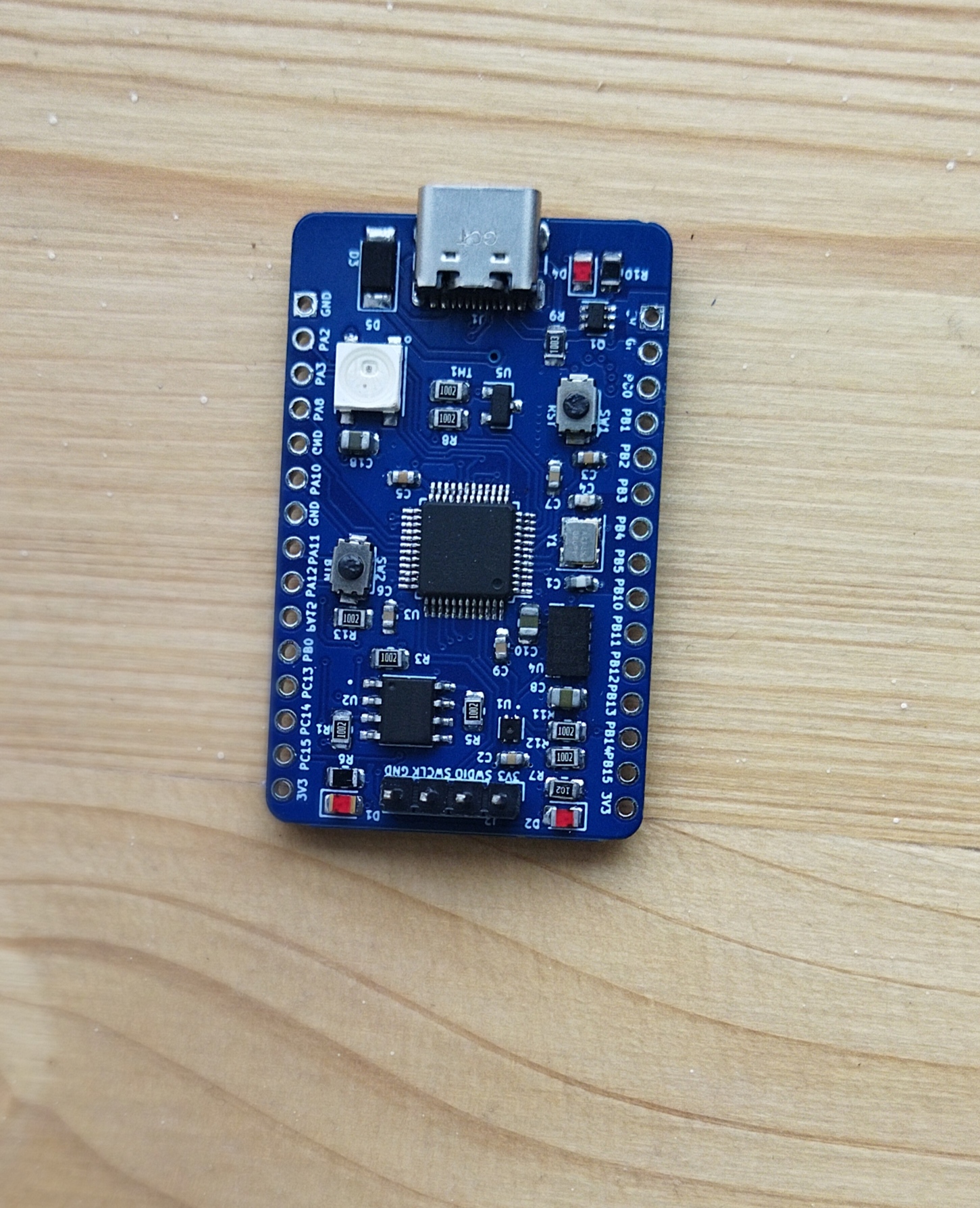

Stm32l151-board, from the project README
From the project README

Main components on the Stm32l151-board

IC-SENSOR-TEMP-HUM-SHT4XW25Q16JVSNIQSTM32L151CCTxADXL343MCP9701T-E/TTCH340CTC1264-3.3VDBTR

Stm32l151-board bill of materials (BOM)

52 components, 23 distinct parts.

QtyPartRefs
1
IC-SENSOR-TEMP-HUM-SHT4X
U1
1
W25Q16JVSNIQ
U2
1
STM32L151CCTx
U3
1
ADXL343
U4
1
MCP9701T-E/TT
U5
1
CH340C
U6
1
TC1264-3.3VDBTR
U7
1
MIC94052YC6-TR
Q1
1
16MHz
Y1
1
CON_USB_GCT_USB4105_REVA
J1
1
PROG
J2
2
PORT
J3, J4
2
SW_Push
SW1, SW2
1
NTC 10K
TH1
3
LED
D1, D2, D4
1
RB060LAM-40TFTR
D3
1
LED-DIGITAL-IN-PI554FCH
D5
2
12pF
C1, C4
8
100nF
C2, C3, C5, C6, C7, C9, C13, C17
8
10uF
C8, C10, C11, C12, C14, C15, C16, C18
Show 3 more
QtyPartRefs
9
10K
R1, R2, R3, R4, R5, R8, R11, R12 +1
3
1.5K
R6, R7, R10
1
100K
R9

Stm32l151-board design files

The KiCad project lives in the infotronic218/stm32l151-board-kicad repository on GitHub; these links point at the commit this page was built from.

Stm32l151-board: common questions

What microcontroller does the Stm32l151-board use?

The Stm32l151-board is built around the STM32L151CCTx, from the STM32 family.

How big is the Stm32l151-board?

The Stm32l151-board measures 28 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32l151-board?

52 components, from 23 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32l151-board design files?

From the infotronic218/stm32l151-board-kicad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Stm32l151-board design in my own project?

The repository has no license, so all rights stay with infotronic218. Use it as a reference, and ask the author before reusing the design.
