About the Chessmate 6530 PCB
Chessmate 6530 is an open source PCB design by inmbolmie, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 50 × 85 mm, with 7 components from 3 distinct parts.
Other key parts include the 74LS00. By type, the board carries 4 capacitors, 2 ICs and 1 resistor.
It belongs with the retro computing designs in this gallery.
From the project

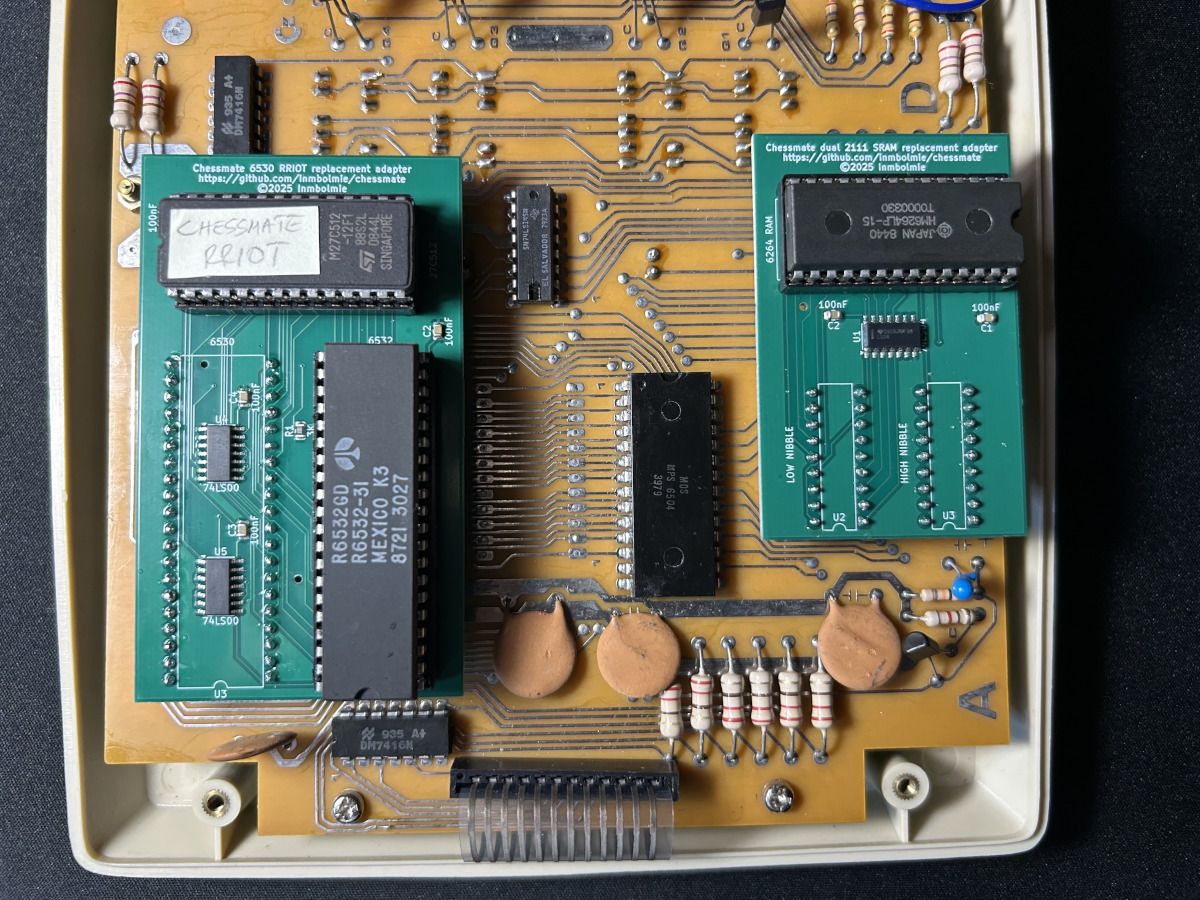

Custom adapters designed to replace the P2111 SRAM and MOS 6530-024 RRIOT vintage chips used in the Commodore Chessmate chess computer.
This repository describes custom boards designed to replace the P2111 SRAM and MOS 6530-024 RRIOT vintage chips used in the Commodore Chessmate chess computer.
The Commodore Chessmate is a vintage chess computer released in 1978 based on MicroChess by Peter Jennings. It was one of the first commercialy available dedicated chess computers. https://www.chessprogramming.org/Commodore_ChessMate
Main components on the Chessmate 6530
Chessmate 6530 bill of materials (BOM)
7 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS00 | SOIC-14_3.9x8.7mm_P1.27mm | U4, U5 |
| 4 | 100NF 100nF | C_0805_2012Metric | C1, C2, C3, C4 |
| 1 | 3K | R_0805_2012Metric | R1 |
Chessmate 6530 design files
The KiCad project lives in the inmbolmie/chessmate repository on GitHub; these links point at the commit this page was built from.
Chessmate 6530: common questions
How big is the Chessmate 6530 PCB?
The Chessmate 6530 measures 50 × 85 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Chessmate 6530?
7 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Chessmate 6530 design files?
From the inmbolmie/chessmate repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Chessmate 6530 design in my own project?
Yes, under the terms of its GPL-3.0 license, which inmbolmie chose for the repository.
