Apex-MUX PCB layout, top view — open source Raspberry Pi board by ishantmahatopro
Simulate this board

About the Apex-MUX PCB

Apex-MUX is an open source Raspberry Pi PCB design by ishantmahatopro, published on GitHub. It is a 2-layer board measuring 274.8 × 130.9 mm, with 90 components from 46 distinct parts.

Its main chip is the RaspberryPi_Pico_W, from the Raspberry Pi family. By type, the board carries 43 switches, 43 diodes, 3 resistors and 1 module.

From the project

A Blackmagic Design DaVinci Resolve Speed Editor with Slide Potentiometers, designed for budget video editors

A custom DaVinci Resolve Speed Editor you can actually build. Mechanical switches, slide pots, and a rotary jog wheel for the fraction of the cost. Starts at ₹13,432 (~$161 USD) instead of the $450 Blackmagic asks for.

I spend way too much time in DaVinci Resolve, and half that time is spent hunting through menus and digging for keyboard shortcuts. The Blackmagic DaVinci Speed Editor looked perfect—until I saw the price tag (₹43,000). That's ridiculous for what's essentially a keyboard with some sliders.

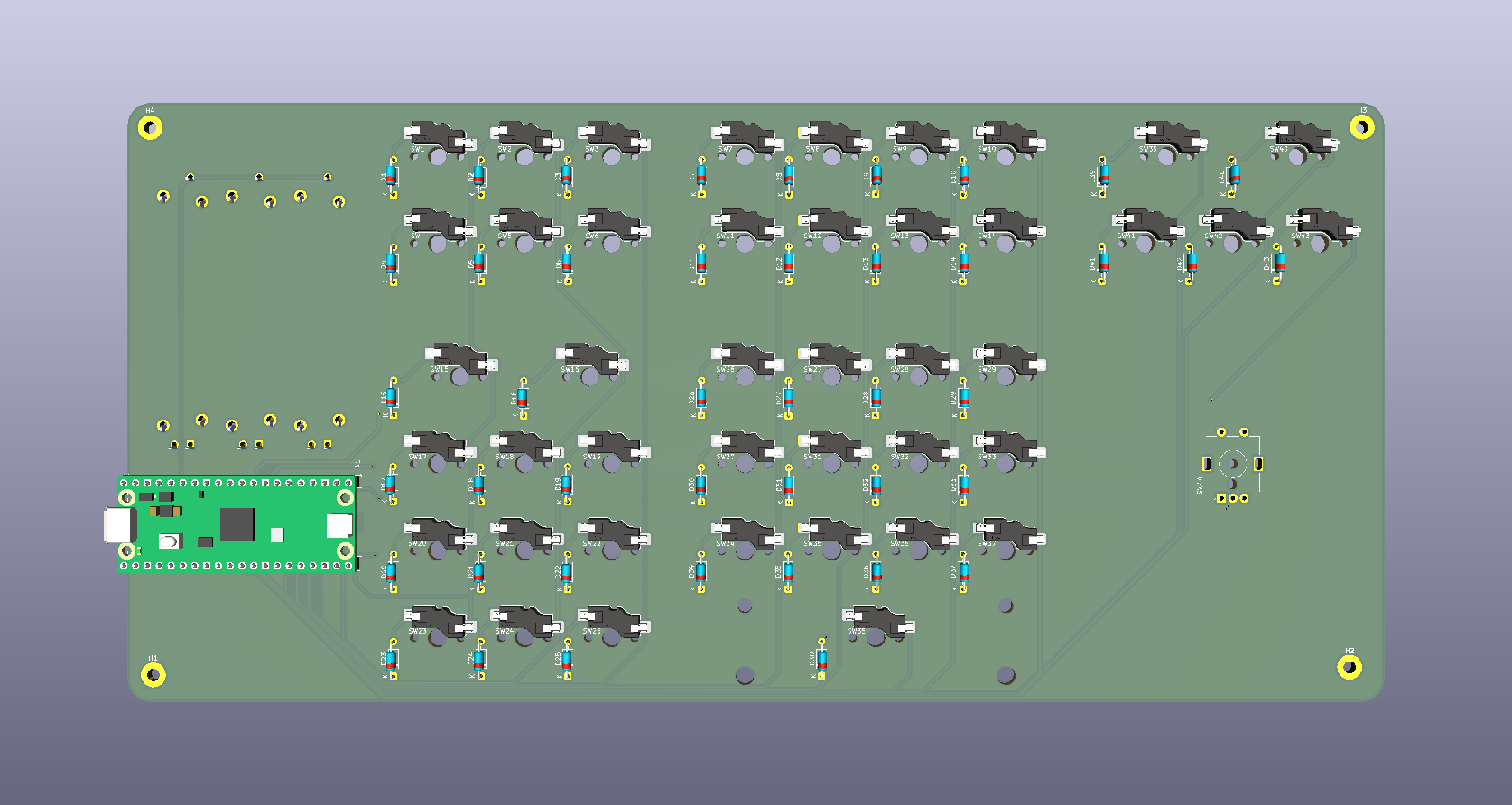

Apex-MUX, from the project README
From the project README

Main components on the Apex-MUX

RaspberryPi_Pico_W

Apex-MUX bill of materials (BOM)

90 components, 46 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RaspberryPi_Pico_W
A1
1
INSERT
SW1
1
APPND
SW2
1
RIPL
SW3
1
CLOSE UP
SW4
1
PLACE ON TOP
SW5
1
SRC
SW6
1
ESC
SW7
1
SYNC
SW8
1
AUDIO
SW9
1
FULL VIEW
SW10
1
TRANS
SW11
1
SPLIT
SW12
1
SNAP
SW13
1
DEL
SW14
1
IN
SW15
1
OUT
SW16
1
TRIM IN
SW17
1
TRIM OUT
SW18
1
ROLL
SW19
Show 26 more
QtyPartRefs
1
SLIP SRC
SW20
1
SLIP DEST
SW21
1
TRANS DUR
SW22
1
CUT
SW23
1
DIS
SW24
1
SMTH CUT
SW25
1
CAM 7
SW26
1
CAM 8
SW27
1
CAM 9
SW28
1
LIVE
SW29
1
CAM 4
SW30
1
CAM 5
SW31
1
CAM 6
SW32
1
VIDEO ONLY
SW33
1
CAM 1
SW34
1
CAM 2
SW35
1
CAM 3
SW36
1
AUDIO ONLY
SW37
1
STOP/PLAY
SW38
1
SOURCE
SW39
1
TIMELINE
SW40
1
SHTL
SW41
1
JOG
SW42
1
SCRL
SW43
43
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +35
3
PTA4543-2015DPB103
R1, R2, R3

Apex-MUX design files

The KiCad project lives in the ishantmahatopro/Apex-MUX repository on GitHub; these links point at the commit this page was built from.

Apex-MUX: common questions

What microcontroller does the Apex-MUX use?

The Apex-MUX is built around the RaspberryPi_Pico_W, from the Raspberry Pi family.

How big is the Apex-MUX PCB?

The Apex-MUX measures 274.8 × 130.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Apex-MUX?

90 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Apex-MUX design files?

From the ishantmahatopro/Apex-MUX repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Apex-MUX design in my own project?

The repository has no license, so all rights stay with ishantmahatopro. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Apex-MUX without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
