8-inch floppy power supply
About the 8-inch floppy power supply PCB
8-inch floppy power supply is an open source PCB design by j-schmidt-eu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 51.5 × 63 mm, with 11 components from 10 distinct parts.
Other key parts include the SPAN02B-05 and SKE10B-05. By type, the board carries 6 capacitors, 3 connectors and 2 ICs.
It belongs with the power & battery designs in this gallery.
From the project

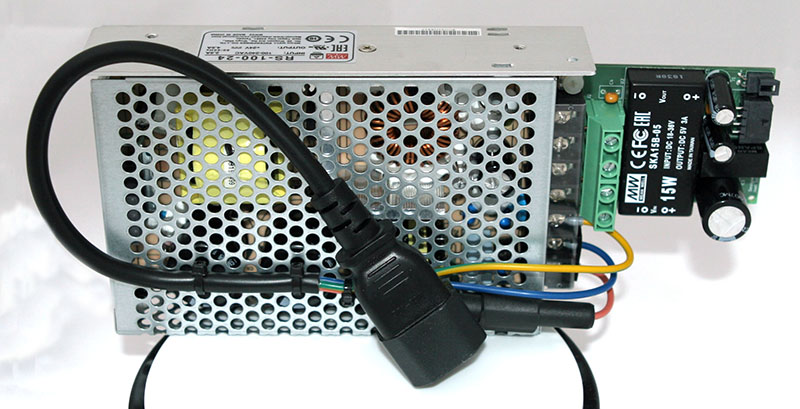

The 8" floppy drive power suplly can be used to power 8-inch floppy disk drives (using a suitable cable).
Some drives required a direct mains AC line connection. Make sure that your drive model is compatible with your mains AC voltage!
_Important: Connecting the wrong mains AC voltage to your drive will destoy it!_
You can search for the right AC and DC cable in the list of drives and/or the list of cables below.
WARNING! RISK OF ELECTRIC SHOCK! Power cable must be unplugged prior to opening the fuse holder!
Main components on the 8-inch floppy power supply
8-inch floppy power supply bill of materials (BOM)
11 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SPAN02B-05 | Converter_DCDC_TRACO_TMR-xxxx_THT | U1 |
| 1 | SKE10B-05 | Converter_DCDC_TRACO_TEN10-xxxx_Single_THT | U2 |
| 1 | AUX | Molex_NanoFit_1x02x2.50mm_Angled | J1 |
| 1 | IN | Degson DG950-9.5-04P-1Y-00AH | J2 |
| 1 | OUT | Molex_Microfit3_Header_02x04_Angled_43045-080x | J3 |
| 1 | 2200u | CP_Radial_D16.0mm_P7.50mm | C3 |
| 1 | 1u | C_Disc_D7.5mm_W4.4mm_P5.00mm | C4 |
| 1 | 470u | CP_Radial_D8.0mm_P3.50mm | C5 |
| 2 | 330n | C_Disc_D5.1mm_W3.2mm_P5.00mm | C6, C8 |
| 1 | 220u | CP_Radial_D8.0mm_P3.50mm | C7 |
8-inch floppy power supply design files
The KiCad project lives in the j-schmidt-eu/8-inch-floppy-power-supply repository on GitHub; these links point at the commit this page was built from.
8-inch floppy power supply: common questions
How big is the 8-inch floppy power supply PCB?
The 8-inch floppy power supply measures 51.5 × 63 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 8-inch floppy power supply?
11 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the 8-inch floppy power supply design files?
From the j-schmidt-eu/8-inch-floppy-power-supply repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the 8-inch floppy power supply design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
