MSXgoauldSD tn20k

jabadiagm·MSXgoauldSD_tn20k·kicad/v1_smd/Sombrero_MSX_Goa'uld.kicad_pcb

MSXgoauldSD tn20k PCB layout, top view — open source board by jabadiagm

About the MSXgoauldSD tn20k PCB

MSXgoauldSD tn20k is an open source PCB design by jabadiagm, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 26.7 × 55.3 mm, with 17 components from 9 distinct parts.

Other key parts include the 74HC373PW, SN74LVC245APWR, SN74HC245PWR and TANG_NANO_20K. By type, the board carries 6 ICs, 6 capacitors, 3 resistors, 1 connector and 1 diode.

It belongs with the retro computing designs in this gallery.

From the project

MSX Goa'uld board with Tang Nano 20k and SD support

MSX2+ engine in Z80 socket. It turns one MSX into an MSX2+ by replacing Z80 processor. FPGA in board contains: Z80 V9958 with hdmi output MSX2+ BIOS SD Card support + Nextor 2.1 4MB mapper 2MB megaram SCC RTC PSG OPLL Kanji Level 1 & 2 * Wifi support using ESP (experimental)

For 240p analog video support for consumer CRTs watch DirectVideo branch

Old boards V1.4 and V4.1 are compatible with Goa'uld SD. V3 is not supported, owners of V3 should use Goa'uld standard firmware (0.80).

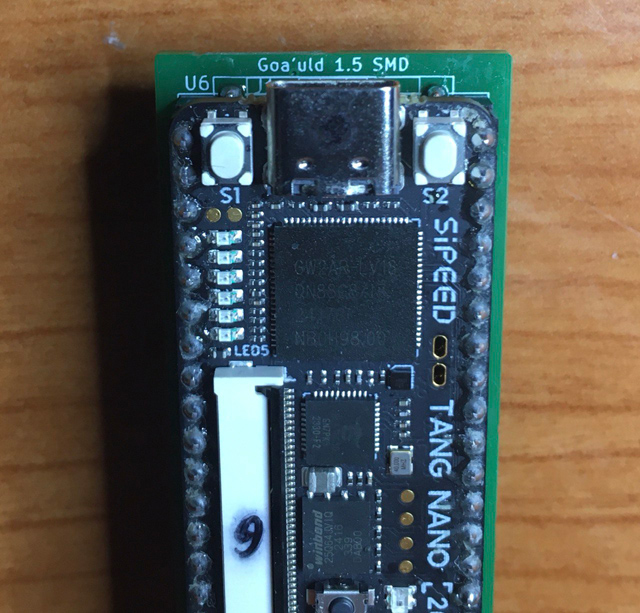

MSXgoauldSD tn20k, from the project README
From the project README

Main components on the MSXgoauldSD tn20k

74HC373PWSN74LVC245APWRSN74HC245PWRTANG_NANO_20K

MSXgoauldSD tn20k bill of materials (BOM)

17 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
74HC373PW
U1, U2
2
SN74LVC245APWR
U3, U4
1
SN74HC245PWR
U5
1
TANG_NANO_20K
Tang_Nano_20k
U6
1
Z80CPU
J1
1
MBR130T1G
D1
6
100N
100n
C1, C2, C3, C4, C5, C6
1
10K
R1
2
R_PACK04
R_Pack04
RN1, RN2

MSXgoauldSD tn20k design files

The KiCad project lives in the jabadiagm/MSXgoauldSD_tn20k repository on GitHub; these links point at the commit this page was built from.

MSXgoauldSD tn20k: common questions

How big is the MSXgoauldSD tn20k PCB?

The MSXgoauldSD tn20k measures 26.7 × 55.3 mm, has 4 copper layers and is 1.06 mm thick.

How many components are on the MSXgoauldSD tn20k?

17 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MSXgoauldSD tn20k design files?

From the jabadiagm/MSXgoauldSD_tn20k repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MSXgoauldSD tn20k design in my own project?

Yes, under the terms of its GPL-3.0 license, which jabadiagm chose for the repository.
