MSXhdmi tn20k

jabadiagm·MSXhdmi_tn20k·kicad/Cartucho_MSX_Tang_Nano_20k_V9958.kicad_pcb

MSXhdmi tn20k PCB layout, top view — open source board by jabadiagm

About the MSXhdmi tn20k PCB

MSXhdmi tn20k is an open source PCB design by jabadiagm, published on GitHub. It is a 2-layer board measuring 101.6 × 65.3 mm, with 12 components from 5 distinct parts.

Other key parts include the SN74LVC245AN and Tang_Nano_20k. By type, the board carries 5 ICs, 5 capacitors, 1 connector and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

Adaptador hdmi para MSX con Tang Nano 20k

Permite conectar un MSX de primera generación a un monitor convencional. La lógica está contenida en una Tang Nano 20K que se encarga de reproducir imagen (vdp) y sonido (psg + fm + scc). Parcialmente compatible con el software MSX2. Adaptación del vdp V9958 escrita por lfantoniosi.

Configuración de sofarun para utilizar scc externa:

https://www.msx.org/forum/msx-talk/hardware/report-konami-scc-standalone-with-sofarun

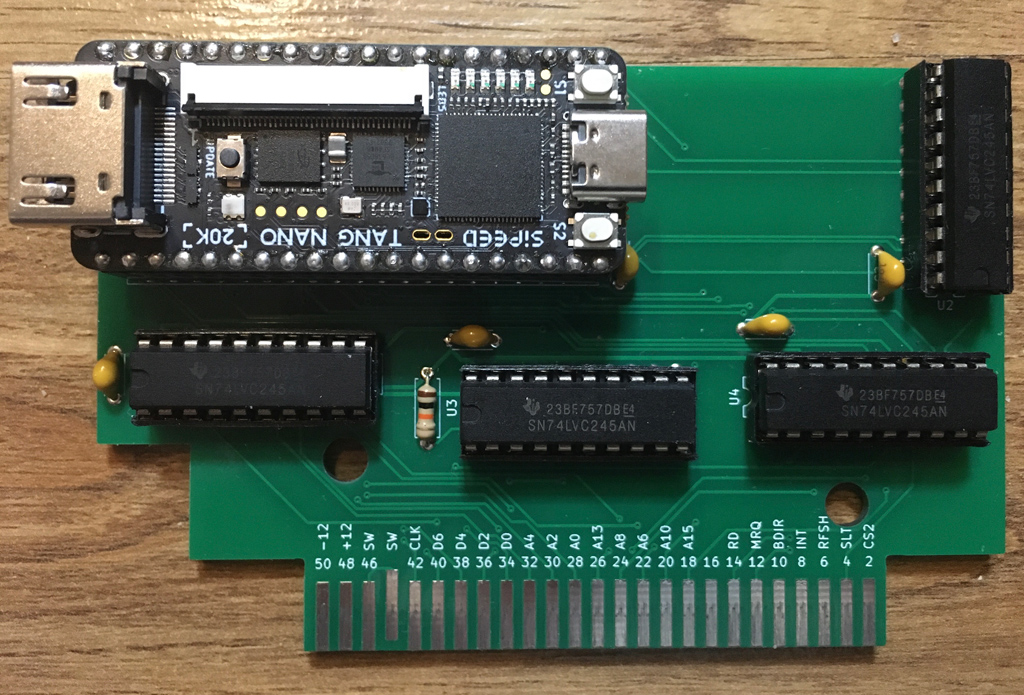

MSXhdmi tn20k, from the project README
From the project README

Main components on the MSXhdmi tn20k

SN74LVC245ANTang_Nano_20k

MSXhdmi tn20k bill of materials (BOM)

12 components, 5 distinct parts.

QtyPartRefs
4
SN74LVC245AN
U1, U2, U3, U4
1
Tang_Nano_20k
U6
1
MSX-CONNECTOR
CON1
5
100n
C1, C2, C3, C4, C6
1
10k
R1

MSXhdmi tn20k design files

The KiCad project lives in the jabadiagm/MSXhdmi_tn20k repository on GitHub; these links point at the commit this page was built from.

MSXhdmi tn20k: common questions

How big is the MSXhdmi tn20k PCB?

The MSXhdmi tn20k measures 101.6 × 65.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MSXhdmi tn20k?

12 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the MSXhdmi tn20k design files?

From the jabadiagm/MSXhdmi_tn20k repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MSXhdmi tn20k design in my own project?

The repository has no license, so all rights stay with jabadiagm. Use it as a reference, and ask the author before reusing the design.
