MSXmapper tn9k

jabadiagm·MSXmapper_tn9k·kicad/t_mapper.kicad_pcb

MSXmapper tn9k PCB layout, top view — open source board by jabadiagm

About the MSXmapper tn9k PCB

MSXmapper tn9k is an open source PCB design by jabadiagm, published on GitHub. It is a 2-layer board measuring 101.6 × 65.3 mm, with 12 components from 5 distinct parts.

Other key parts include the SN74LVC245AN and Tang_Nano_9k. By type, the board carries 5 ICs, 5 capacitors, 1 connector and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

Mapper de 4 MB para MSX

Mapper de 4MB utilizando uno de los bancos de memoria PSRAM de la tang nano 9k. Compatible con dispositivos con un reloj de hasta 4.8 MHz.

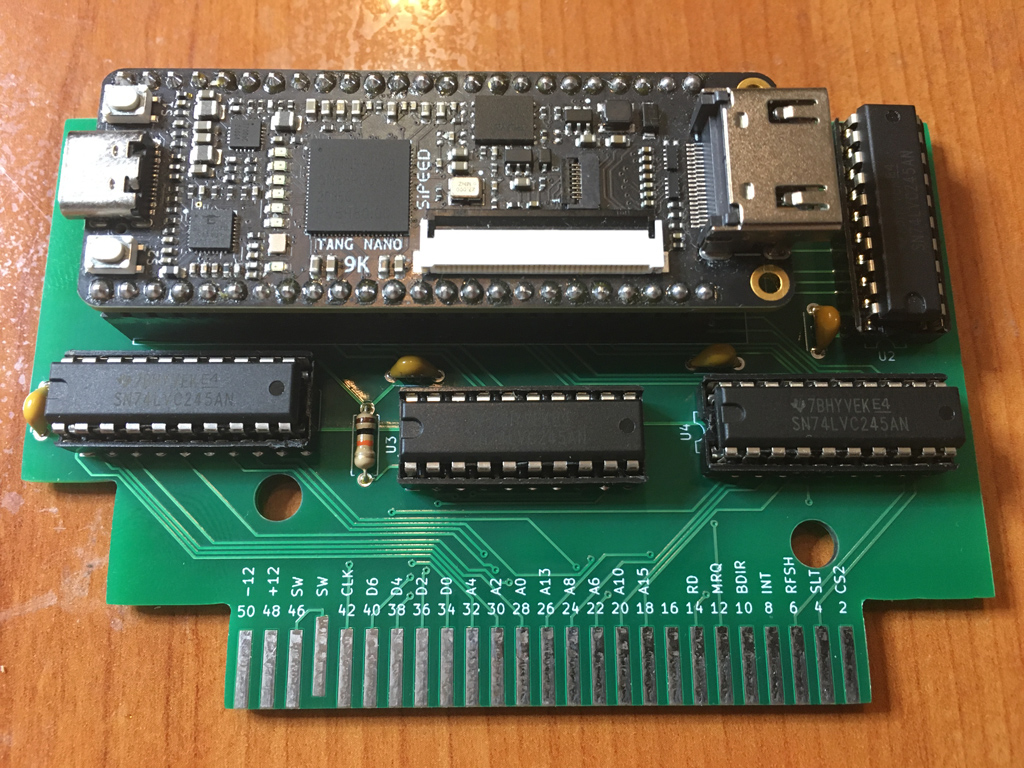

MSXmapper tn9k, from the project README
From the project README

Main components on the MSXmapper tn9k

SN74LVC245ANTang_Nano_9k

MSXmapper tn9k bill of materials (BOM)

12 components, 5 distinct parts.

QtyPartRefs
4
SN74LVC245AN
U1, U2, U3, U4
1
Tang_Nano_9k
U6
1
MSX-CONNECTOR
CON1
5
100n
C1, C2, C3, C4, C6
1
10k
R1

MSXmapper tn9k design files

The KiCad project lives in the jabadiagm/MSXmapper_tn9k repository on GitHub; these links point at the commit this page was built from.

MSXmapper tn9k: common questions

How big is the MSXmapper tn9k PCB?

The MSXmapper tn9k measures 101.6 × 65.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MSXmapper tn9k?

12 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the MSXmapper tn9k design files?

From the jabadiagm/MSXmapper_tn9k repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MSXmapper tn9k design in my own project?

The repository has no license, so all rights stay with jabadiagm. Use it as a reference, and ask the author before reusing the design.
