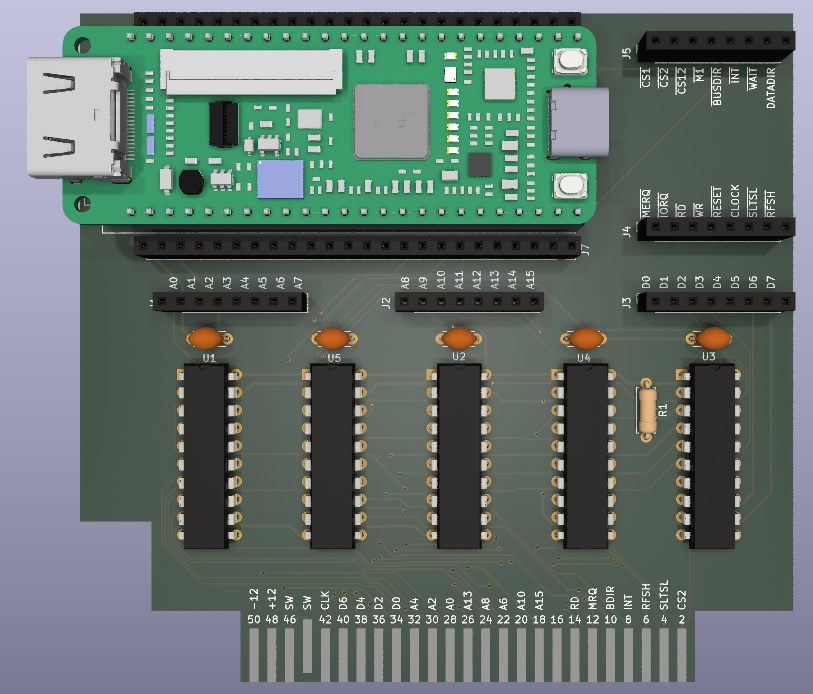

MSXproto tn9k PCB layout, top view — open source board by jabadiagm

About the MSXproto tn9k PCB

MSXproto tn9k is an open source PCB design by jabadiagm, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 101.6 × 95.3 mm, with 21 components from 7 distinct parts.

Other key parts include the SN74LVC245AN and Tang_Nano_9k. By type, the board carries 8 connectors, 6 ICs, 6 capacitors and 1 resistor.

It belongs with the retro computing designs in this gallery.

From the project

Placa de prototipado para cartucho MSX y Tang Nano 9K

Placa de prototipo para conectar una Tang Nano 9K a una ranura de cartucho MSX. Se incluyen adaptadores de nivel de 5V a 3.3V para los pines de salida digitales del cartucho.

MSXproto tn9k, from the project README
From the project README

Main components on the MSXproto tn9k

SN74LVC245ANTang_Nano_9k

MSXproto tn9k bill of materials (BOM)

21 components, 7 distinct parts.

QtyPartRefs
5
SN74LVC245AN
U1, U2, U3, U4, U5
1
Tang_Nano_9k
U6
1
MSX-CONNECTOR
CON1
5
Conn_01x08
J1, J2, J3, J4, J5
2
Conn_01x24
J6, J7
6
100n
C1, C2, C3, C4, C5, C6
1
10k
R1

MSXproto tn9k design files

The KiCad project lives in the jabadiagm/MSXproto_tn9k repository on GitHub; these links point at the commit this page was built from.

MSXproto tn9k: common questions

How big is the MSXproto tn9k PCB?

The MSXproto tn9k measures 101.6 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MSXproto tn9k?

21 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the MSXproto tn9k design files?

From the jabadiagm/MSXproto_tn9k repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MSXproto tn9k design in my own project?

Yes, under the terms of its GPL-3.0 license, which jabadiagm chose for the repository.
