Attiny soic-14-barebone breakout board

jaco-pixeldump·attiny-soic-14-barebone-breakout-board

Attiny soic-14-barebone breakout board layout, top view — open source AVR/Arduino board by jaco-pixeldump

About the Attiny soic-14-barebone breakout board

Attiny soic-14-barebone breakout board is an open source AVR/Arduino PCB design by jaco-pixeldump, published on GitHub under the MIT license. It is a 2-layer board measuring 21.1 × 19.6 mm, with 3 components from 3 distinct parts.

Its main chip is the ATtiny3224-SS, from the AVR/Arduino family. By type, the board carries 2 capacitors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A compact, breadboard-friendly breakout adapter PCB for 14-pin SOIC Microchip ATtiny microcontrollers (such as ATtiny3224, ATtiny1624, ATtiny824, ATtiny424, as well as 1-series and 0-series parts like ATtiny1614, ATtiny814, ATtiny414, ATtiny404, ATtiny214, ATtiny204).

A compact, breadboard-friendly breakout adapter PCB for 14-pin SOIC Microchip ATtiny microcontrollers (such as ATtiny3224, ATtiny1624, ATtiny824, ATtiny424, as well as 1-series and 0-series parts like ATtiny1614, ATtiny814, ATtiny414, ATtiny404, ATtiny214, ATtiny204).

Designed to bridge the gap between SMD SOIC-14 packaging and rapid breadboard prototyping, this board breaks out all 14 pins into a standard 600 mil DIP form factor with onboard decoupling capacitors for noise-free, stable operation.

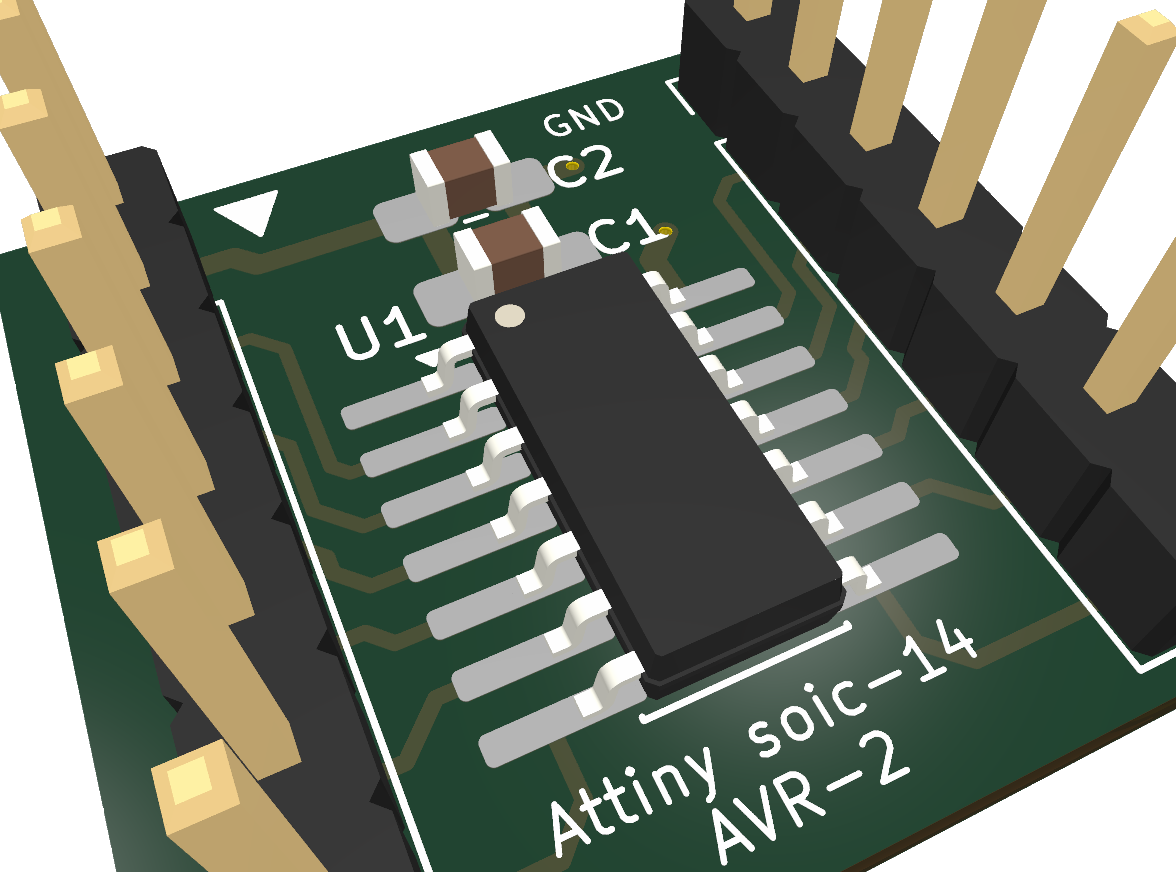

Attiny soic-14-barebone breakout board, from the project README
From the project README

Main components on the Attiny soic-14-barebone breakout board

ATtiny3224-SS

Attiny soic-14-barebone breakout board bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATtiny3224-SS
U1
1
10nF
C1
1
10µF
C2

Attiny soic-14-barebone breakout board design files

The KiCad project lives in the jaco-pixeldump/attiny-soic-14-barebone-breakout-board repository on GitHub; these links point at the commit this page was built from.

Attiny soic-14-barebone breakout board: common questions

What microcontroller does the Attiny soic-14-barebone breakout board use?

The Attiny soic-14-barebone breakout board is built around the ATtiny3224-SS, from the AVR/Arduino family.

How big is the Attiny soic-14-barebone breakout board?

The Attiny soic-14-barebone breakout board measures 21.1 × 19.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Attiny soic-14-barebone breakout board?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Attiny soic-14-barebone breakout board design files?

From the jaco-pixeldump/attiny-soic-14-barebone-breakout-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Attiny soic-14-barebone breakout board design in my own project?

Yes, under the terms of its MIT license, which jaco-pixeldump chose for the repository.

Can I test firmware for the Attiny soic-14-barebone breakout board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
