USB-C-Screen-Adapter PCB layout, top view — open source STM32 board by Jana-Marie
Simulate this board

About the USB-C-Screen-Adapter PCB

USB-C-Screen-Adapter is an open source STM32 PCB design by Jana-Marie, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 40 × 20.8 mm, with 60 components from 36 distinct parts.

Its main chip is the TPS61160A, from the STM32 family. Other key parts include the 5022505191, NE555, 1117-3.3 and STG3684A. By type, the board carries 23 capacitors, 19 resistors, 7 ICs, 4 diodes, 3 inductors and 2 transistors.

It belongs with the displays & leds designs in this gallery.

From the project

DisplayPort to Ipad 3/4 panel adapter

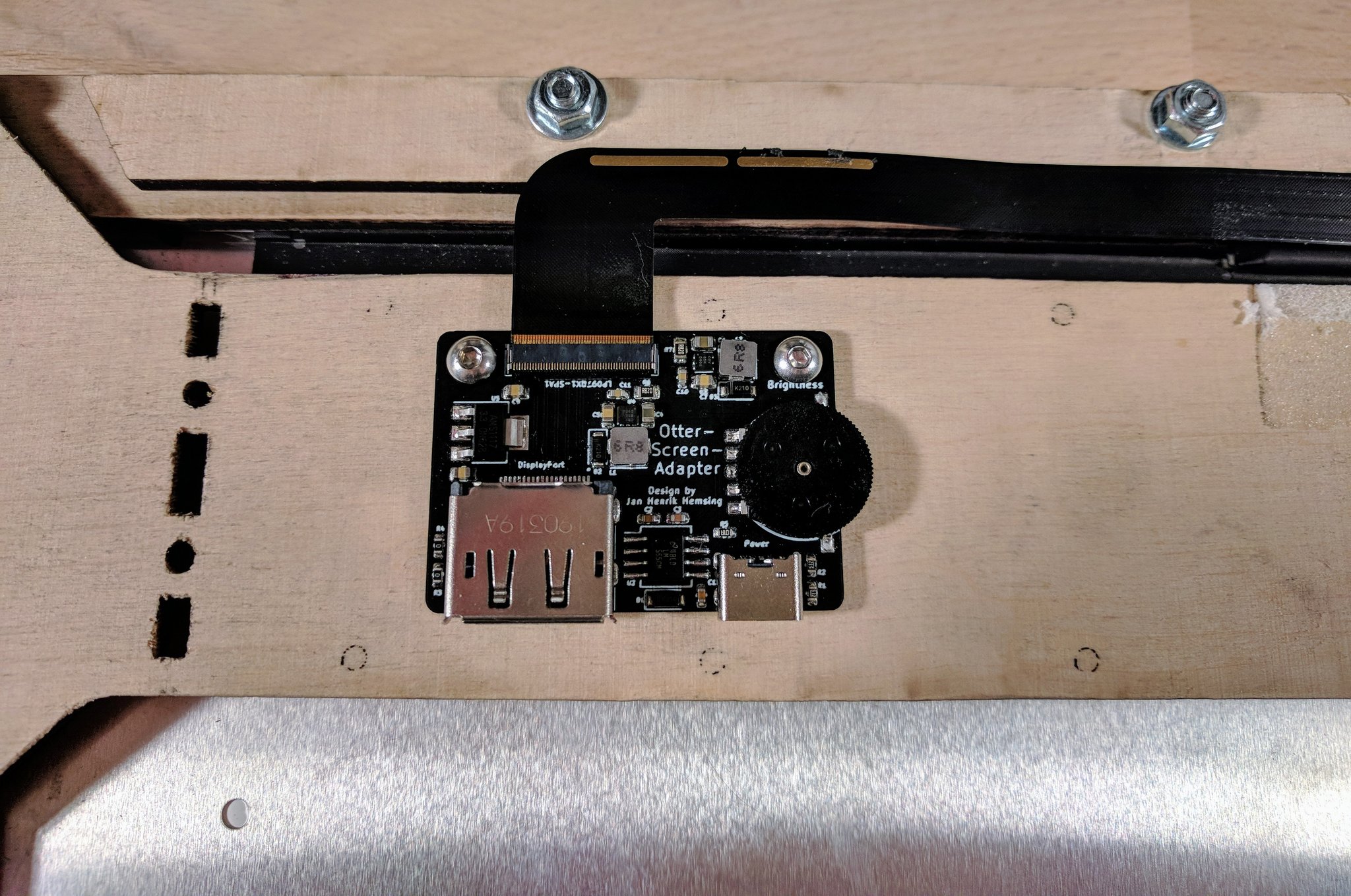

It turns out that modern screens/panels like the LP097QX1-SPA1 from LG have a eDP interface, which is only DP (DisplayPort) but without a standard connector. You can buy such a screen for ~40€ and with the OtterScreenAdapter (part cost: ~10€) you can convert it into an external 2048x1536px monitor.

USB-C-Screen-Adapter, from the project README
From the project README

Main components on the USB-C-Screen-Adapter

5022505191NE555TPS61160A1117-3.3STG3684A

USB-C-Screen-Adapter bill of materials (BOM)

60 components, 36 distinct parts — part numbers from the project's BOM.
