Smu front 1

jaromir-sukuba·J-SMU·pcb/pcb_kicad/smu_front_D2/smu_front_1/smu_front_1.kicad_pcb

Smu front 1 PCB layout, top view — open source board by jaromir-sukuba
Simulate this board

About the Smu front 1 PCB

Smu front 1 is an open source PCB design by jaromir-sukuba, published on GitHub. It is a 2-layer board measuring 268 × 62 mm, with 83 components from 25 distinct parts.

Other key parts include the TPS5420D, 74HC14, MCP23S17_SO, STP16CP05 and 74LS138. By type, the board carries 18 resistors, 14 switches, 13 diodes, 13 capacitors, 9 LEDs and 7 ICs.

From the project

DIY source-measure unit

Parameters: + Voltage ranges 12V and 120V (bipolar) + Current ranges 1uA, 10uA, 100uA, 1mA, 10mA, 100mA (bipolar) + Minimal set voltage step - 1mV + Minimal set current step - 100pA + Voltage resolution - 100uV + Current resolution - 1pA

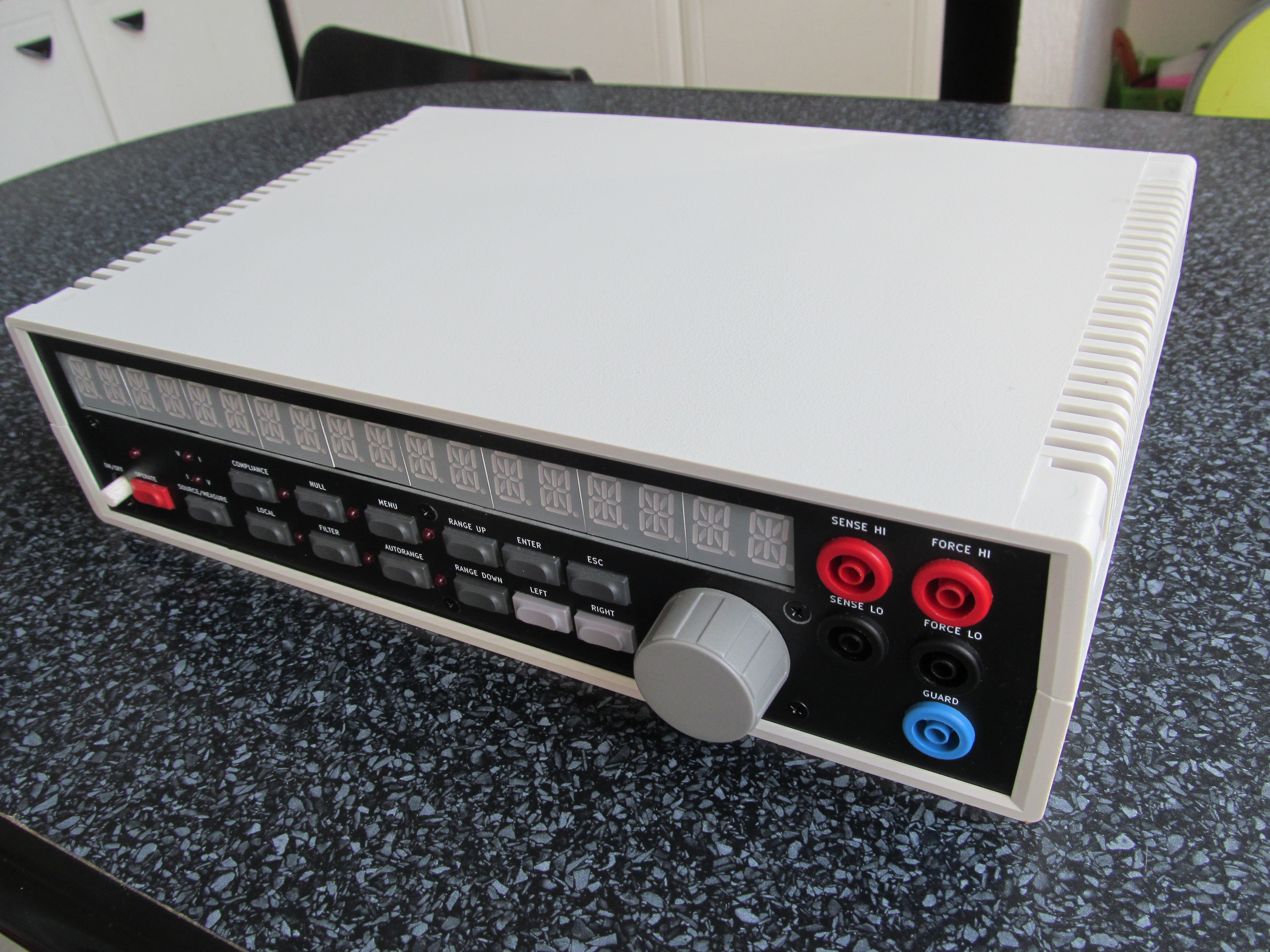

JSMU is designed to work as standalone device, but can be connected to computer via USB, and controlled via simple commands in SCPI form, similar to Keithley 2xxx series SMUs.

Smu front 1, from the project README
From the project README

Main components on the Smu front 1

TPS5420D74HC14MCP23S17_SOSTP16CP0574LS138

Smu front 1 bill of materials (BOM)

83 components, 25 distinct parts.

QtyPartRefs
1
TPS5420D
U3
1
74HC14
U4
1
MCP23S17_SO
U5
3
STP16CP05
U6, U7, U8
1
74LS138
U9
6
IRLML6402
Q1, Q2, Q3, Q4, Q5, Q6
1
Conn_02x08_Odd_Even
J2
1
Conn_01x04_Male
J3
14
SW_Push
SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9 +6
9
DISP_LTP3786
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +1
1
B340
D1
9
LED
D2, D3, D4, D5, D6, D7, D8, D9 +1
3
LL4148
D11, D12, D13
1
L
L1
1
10u
C1
2
1n
C2, C3
1
10n
C4
1
47u
C5
4
C
C6, C7, C8, C11
2
100n
C9, C10
Show 5 more
QtyPartRefs
2
470u
C12, C13
5
10k
R1, R2, R3, R4, R5
1
6K8
R6
9
510
R7, R8, R9, R10, R11, R12, R13, R14 +1
3
1k5
R16, R17, R18

Smu front 1 design files

The KiCad project lives in the jaromir-sukuba/J-SMU repository on GitHub; these links point at the commit this page was built from.

Smu front 1: common questions

How big is the Smu front 1 PCB?

The Smu front 1 measures 268 × 62 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smu front 1?

83 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Smu front 1 design files?

From the jaromir-sukuba/J-SMU repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Smu front 1 design in my own project?

The repository has no license, so all rights stay with jaromir-sukuba. Use it as a reference, and ask the author before reusing the design.
