TICK AC

jasonsbeer·Amiga-2000-EATX·TICK/TICK_AC_KiCAD/TICK_AC.kicad_pcb

TICK AC PCB layout, top view — open source board by jasonsbeer
Simulate this board

About the TICK AC PCB

TICK AC is an open source PCB design by jasonsbeer, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 33.9 × 19.8 mm, with 7 components from 7 distinct parts.

By type, the board carries 2 connectors, 2 resistors, 1 transistor, 1 diode and 1 capacitor.

It belongs with the retro computing designs in this gallery.

From the project

An Amiga 2000 PCB in the EATX form factor.

Included here are two options (9VAC and Crystal Oscillator) for generating an independent TICK signal for the Amiga 2000 EATX. These could be used in other projects needing a replacement TICK generator, such as adding an ATX power supply to an original big box Amiga. Both options are very simple circuits, small in size, and designed to be placed directly on J300 of the Amiga 2000 EATX Rev 2.2 and greater.

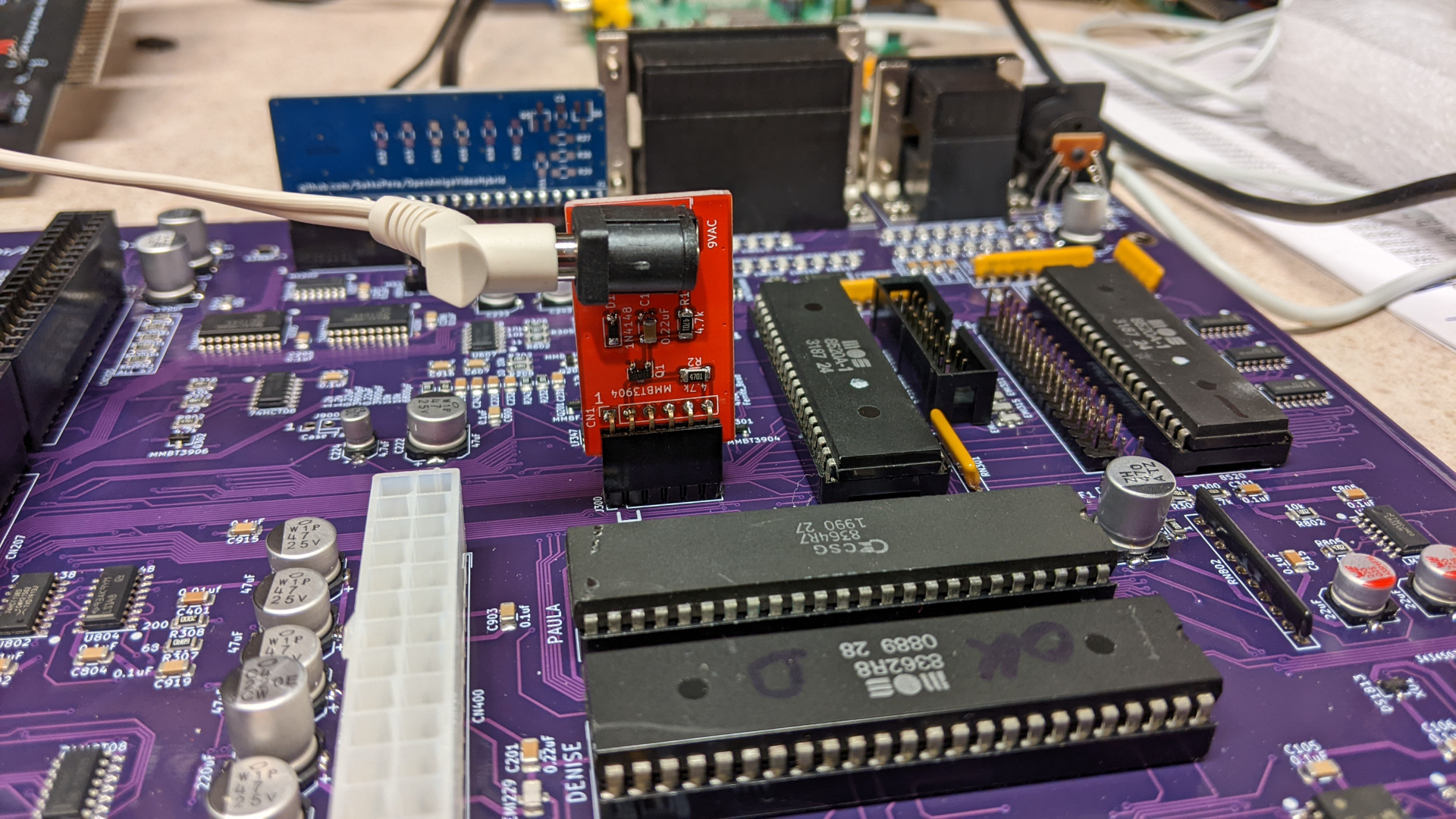

TICK AC, from the project README
From the project README

TICK AC bill of materials (BOM)

7 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MMBT3904
Q1
1
To_Amiga
CN1
1
Barrel_Jack
CN2
1
1N4148
D1
1
6.8PF
0.22uF
C1
1
10M
4.7k
R1
1
100K
4.7k
R2

TICK AC design files

The KiCad project lives in the jasonsbeer/Amiga-2000-EATX repository on GitHub; these links point at the commit this page was built from.

TICK AC: common questions

How big is the TICK AC PCB?

The TICK AC measures 33.9 × 19.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TICK AC?

7 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TICK AC design files?

From the jasonsbeer/Amiga-2000-EATX repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the TICK AC design in my own project?

Yes, under the terms of its GPL-3.0 license, which jasonsbeer chose for the repository.
