About the Amiga 2000 EATX PCB
Amiga 2000 EATX is an open source PCB design by jasonsbeer, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 304.8 × 330.2 mm, with 599 components from 128 distinct parts.
Other key parts include the MC68000, Agnus_MULTI, GARY, 74AHCT245 and 74HCT373. By type, the board carries 231 capacitors, 173 resistors, 50 ICs, 28 connectors, 13 inductors and 7 transistors.
It belongs with the retro computing designs in this gallery.
From the project
An Amiga 2000 PCB in the EATX form factor.

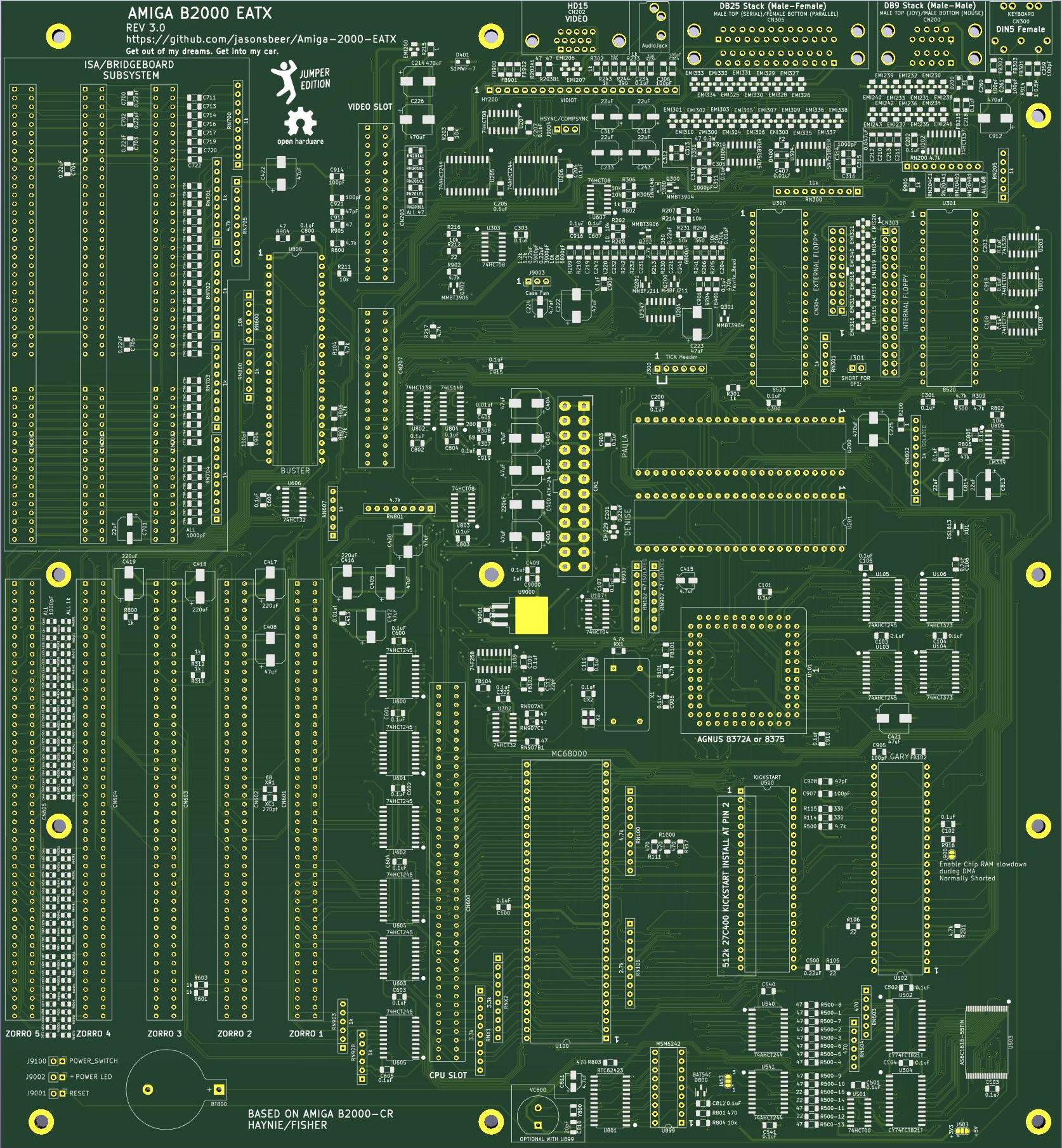

This is an open source Amiga 2000 PCB in the EATX form factor. EATX is an ATX variant that defines larger PCBs, measuring 12 x 13 inches (305 × 330 mm). These are referred to as Extended ATX, or, EATX (see Enterprise Electronics Bay Specification). The length of Zorro II cards and the abundance of components on the Amiga 2000 makes EATX the best choice for this project.

Main components on the Amiga 2000 EATX
Amiga 2000 EATX bill of materials (BOM)
599 components, 128 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC68000 | DIP-64_W22.86mm_Socket | U100 |
| 1 | Agnus_MULTI | PLCC-84_THT-Socket | U101 |
| 1 | GARY | DIP-48_W15.24mm | U102 |
| 2 | 74AHCT245 | SOIC-20W_7.5x12.8mm_P1.27mm | U103, U105 |
| 2 | 74HCT373 | SOIC-20W_7.5x12.8mm_P1.27mm | U104, U106 |
| 1 | 74HCT04 | SOIC-14_3.9x8.7mm_P1.27mm | U107 |
| 2 | 74HCT74 | SOIC-14_3.9x8.7mm_P1.27mm | U108, U9102 |
| 1 | 74F258 | SOIC-16_3.9x9.9mm_P1.27mm | U109 |
| 1 | PAULA | DIP-48_W15.24mm | U200 |
| 1 | DENISE | DIP-48_W15.24mm | U201 |
| 1 | 74HCT157 | SOIC-16_3.9x9.9mm_P1.27mm | U202 |
| 1 | 74LS38 | SOIC-14_3.9x8.7mm_P1.27mm | U203 |
| 1 | LF347 | SOIC-14_3.9x8.7mm_P1.27mm | U204 |
| 4 | 74AHCT244 | SOIC-20W_7.5x12.8mm_P1.27mm | U205, U206, U540, U541 |
| 4 | 74HCT08 | SOIC-14_3.9x8.7mm_P1.27mm | U207, U303, U607, U803 |
| 2 | 8520 | DIP-40_W15.24mm | U300, U301 |
| 2 | 74HCT32 | SOIC-14_3.9x8.7mm_P1.27mm | U302, U606 |
| 1 | SN75188DR | SOIC-14_3.9x8.7mm_P1.27mm | U304 |
| 1 | SN75189DR | SOIC-14_3.9x8.7mm_P1.27mm | U305 |
| 1 | KICKSTART | DIP-42_W15.24mm | U500 |
Show 108 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HCT00 | SOIC-14_3.9x8.7mm_P1.27mm | U501, U900 |
| 2 | CY74FCT821T | SOIC-24W_7.5x15.4mm_P1.27mm | U502, U504 |
| 1 | CY62167ELL-45ZXI | TSOP-I-48_18.4x12mm_P0.5mm | U503 |
| 6 | 74HCT245 | SOIC-20W_7.5x12.8mm_P1.27mm | U600, U601, U602, U603, U604, U605 |
| 1 | BUSTER | DIP-48_W15.24mm | U800 |
| 1 | RTC62423 | SOIC-24W_7.5x15.4mm_P1.27mm | U801 |
| 1 | 74HCT138 | SOIC-16_3.9x9.9mm_P1.27mm | U802 |
| 1 | 74LS148 | SOIC-16_3.9x9.9mm_P1.27mm | U804 |
| 1 | LM339 | SOIC-14_3.9x8.7mm_P1.27mm | U805 |
| 1 | MSM6242 | DIP-18_W7.62mm_Socket | U899 |
| 1 | MC7905 | TO-263-3_TabPin2 | U9000 |
| 1 | 74HCT14 | SOIC-14_3.9x8.7mm_P1.27mm | U9101 |
| 2 | MMBFJ211 | SOT-23 | Q200, Q201 |
| 2 | MMBT3906 | SOT-23 | Q202, Q302 |
| 3 | MMBT3904 | SOT-23 | Q300, Q301, Q9100 |
| 1 | 28.63636MHz | Oscillator_DIP-14 | X1 |
| 1 | 7C-28.63636MBB-T | Oscillator_SMD_SeikoEpson_SG8002LB-4Pin_5.0x3.2mm | X2 |
| 1 | 32.768KHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y800 |
| 1 | ATX-24 | Molex_Mini-Fit_Jr_5566-24A_2x12_P4.20mm_Vertical | CN1 |
| 1 | DB9_Male_Stack | DSUB-9_Male_Stack | CN200 |
| 2 | Amiga-2000-Video-Slot | 2x18_P2.54mm_Horizontal | CN203, CN207 |
| 1 | AudioJack | Jack_3.5mm_CUI_SJ1-3533NG_Horizontal_CircularHoles | CN205 |
| 1 | KEYBOARD | DIN5 | CN300 |
| 1 | INTERNAL FLOPPY | PinHeader_2x17_P2.54mm_Vertical | CN303 |
| 1 | EXTERNAL FLOPPY | PinHeader_2x10_P2.54mm_Vertical | CN304 |
| 1 | DB25_Stack_FemaleAndMale | DSUB-25_Stack_Female_Bottom_Male_Top | CN305 |
| 1 | Amiga-2000-CPU-Slot | Samtec_HLE-150-02-xx-DV-TE_2x43_P2.54mm_Horizontal | CN600 |
| 5 | Amiga-2000-Zorro-Slot | Samtec_HLE-150-02-xx-DV-TE_2x50_P2.54mm_Horizontal | CN601, CN602, CN603, CN604, CN605 |
| 3 | ISA-16-BIT-Slot | ISA_16-BIT_P2.54mm_Horizontal | CN700, CN701, CN702 |
| 1 | Short for 8327A NTSC or 8375 | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | J102 |
| 1 | TICK Header | PinHeader_1x06_P2.54mm_Vertical | J300 |
| 1 | SHORT FOR DF1 | PinHeader_1x02_P2.54mm_Vertical | J301 |
| 1 | Mcc | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm | J503 |
| 1 | Enable Chip RAM slowdown during DMA | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | J900 |
| 1 | RESET | PinHeader_1x02_P2.54mm_Vertical | J9001 |
| 1 | POWER LED | PinHeader_1x02_P2.54mm_Vertical | J9002 |
| 1 | Case Fan | FanHeader_1x03_P2.54mm_Vertical | J9003 |
| 1 | HSYNC/COMPSYNC | PinHeader_1x03_P2.54mm_Vertical | J9004 |
| 1 | POWER_SWITCH | PinHeader_1x02_P2.54mm_Vertical | J9100 |
| 1 | Battery_Cell | BatteryHolder_Keystone_103_1x20mm | BT800 |
| 1 | 0.1uF | C_1206_3216Metric | CX2 |
| 60 | 100pF | C_1206_3216_Feedthrough | EMI200, EMI206, EMI207, EMI229, EMI230, EMI231, EMI232, EMI233 +52 |
| 2 | 4A | Fuse_1206_3216Metric | F1, F2 |
| 2 | Fuse | Fuse_1206_3216Metric | F3, F4 |
| 1 | VIDIOT | PinSocket_1x22_P2.54mm_Vertical | HY200 |
| 13 | 8375/8372A | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm | JA1, JA2, JA3, JA4, JA5, JA6, JA8, JA9 +5 |
| 1 | 8372A | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JA7 |
| 2 | 3.3k | R_Array_SIP10 | RNX1, RNX2 |
| 1 | 22-47pF | TrimmerCap | VC800 |
| 1 | 270pf | C_1206_3216Metric | XC1 |
| 1 | 68 | R_1206_3216Metric | XR1 |
| 1 | DS1813 | SOT-23 | XU1 |
| 4 | S1MWF-7 | D_SOD-123F | D200, D301, D400, D401 |
| 2 | 1N4148 | D_SOD-323 | D300, D9100 |
| 1 | BAT54C | SOT-23 | D800 |
| 13 | Ferrite_Bead | C_1206_3216Metric | FB101, FB102, FB103, FB104, FB215, FB301, FB302, FB303 +5 |
| 61 | 0.1uF | C_1206_3216Metric | C100, C101, C102, C103, C104, C105, C106, C107 +53 |
| 1 | 22pF | C_1206_3216Metric | C111 |
| 10 | 0.22uF | C_1206_3216Metric | C201, C219, C220, C221, C500, C700, C702, C703 +2 |
| 4 | 0.01uf | C_1206_3216Metric | C204, C401, C407, C413 |
| 4 | 0.047uF | C_1206_3216Metric | C210, C211, C212, C213 |
| 4 | 470uF | CP_Elec_8x10 | C214, C225, C226, C912 |
| 12 | 47uF | CP_Elec_8x10 | C222, C223, C402, C403, C404, C405, C406, C408 +4 |
| 3 | 4.7uF | CP_Elec_4x5.8 | C224, C415, C811 |
| 2 | 6800pF | C_1206_3216Metric | C231, C241 |
| 2 | 3900pF | C_1206_3216Metric | C232, C242 |
| 7 | 22uF | CP_Elec_6.3x5.8 | C233, C243, C317, C318, C701, C813, C814 |
| 10 | 100pF | C_1206_3216Metric | C259, C260, C261, C304, C306, C904, C905, C907 +2 |
| 51 | 1000pF | C_1206_3216Metric | C310, C311, C312, C313, C314, C315, C316, C711 +43 |
| 5 | 220uF | CP_Elec_8x10 | C400, C416, C417, C418, C419 |
| 47 | 1000pF | C_0805_2012Metric | C617, C619, C620, C621, C622, C623, C624, C625 +39 |
| 1 | 20pF | C_1206_3216Metric | C810 |
| 2 | 47pF | C_1206_3216Metric | C908, C913 |
| 1 | 1uF | C_1206_3216Metric | C9000 |
| 1 | 0.33uF | C_1206_3216Metric | C9001 |
| 3 | 10uF | C_1206_3216Metric | C9103, C9104, C9105 |
| 14 | 4.7k | R_1206_3216Metric | R101, R104, R109, R201, R217, R300, R309, R500 +6 |
| 6 | 22 | R_1206_3216Metric | R105, R106, R212, R500-12, R500-14, R500-15 |
| 5 | 470 | R_1206_3216Metric | R111, R801, R803, R917, R1000 |
| 2 | 330 | R_1206_3216Metric | R114, R115 |
| 2 | 1 | R_1206_3216Metric | R200, R215 |
| 14 | 10k | R_1206_3216Metric | R202, R203, R206, R211, R214, R216, R231, R232 +6 |
| 24 | 47 | R_1206_3216Metric | R203A1, R203B1, R500-1, R500-2, R500-3, R500-4, R500-5, R500-6 +16 |
| 2 | 470k | R_1206_3216Metric | R204, R205 |
| 2 | 10 | R_1206_3216Metric | R207, R208 |
| 2 | 1.2k | R_1206_3216Metric | R209, R210 |
| 1 | 2.7k | R_1206_3216Metric | R213 |
| 2 | 360 | R_1206_3216Metric | R230, R240 |
| 11 | 1k | R_1206_3216Metric | R233, R243, R301, R302, R311, R312, R601, R602 +3 |
| 2 | 390 | R_1206_3216Metric | R234, R244 |
| 5 | 68 | R_1206_3216Metric | R307, RN204A1, RN204B1, RN204C1, RN204D1 |
| 1 | 200 | R_1206_3216Metric | R308 |
| 1 | 47 0.5W | R_1206_3216Metric | R310 |
| 47 | 1k | R_0805_2012Metric | R601A1, R601B1, R601C1, R601D1, R601E1, R601F1, R601G1, R601H1 +39 |
| 2 | 47k | R_1206_3216Metric | R805, R9103 |
| 1 | 1 0.5W | R_1206_3216Metric | R914 |
| 3 | 30k | R_1206_3216Metric | R9100, R9102, R9105 |
| 1 | 6.2k | R_1206_3216Metric | R9101 |
| 2 | 4.7k | R_Array_SIP10 | RN100, RN705 |
| 1 | 2.7k | R_Array_SIP10 | RN101 |
| 2 | 47 | R_Array_SIP8 | RN102, RN902 |
| 1 | 4.7k | R_Array_SIP9 | RN200 |
| 6 | 1k | R_Array_SIP6 | RN205, RN301, RN607, RN800, RN903, RN908 |
| 1 | 10k | R_Array_SIP10 | RN300 |
| 2 | 470 | R_Array_SIP6 | RN503, RN504 |
| 1 | 10k | R_Array_SIP6 | RN600 |
| 6 | 1k | R_Array_SIP10 | RN700, RN701, RN702, RN703, RN704, RN802 |
| 1 | 4.7k | R_Array_SIP8 | RN801 |
Amiga 2000 EATX design files
The KiCad project lives in the jasonsbeer/Amiga-2000-EATX repository on GitHub; these links point at the commit this page was built from.
Amiga 2000 EATX: common questions
How big is the Amiga 2000 EATX PCB?
The Amiga 2000 EATX measures 304.8 × 330.2 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Amiga 2000 EATX?
599 components, from 128 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Amiga 2000 EATX design files?
From the jasonsbeer/Amiga-2000-EATX repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Amiga 2000 EATX design in my own project?
Yes, under the terms of its GPL-3.0 license, which jasonsbeer chose for the repository.
