Par2Ser
About the Par2Ser PCB
Par2Ser is an open source PCB design by jbilander, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 47 × 50 mm, with 41 components from 28 distinct parts.
Other key parts include the LC4064V-75TN48C, FT240XS-R and TLV75533PDBVR. By type, the board carries 17 resistors, 13 capacitors, 4 diodes, 3 ICs, 3 connectors and 1 inductor.
It belongs with the retro computing and usb & debug tools designs in this gallery.
From the project
A device that bridges the Amiga parallel port to a USB FIFO (FT240X)
A serial.device-compatible Amiga driver that bridges the parallel port to a USB FIFO (FT240X) via Niklas Ekström's 2E parallel-adapter protocol, so unmodified comms programs (c-kermit, NComm, …) can set line par2ser.device.

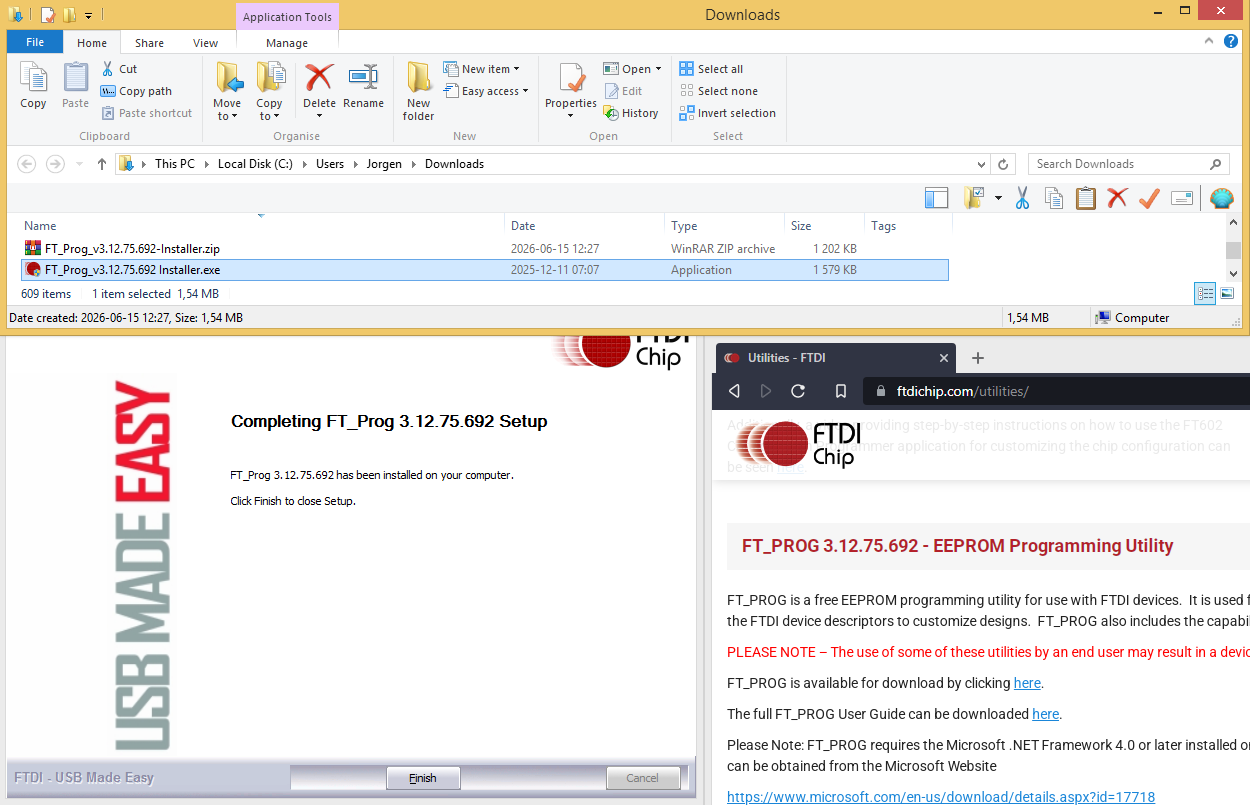

The hardware side is a small board built around a Lattice LC4064V-75TN48C CPLD that speaks the 2E protocol to the Amiga and presents the bytes to an FT240X USB FIFO. The PC sees a standard USB serial port (VCP).
Main components on the Par2Ser
Par2Ser bill of materials (BOM)
41 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LC4064V-75TN48C | TQFP-48_7x7mm_P0.5mm | U1 |
| 1 | FT240XS-R | SSOP-24_3.9x8.7mm_P0.635mm | U2 |
| 1 | TLV75533PDBVR | SOT-23-5 | U3 |
| 1 | DB25_Male | DSUB-25_Male_EdgeMount_P2.77mm | J1 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J2 |
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | Activity LED | LED_Rectangular_W5.0mm_H2.0mm | D1 |
| 1 | Power LED indicator | LED_Rectangular_W5.0mm_H2.0mm | D2 |
| 1 | TX_LED | D_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D3 |
| 1 | RX_LED | D_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D4 |
| 1 | 600 | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | FB1 |
| 2 | 4.7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 1 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 2 | 47pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4, C5 |
| 3 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C7, C8 |
| 5 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C9, C10, C11, C12, C13 |
| 1 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 1 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
| 2 | 1k 0805 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
| 1 | 33 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 330 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6 |
| 2 | 5k1 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7, R8 |
| 2 | 27 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9, R10 |
| 1 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R11 |
| 1 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R12 |
| 1 | 10k | R_Array_SIP9 | RN1 |
| 1 | 10k | R_Array_SIP5 | RN2 |
| 3 | 330 | R_Array_Convex_4x0603 | RN3, RN4, RN5 |
Par2Ser design files
The KiCad project lives in the jbilander/Par2Ser repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCad/Par2Ser.kicad_pcb
Par2Ser: common questions
How big is the Par2Ser PCB?
The Par2Ser measures 47 × 50 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Par2Ser?
41 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the Par2Ser design files?
From the jbilander/Par2Ser repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Par2Ser design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which jbilander chose for the repository.
