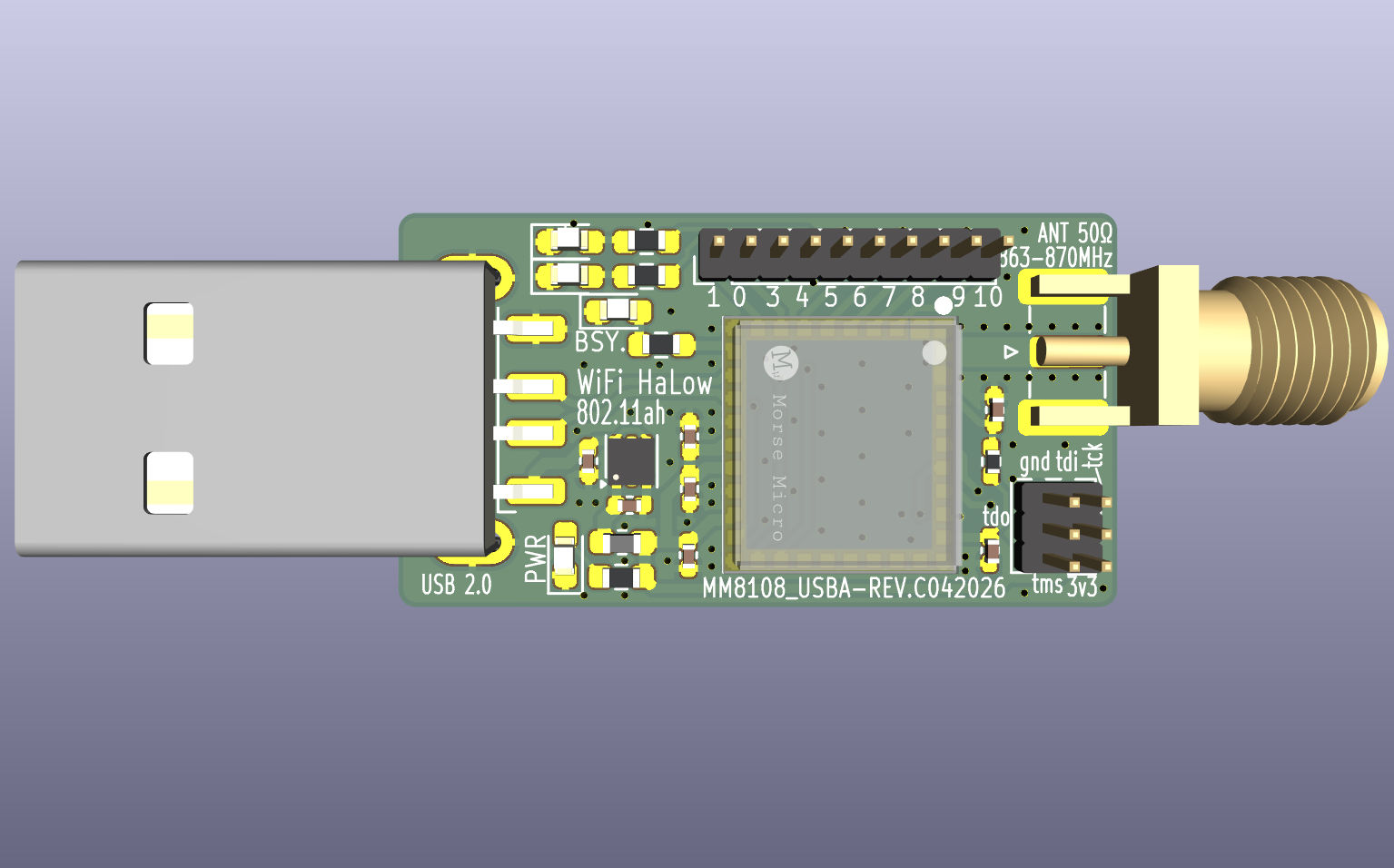

UsbaCarrierMM8108
About the UsbaCarrierMM8108 PCB
UsbaCarrierMM8108 is an open source PCB design by JeffersonSchostakovich, published on GitHub. It is a 2-layer board measuring 31 × 17 mm, with 23 components from 14 distinct parts.
Other key parts include the MM8108-MF15457 and TLV75533PDRV. By type, the board carries 7 capacitors, 5 resistors, 4 connectors, 4 diodes, 2 ICs and 1 inductor.
It belongs with the iot & wireless, dev boards & breakouts and usb & debug tools designs in this gallery.
From the project
MM8108-based adapters in different form factors for EU availability of sub-GHz halow 802.11ah hardware - mainly for decentralised networking (Reticulum mesh) and distributed IoT experimentation purposes.
Low-cost experimental hardware platform for Morse Micro MM8108 Wi-Fi HaLow (802.11ah) modules. USB-A carrier board is the current reference design, with additional form factors planned (M.2, USB-C/PCIe, HAT-style).
Focus: cost reduction vs official evaluation hardware, wireless networking experimentation, Reticulum mesh comms, IoT/embedded.
- Reduce cost vs official MM8108 dev kits / dongles - Optimize for low-cost PCB fabrication (JLCPCB / PCBWay class vendors) - 2-layer 1.6mm FR4 standard stackup - Relaxed DFM (large vias, conservative routing constraints) - Use widely available low-cost…
Main components on the UsbaCarrierMM8108
UsbaCarrierMM8108 bill of materials (BOM)
23 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MM8108-MF15457 | MM8108MF15457 | IC1 |
| 1 | TLV75533PDRV | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm_ThermalVias | U2 |
| 1 | USB_A | USB_A_CNCTech_1001-011-01101_Horizontal | J1 |
| 1 | Conn_Coaxial_Small | SMA_Samtec_SMA-J-P-H-ST-EM1_EdgeMount | J2 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P1.27mm_Vertical | J3 |
| 1 | Conn_01x10_Pin | PinHeader_1x10_P1.27mm_Vertical | J4 |
| 4 | LED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D2, D3, D4 |
| 1 | 1000 Ohm@100MHz | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1 |
| 1 | 2u2 | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1 |
| 4 | 10u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C2, C3, C4, C5 |
| 2 | 1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C6, C7 |
| 1 | 220k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1 |
| 1 | 470R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
| 3 | 560R | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6, R7, R8 |
UsbaCarrierMM8108 design files
The KiCad project lives in the JeffersonSchostakovich/halowBoards repository on GitHub; these links point at the commit this page was built from.
UsbaCarrierMM8108: common questions
How big is the UsbaCarrierMM8108 PCB?
The UsbaCarrierMM8108 measures 31 × 17 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the UsbaCarrierMM8108?
23 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the UsbaCarrierMM8108 design files?
From the JeffersonSchostakovich/halowBoards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the UsbaCarrierMM8108 design in my own project?
The repository has no license, so all rights stay with JeffersonSchostakovich. Use it as a reference, and ask the author before reusing the design.
