About the Open euro converter PCB

Open euro converter is an open source PCB design by jeigrei, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 38.2 × 108.1 mm, with 15 components from 3 distinct parts.

Other key parts include the WQP-PJ301M-12_JACK. By type, the board carries 5 ICs and 5 connectors.

It belongs with the audio designs in this gallery.

From the project

Open source 3.5 to 1/4" eurorack module with inline passive attenuation

euro-converter is a 12hp eurorack module for interfacing multiple eurorack modular synth signals with traditional audio equipment that wants 1/4" TS inputs. Each of its five channels features an inline potentiometer for attenuating the signal from eurorack-levels to studio-levels. Since euro-converter is completely passive, it also works in reverse to easily bring 1/4" outputs into 3.5mm eurorack-friendly inputs!

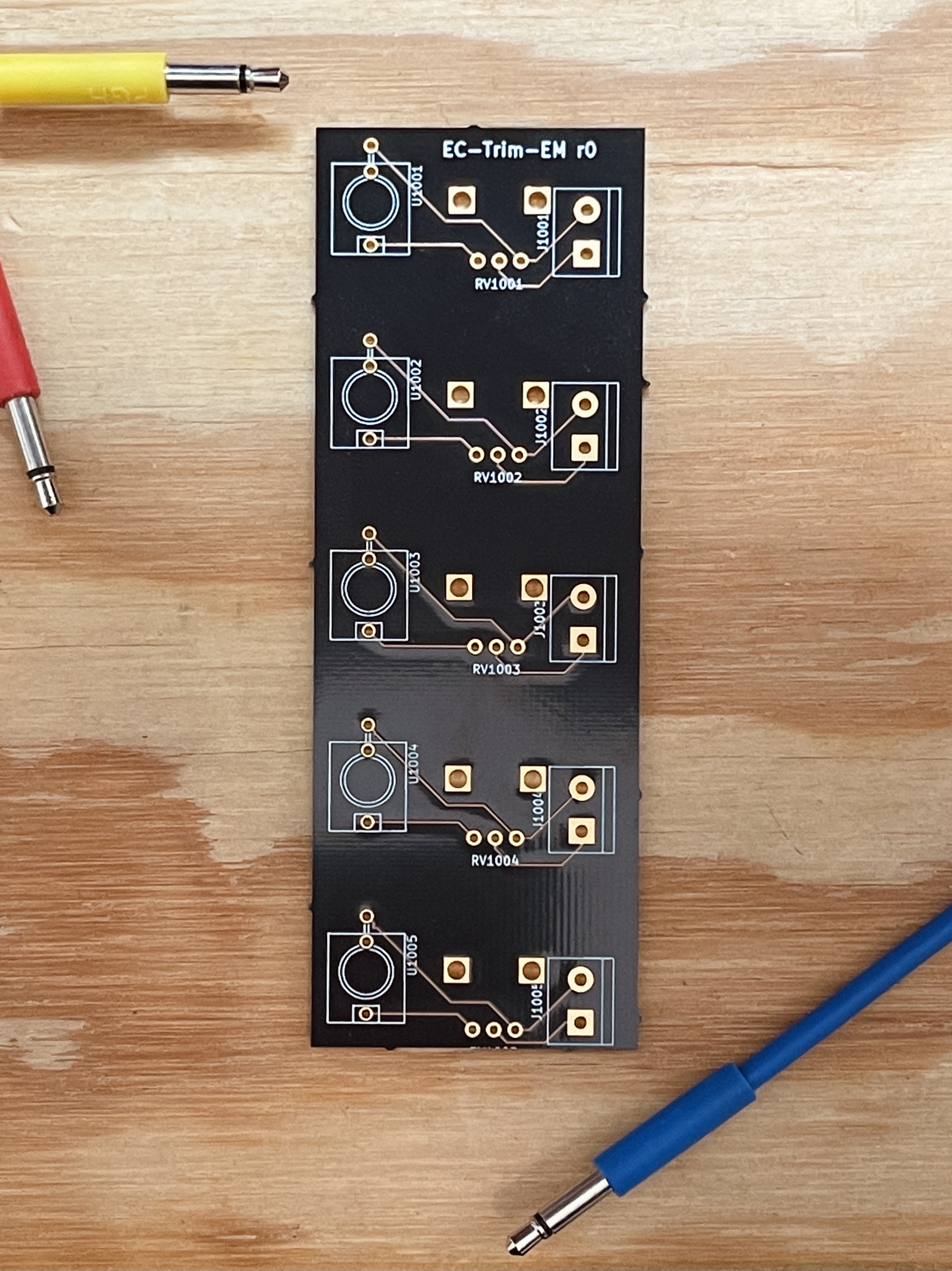

Open euro converter, from the project README
From the project README

Main components on the Open euro converter

WQP-PJ301M-12_JACK

Open euro converter bill of materials (BOM)

15 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
5
WQP-PJ301M-12_JACK
U1001, U1002, U1003, U1004, U1005
5
Screw_Terminal_01x02
J1001, J1002, J1003, J1004, J1005
5
R_POT_US
RV1001, RV1002, RV1003, RV1004, RV1005

Open euro converter design files

The KiCad project lives in the jeigrei/open-euro-converter repository on GitHub; these links point at the commit this page was built from.

Open euro converter: common questions

How big is the Open euro converter PCB?

The Open euro converter measures 38.2 × 108.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Open euro converter?

15 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Open euro converter design files?

From the jeigrei/open-euro-converter repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Open euro converter design in my own project?

Yes, under the terms of its CC0-1.0 license, which jeigrei chose for the repository.
