jenschr·WifiRc·Dumper001/Dumper001.kicad_pcb

WifiRc PCB layout, top view — open source board by jenschr

About the WifiRc PCB

WifiRc is an open source PCB design by jenschr, published on GitHub. It is a 2-layer board measuring 49.8 × 68.5 mm, with 38 components from 21 distinct parts.

Other key parts include the WM-N-BM-14, AMS1117 3.3V, L9110 and AMS1117 5.0V. By type, the board carries 11 capacitors, 8 resistors, 6 ICs, 3 modules, 3 connectors and 1 LED.

It belongs with the robotics & motion designs in this gallery.

From the project

Can run off USB (no motor) or 7.4 or 11.1V batteries (depending on what your motors need). Set your power source using the VS jumper. The 5V outputs are intended to dirve Servo's, but the wiring isn't exactly ideal. A new version may set aside 3 pins for dedicated Servo outputs.

Can run off USB (no motor) or 7.4 or 11.1V batteries (depending on what your motors need). Set your power source using the VS jumper. The 5V outputs are intended to dirve Servo's, but the wiring isn't exactly ideal. A new version may set aside 3 pins for dedicated Servo outputs.

The module has been produced and tested, but not yet mounted in a model. See pictures of the reflowed and soldered board here and a short video from testing here.

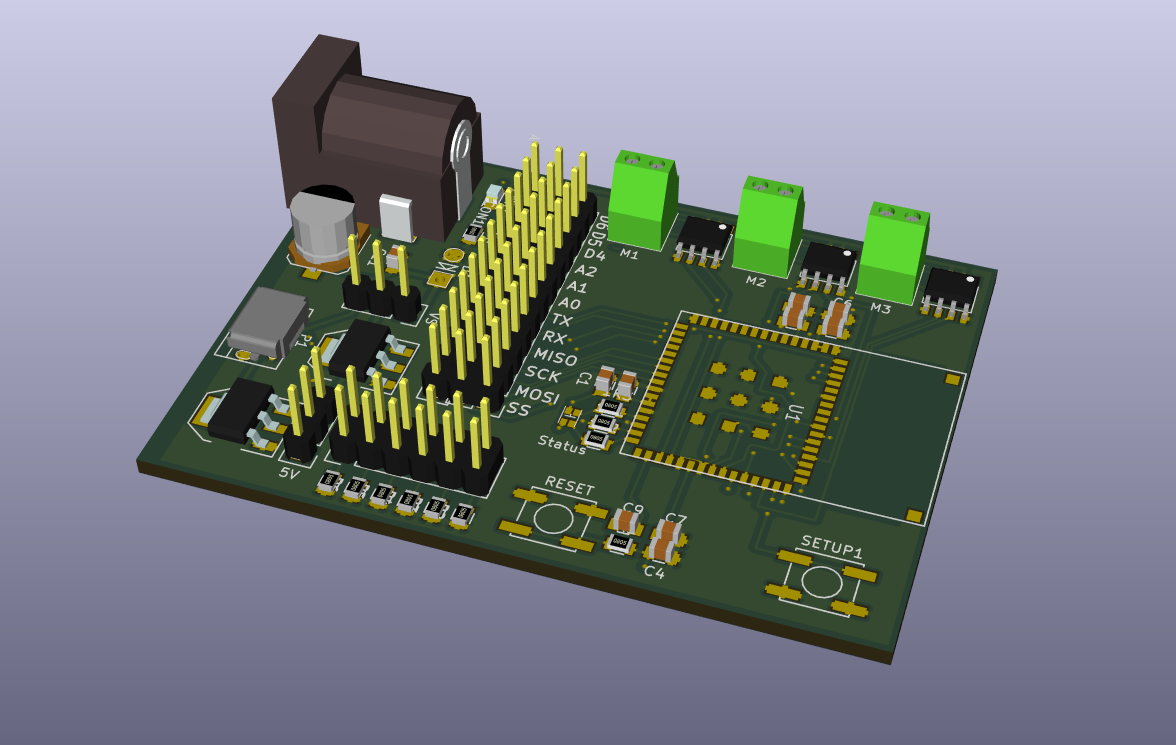

WifiRc, from the project README
From the project README

Main components on the WifiRc

WM-N-BM-14AMS1117 3.3VL9110AMS1117 5.0V

WifiRc bill of materials (BOM)

38 components, 21 distinct parts.

QtyPartRefs
1
WM-N-BM-14
U1
1
AMS1117 3.3V
U2
3
L9110
U4, U5, U6
1
AMS1117 5.0V
U7
1
M1
M1
1
M2
M2
1
M3
M3
1
BARREL_JACK
CON1
1
USB_OTG
P1
1
LedConnector
P3
3
1k
1K1, 1K2, 1K3
1
CONN_01X12
3V3
1
CONN_01X03
5V
1
LED
PWR1
1
InDiode
D1
6
0.1uf
C1, C3, C6, C7, C9, C11
4
10uf
C2, C4, C5, C8
1
47uf
C10
1
10k
R1
6
470R
R2, R3, R4, R5, R6, R7
Show 1 more
QtyPartRefs
1
1000R
R8

WifiRc design files

The KiCad project lives in the jenschr/WifiRc repository on GitHub; these links point at the commit this page was built from.

WifiRc: common questions

How big is the WifiRc PCB?

The WifiRc measures 49.8 × 68.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WifiRc?

38 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the WifiRc design files?

From the jenschr/WifiRc repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the WifiRc design in my own project?

The repository has no license, so all rights stay with jenschr. Use it as a reference, and ask the author before reusing the design.
