Kicad usbc iso avr328

jhugon·kicad_usbc_iso_avr328

Kicad usbc iso avr328 PCB layout, top view — open source AVR/Arduino board by jhugon

About the Kicad usbc iso avr328 PCB

Kicad usbc iso avr328 is an open source AVR/Arduino PCB design by jhugon, published on GitHub. It is a 2-layer board measuring 73.3 × 45 mm, with 23 components from 10 distinct parts.

Its main chip is the ATMEGA328P-P, from the AVR/Arduino family. Other key parts include the MCP2221AXP and ACPL-772L-000E. By type, the board carries 8 capacitors, 7 connectors, 4 ICs and 4 resistors.

From the project

A USB-C -> serial converter -> opto-isolator -> atmega328 project

A USB-C to serial converter connected through opto-isolators to an ATmega328. Power for the isolated side comes through another USB-C port.

All runs on the 4V DC that comes through the USB ports and everything is through-hole.

Notable parts are the USB-serial converter, a MCP2221A-I/P, the isolators, ACPL-772L-000E, and the microcontroller, ATmega328P-PU.

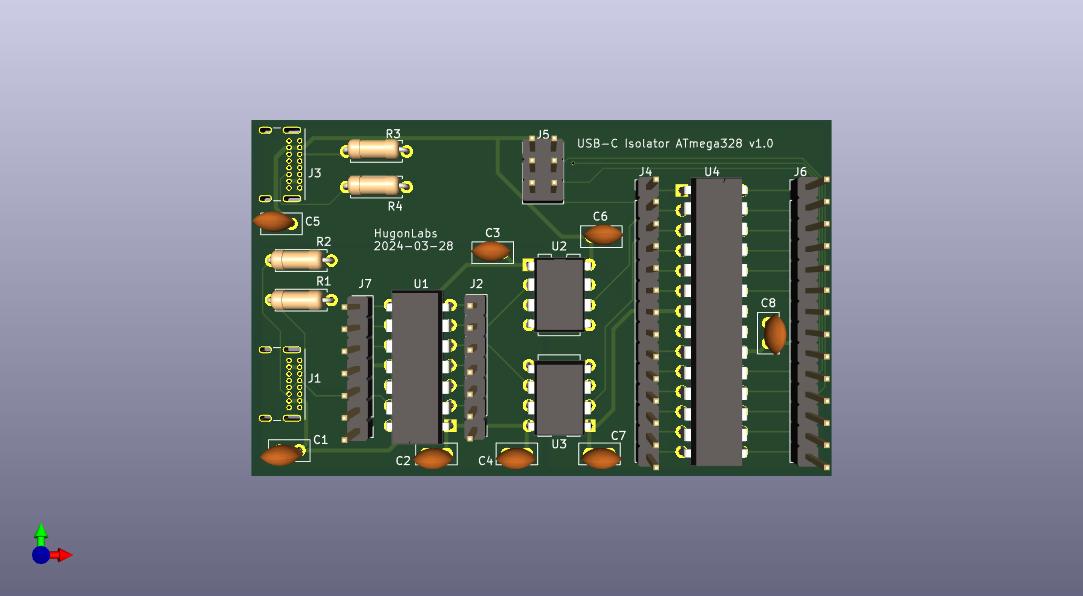

Kicad usbc iso avr328, from the project README
From the project README

Main components on the Kicad usbc iso avr328

MCP2221AXPACPL-772L-000EATMEGA328P-P

Kicad usbc iso avr328 bill of materials (BOM)

23 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP2221AXP
MCP2221AxP
Microchip
U1
2
ACPL-772L-000E
Broadcom
U2, U3
1
ATMEGA328P-P
ATmega328P-P
Microchip
U4
2
USB-C THT
GCT
J1, J3
2
MCP Debug Header
TE Connectivity
J2, J7
2
CONN_01X14_MOUNTINGPIN
Conn_01x14_MountingPin
TE Connectivity
J4, J6
1
AVR-ISP-6
Amphenol
J5
2
10U
10u
TDK
C1, C5
6
0U1
0u1
TDK
C2, C3, C4, C6, C7, C8
4
5K1
5k1
KOA Speer
R1, R2, R3, R4

Kicad usbc iso avr328 design files

The KiCad project lives in the jhugon/kicad_usbc_iso_avr328 repository on GitHub; these links point at the commit this page was built from.

Kicad usbc iso avr328: common questions

What microcontroller does the Kicad usbc iso avr328 use?

The Kicad usbc iso avr328 is built around the ATMEGA328P-P, from the AVR/Arduino family.

How big is the Kicad usbc iso avr328 PCB?

The Kicad usbc iso avr328 measures 73.3 × 45 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the Kicad usbc iso avr328?

23 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kicad usbc iso avr328 design files?

From the jhugon/kicad_usbc_iso_avr328 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kicad usbc iso avr328 design in my own project?

The repository has no license, so all rights stay with jhugon. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Kicad usbc iso avr328 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
