Keydeck PCB layout, top view — open source RP2040/RP2350 board by jimmydin7
Simulate this board

About the Keydeck PCB

Keydeck is an open source RP2040/RP2350 PCB design by jimmydin7, published on GitHub. It is a 2-layer board measuring 61.9 × 62.7 mm, with 9 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 5 switches, 2 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Keydeck is a hardware project, a custom designed macropad with a fully built from scratch PCB, schematic, routing, and 3D model + printed case.

- XIAO RP2040 (1) - EC11 Encoder (1) - Switches (5) - Keycaps (5) - smd leds sk6812min (2)

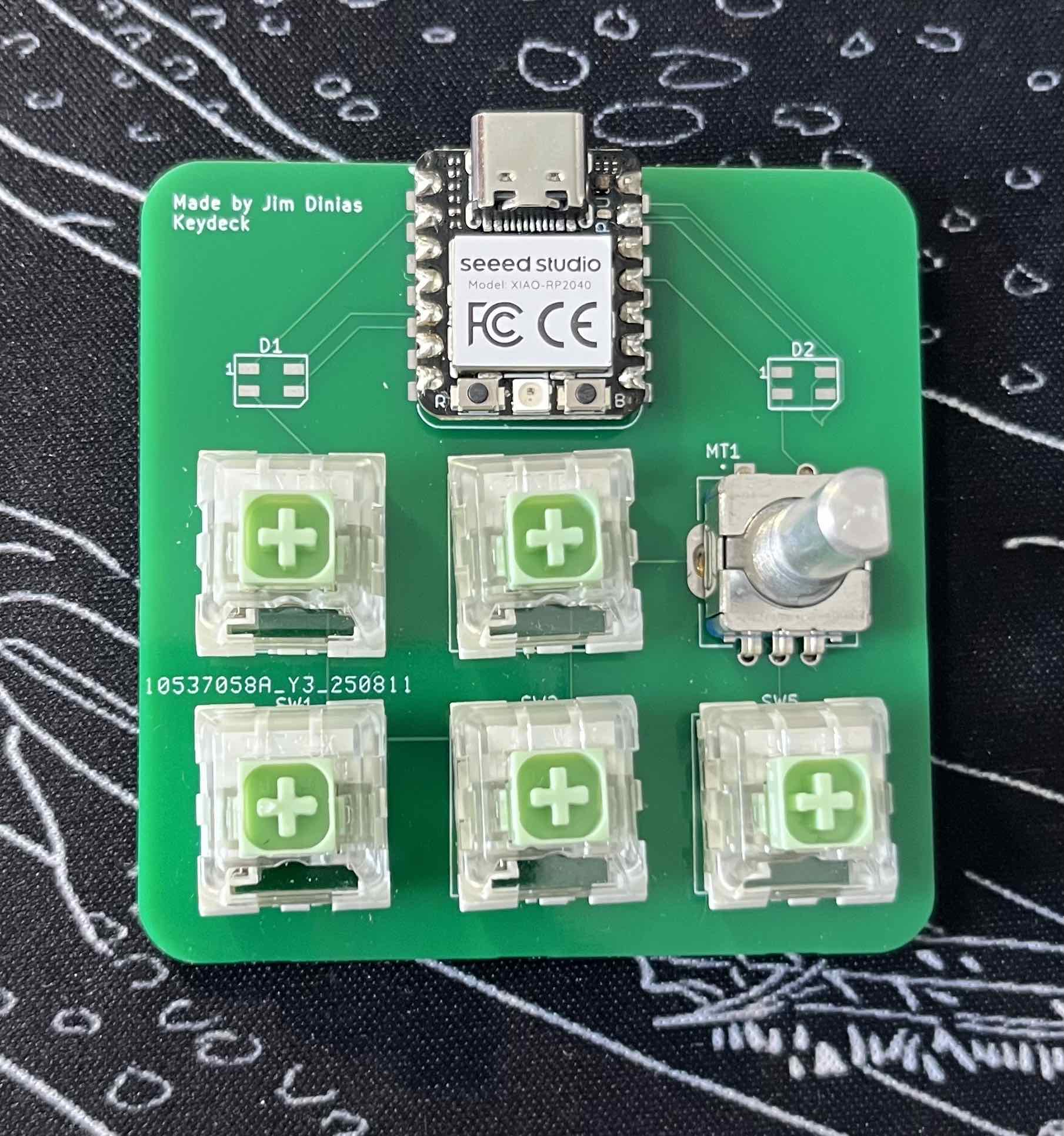

Keydeck, from the project README
From the project README

Main components on the Keydeck

XIAO-RP2040-DIP

Keydeck bill of materials (BOM)

9 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
PEC11R-4215F-S0024
MT1
5
SW_Push
SW1, SW2, SW3, SW4, SW5
2
SK6812MINI
D1, D2

Keydeck design files

The KiCad project lives in the jimmydin7/keydeck repository on GitHub; these links point at the commit this page was built from.

Keydeck: common questions

What microcontroller does the Keydeck use?

The Keydeck is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Keydeck PCB?

The Keydeck measures 61.9 × 62.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keydeck?

9 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Keydeck design files?

From the jimmydin7/keydeck repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Keydeck design in my own project?

The repository has no license, so all rights stay with jimmydin7. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keydeck without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
