Hackpad PCB layout, top view — open source RP2040/RP2350 board by jirachi123

About the Hackpad PCB

Hackpad is an open source RP2040/RP2350 PCB design by jirachi123, published on GitHub. It is a 2-layer board measuring 81 × 43.6 mm, with 7 components from 3 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 4 switches, 2 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

4-key macropad for highway. Made it to use for media controls as I use a 65% keyboard and don't have easily accessible media buttons. Might be used to play osu or other rhythm games.

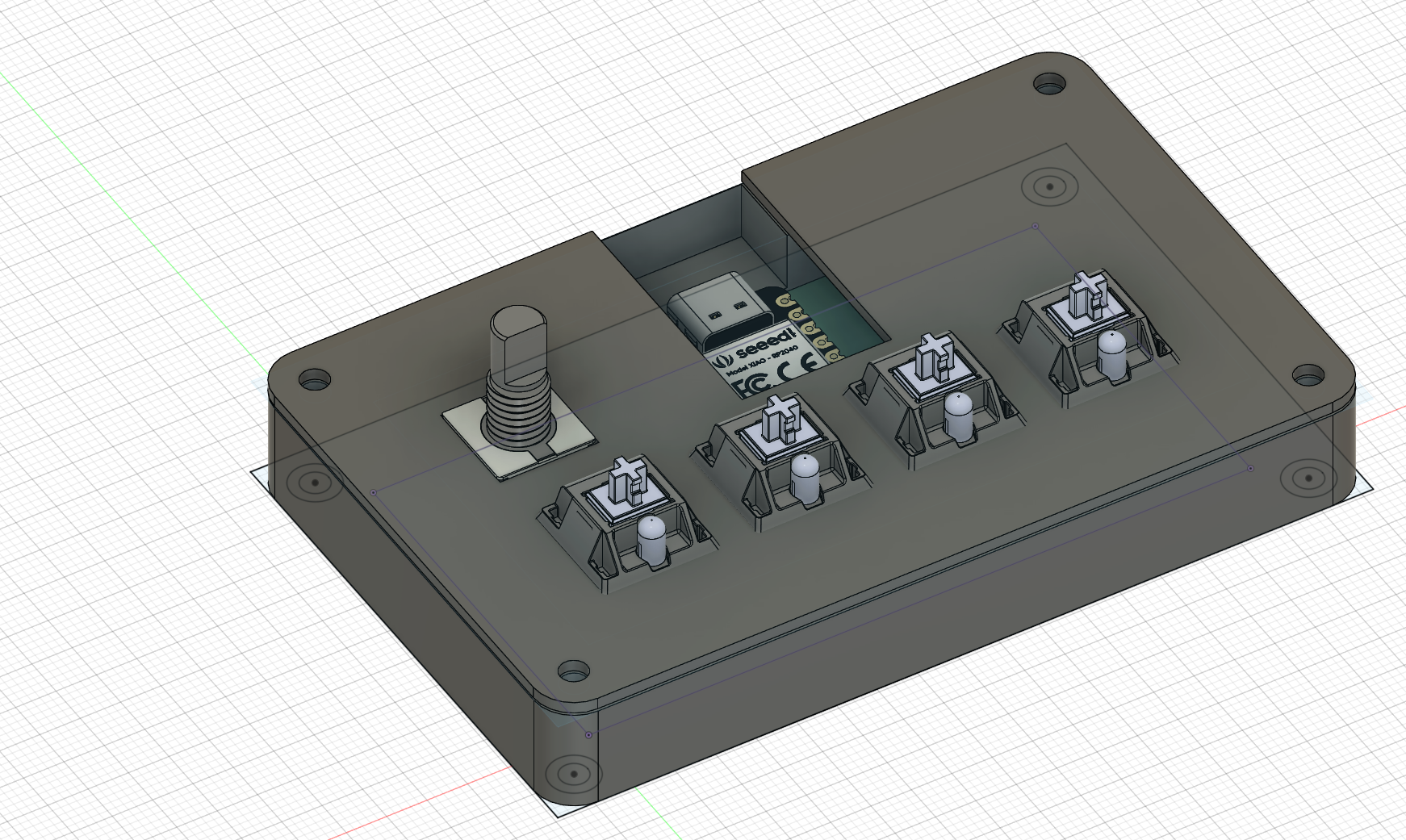

Hackpad, from the project README
From the project README

Main components on the Hackpad

XIAO-RP2040-DIP

Hackpad bill of materials (BOM)

7 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
4
SW_Push
SW1, SW2, SW3, SW4
2
SK6812MINI
D1, D2

Hackpad design files

The KiCad project lives in the jirachi123/hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

What microcontroller does the Hackpad use?

The Hackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Hackpad PCB?

The Hackpad measures 81 × 43.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

7 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the jirachi123/hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

The repository has no license, so all rights stay with jirachi123. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Hackpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
