OFT001v1
About the OFT001v1 PCB
OFT001v1 is an open source PCB design by jonasbjurel, published on GitHub under the Custom license license. It is a 4-layer board measuring 50.8 × 22.9 mm, with 40 components from 21 distinct parts.
Other key parts include the L80-M39, BME280 and MPU-9250. By type, the board carries 20 resistors, 8 capacitors, 3 ICs, 3 connectors, 3 LEDs and 2 switches.
It belongs with the sensors, rf & radio and iot & wireless designs in this gallery.
From the project

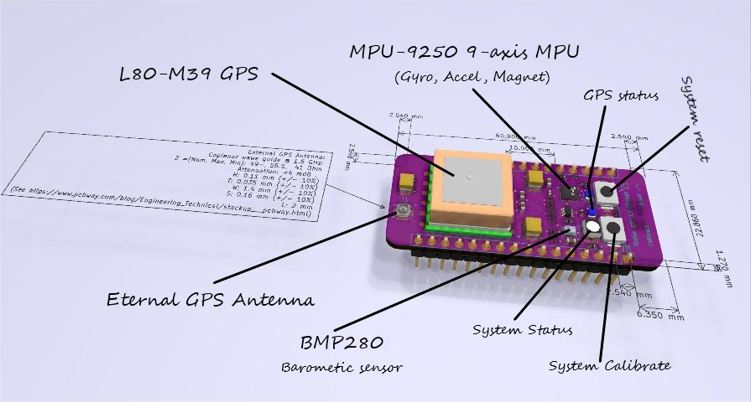

Figure 5: OFT001v1 Inertial navigation card overview
Figure 5: OFT001v1 Inertial navigation card overview
The OFT001v1 card has an L80-M39 GPS with a built-in patch antenna, and an optional connector for an external 50 Ohm active antenna; an MP-9250 3D axis for each of: Accelerometer, Gyroscope and Magnetometer; and a BMP280 Barometric pressure- humidity- and temperature sensor. Note that the axise's for the acelerometers and Gyrometers differs from those of the manetometers (x swaped with y, and neative Z), clearly marked on the board. The communication with these sensors have been segmented so that the MPU runs on its own high speed I2C…
Main components on the OFT001v1
OFT001v1 bill of materials (BOM)
40 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L80-M39 | L80-M39 | IC1 |
| 1 | BME280 | Bosch_LGA-8_2x2.5mm_P0.65mm_ClockwisePinNumbering | U1 |
| 1 | MPU-9250 | 3DInvenSense_QFN-24_3x3mm_P0.4mm | U2 |
| 1 | BC846BPN | SOT-363_SC-70-6 | Q1 |
| 1 | Ext GPS antenna connector | U.FL_Molex_MCRF_73412-0110_Vertical | J1 |
| 1 | PinHeader_01x12 | PinHeader_1x12_P2.54mm_Vertical_Down | J2 |
| 1 | PinHeader_01x16 | PinHeader_1x16_P2.54mm_Vertical_Down | J3 |
| 1 | RST | KSR | S1 |
| 1 | CALIB | KSR | S2 |
| 1 | EXT ANT | LEDC1608X65N | LED1 |
| 1 | GPS LCK | SMLD15YWT86 | LED2 |
| 1 | System Status | AVAGO_PLCC4 | LED3 |
| 4 | 10nF | CAPC1608X87N | C1, C2, C3, C4 |
| 1 | 100nF | CAPC1005X55N | C5 |
| 3 | 10uF | CAPPM3528X210N | C6, C7, C8 |
| 7 | 10k | RESC0603X26N | R1, R8, R9, R15, R16, R17, R18 |
| 4 | 1k | RESC0603X26N | R2, R6, R19, R20 |
| 2 | 100k | RESC0603X26N | R3, R5 |
| 2 | NULL | RESC0603X26N | R4, R7 |
| 4 | 62 | RESC1005X40N | R10, R11, R12, R13 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 130 | RESC1005X40N | R14 |
OFT001v1 design files
The KiCad project lives in the jonasbjurel/open_telemetry_HW repository on GitHub; these links point at the commit this page was built from.
OFT001v1: common questions
How big is the OFT001v1 PCB?
The OFT001v1 measures 50.8 × 22.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the OFT001v1?
40 components, from 21 distinct parts. The full bill of materials is listed on this page.
Where can I download the OFT001v1 design files?
From the jonasbjurel/open_telemetry_HW repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the OFT001v1 design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
