About the Jiffy PCB

Jiffy is an open source PCB design by jonasblixt, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 110 × 46 mm, with 199 components from 53 distinct parts.

Other key parts include the MCIMX6G2AVM07, MT41K512M16HA-125, LP3470M5-3.08, FAN53541 and FAN5355UC00. By type, the board carries 110 capacitors, 53 resistors, 14 ICs, 5 connectors, 5 inductors and 4 modules.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

IMX6UL Development board

This is a work in progress. The first version of the hardware works fine but some simplifications and polishing will be done for the R2 release.

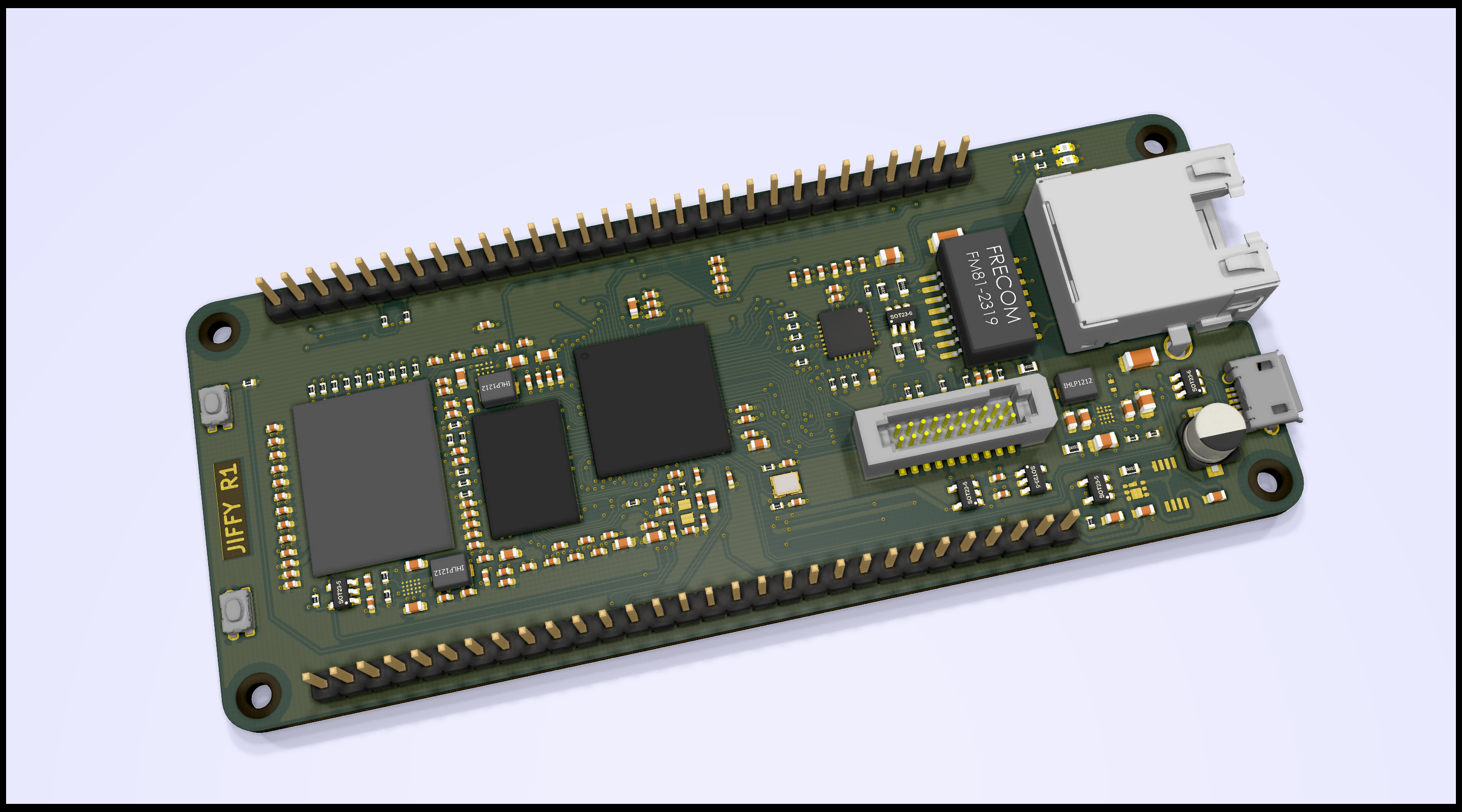

Jiffy, from the project README
From the project README

Main components on the Jiffy

MCIMX6G2AVM07MT41K512M16HA-125LP3470M5-3.08FAN53541FAN5355UC00FEMC004GTTE7-T13-17USBLC6-4NCP360SNAET1GLM74610SN74AHC1G08LAN8710NCV551SN33T1G

Jiffy bill of materials (BOM)

199 components, 53 distinct parts.

QtyPartRefs
1
MCIMX6G2AVM07
U1
1
MT41K512M16HA-125
U2
1
LP3470M5-3.08
U3
2
FAN53541
U4, U13
1
FAN5355UC00
U5
1
FEMC004GTTE7-T13-17
U6
2
USBLC6-4
U7, U12
1
NCP360SNAET1G
U8
1
LM74610
U9
1
SN74AHC1G08
U10
1
LAN8710
U11
1
NCV551SN33T1G
U14
4
MHNP_2.5mm
M1, M2, M3, M4
1
CSD17313Q2Q1
Q1
1
NX2012SA-32.768K-STD-MUB-1
X1
1
NX2520SA-24.000000MHZ
X2
1
DX4R005JJ2R1800
J1
1
RJE72-188-1401
J2
1
TFM-110-02-S-D-WT
J3
2
Conn_01x30
J4, J5
Show 33 more
QtyPartRefs
2
KMR631NGULCLFS
PB1, PB2
1
PT61018PEL
T1
2
LED0402_SML-P11MTT86
D1, D2
2
BL0603_BLM18KG121TN1D
FB1, FB2
2
IHLP1212_470n_0
L1, L3
1
IHLP1212_1u_1
L2
78
C0402_1u_10Vdc_X5R
C1, C3, C4, C5, C6, C9, C10, C11 +70
6
C0603_22u_10Vdc_X5R
C7, C22, C23, C25, C31, C45
1
C0402_10u_2.5Vdc_X5R
C8
7
C0603_10u_10Vdc_X7R
C63, C64, C66, C71, C95, C100, C102
1
C0402_100n_100Vdc_X5R
C67
2
C0402_10n_50Vdc_X7R
C68, C69
1
C0603_4u7_16Vdc_X7R
C70
4
C0402_15p_100Vdc_C0G
C72, C73, C74, C75
3
C0603_1u_25Vdc_X7R
C89, C90, C94
2
C0805_10u_25Vdc_X7R
C91, C92
1
PCAP_220u_11
C93
1
C0805_20n_50Vdc_X7R
C108
3
C1206_1n5_1000Vdc_X7R
C111, C112, C113
5
R0402_100R
R1, R2, R9, R16, R17
15
R0402_46k40
R3, R4, R10, R18, R19, R21, R22, R24 +7
2
R0402_240R
R5, R8
11
R0402_10k
R6, R7, R12, R30, R33, R37, R40, R45 +3
1
R0402_66k50
R11
3
R0402_100k
R13, R14, R15
1
R0402_2M20
R20
1
R0402_22R
R23
4
R0402_1k50
R31, R32, R49, R50
2
R0402_330R
R34, R38
1
R0402_12k10
R35
4
R0603_49R90
R36, R39, R41, R42
2
R0603_75R
R43, R44
1
R0402_14k70
R52

Jiffy design files

The KiCad project lives in the jonasblixt/jiffy repository on GitHub; these links point at the commit this page was built from.

Jiffy: common questions

How big is the Jiffy PCB?

The Jiffy measures 110 × 46 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Jiffy?

199 components, from 53 distinct parts. The full bill of materials is listed on this page.

Where can I download the Jiffy design files?

From the jonasblixt/jiffy repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Jiffy design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which jonasblixt chose for the repository.
