Mains transformer

JordanAceto·msm_stereo_LPF·circuit_boards/mains_transformer/kicad_7/mains_transformer.kicad_pcb

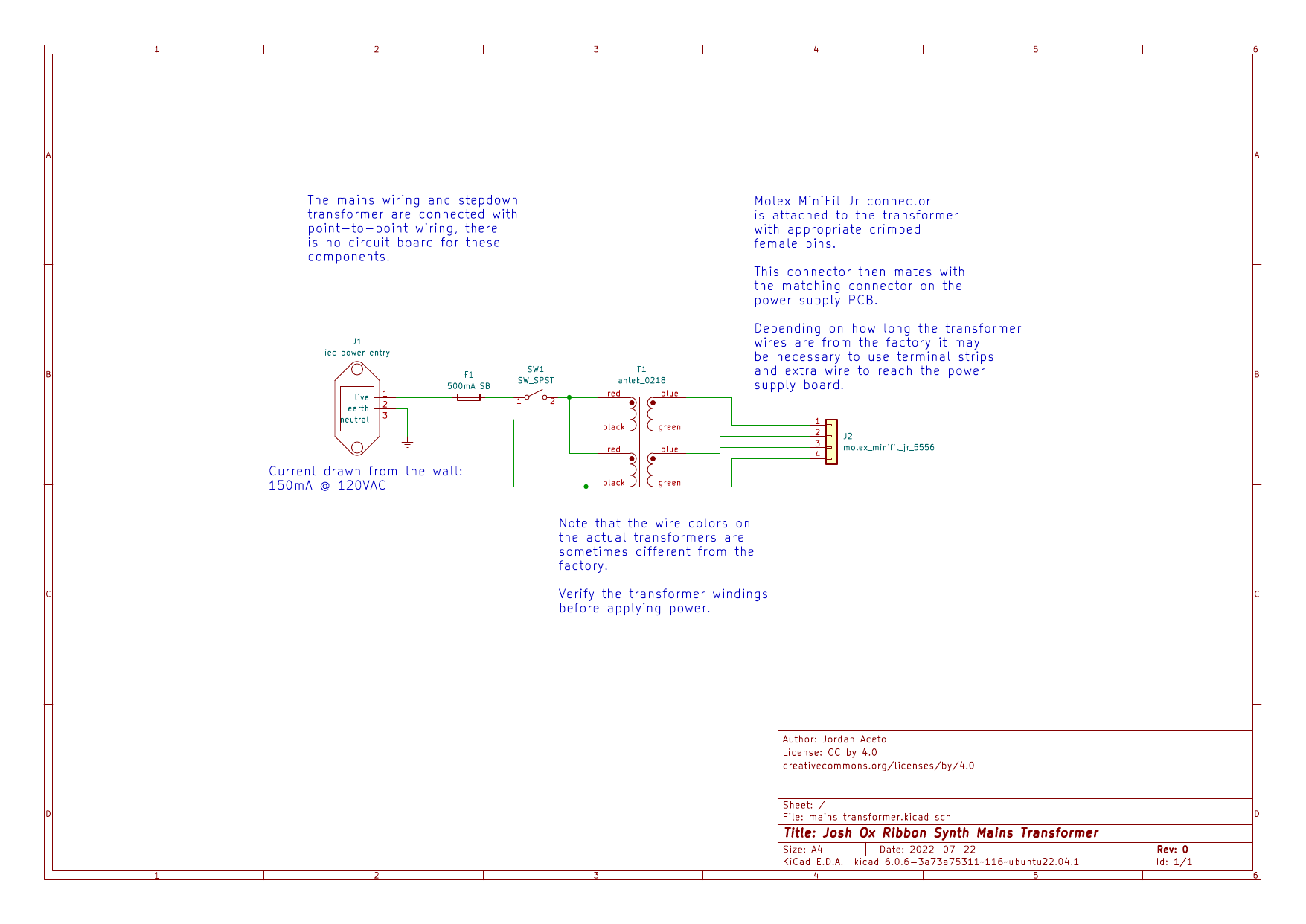

Mains transformer
Simulate this board

About the Mains transformer PCB

Mains transformer is an open source PCB design by JordanAceto, published on GitHub. It is a 2-layer board, with 4 components from 4 distinct parts.

By type, the board carries 2 connectors, 1 fuse and 1 transformer.

It belongs with the audio designs in this gallery.

From the project

Stereo voltage controlled lowpass filter FX box with compression and distortion. For Matt

Mains transformer bill of materials (BOM)

4 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
iec_power_entry
J1
1
molex_minifit_jr_5556
J2
1
500mA SB
F1
1
antek_0118
T1

Mains transformer design files

The KiCad project lives in the JordanAceto/msm_stereo_LPF repository on GitHub; these links point at the commit this page was built from.

Mains transformer: common questions

How big is the Mains transformer PCB?

The Mains transformer has 2 copper layers and is 1.6 mm thick.

How many components are on the Mains transformer?

4 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mains transformer design files?

From the JordanAceto/msm_stereo_LPF repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Mains transformer design in my own project?

The repository has no license, so all rights stay with JordanAceto. Use it as a reference, and ask the author before reusing the design.
