1.2-pwm led fade

About the 1.2-pwm led fade PCB

1.2-pwm led fade is an open source ESP32 PCB design by josh4858, published on GitHub. It is a board, with 3 components from 3 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. By type, the board carries 1 IC, 1 LED and 1 resistor.

From the project

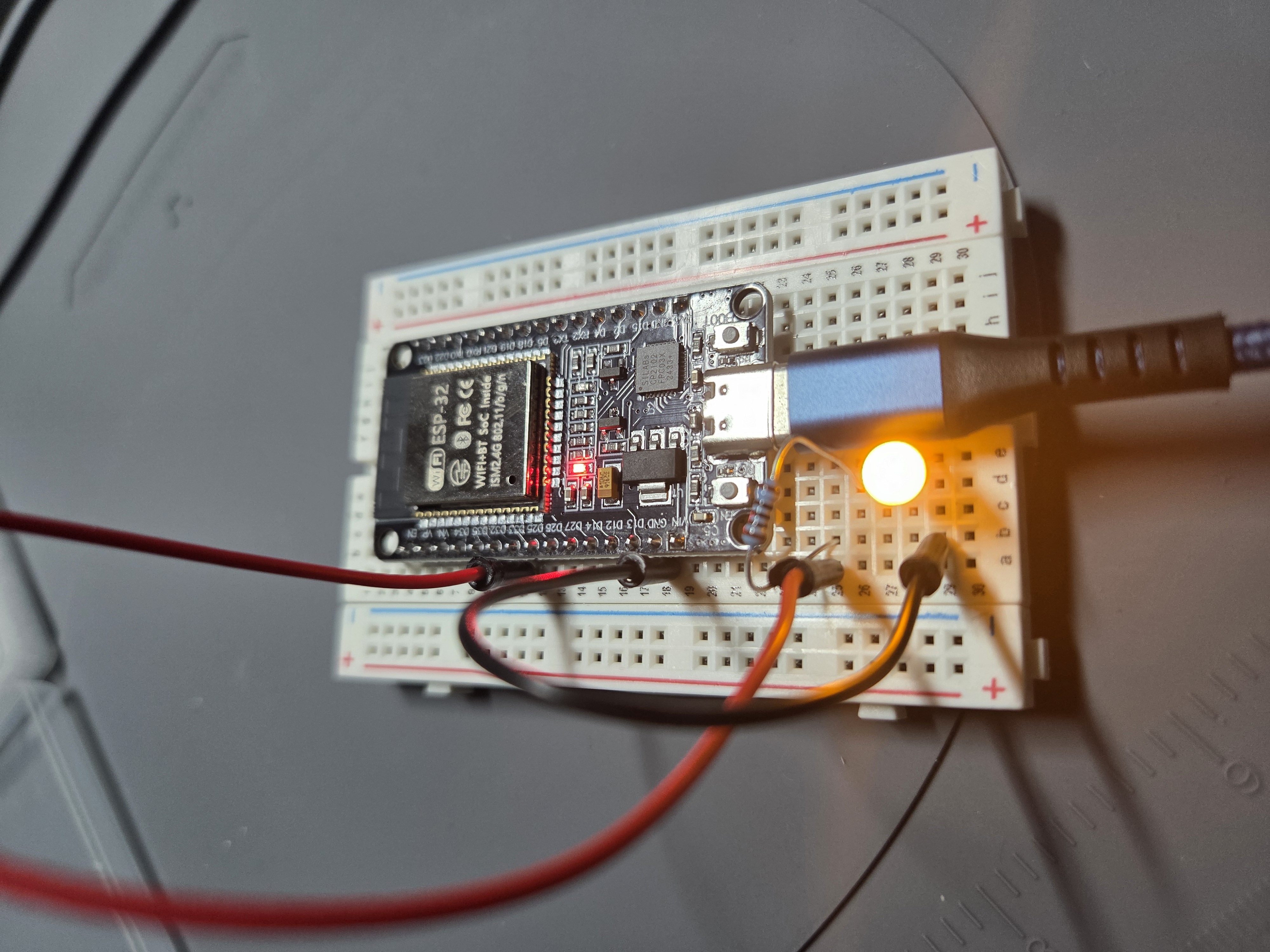

Sunrise desk-lamp dimmer: an ESP32 fades an LED smoothly from off to full brightness and back over a continuous 3-second cycle, using PWM (LEDC) with no visible flicker or stepping.

Sunrise desk-lamp dimmer: an ESP32 fades an LED smoothly from off to full brightness and back over a continuous 3-second cycle, using PWM (LEDC) with no visible flicker or stepping.

- [x] Requirements defined - [x] Components selected & BOM complete - [x] Design calculations complete - [x] Schematic captured (KiCad) - [x] Prototype built & verified - [ ] PCB ordered - [ ] Assembled & bring-up tested

Main components on the 1.2-pwm led fade

ESP32-WROOM-32

1.2-pwm led fade bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
Yellow 5mm LED
LED1
1
100
R1

1.2-pwm led fade design files

The KiCad project lives in the josh4858/1.2-pwm-led-fade repository on GitHub; these links point at the commit this page was built from.

1.2-pwm led fade: common questions

What microcontroller does the 1.2-pwm led fade use?

The 1.2-pwm led fade is built around the ESP32-WROOM-32, from the ESP32 family.

How many components are on the 1.2-pwm led fade?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the 1.2-pwm led fade design files?

From the josh4858/1.2-pwm-led-fade repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the 1.2-pwm led fade design in my own project?

The repository has no license, so all rights stay with josh4858. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 1.2-pwm led fade without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
