Z99-development

About the Z99-development PCB

Z99-development is an open source PIC PCB design by Jurrie, published on GitHub under the MIT license. It is a board, with 99 components from 30 distinct parts.

Its main chip is the PIC18F45KXX, from the PIC family. Other key parts include the TO220, L7812, 6N136, ULN2803A and HEF4093B. By type, the board carries 35 capacitors, 20 connectors, 15 diodes, 13 resistors, 7 ICs and 7 modules.

From the project

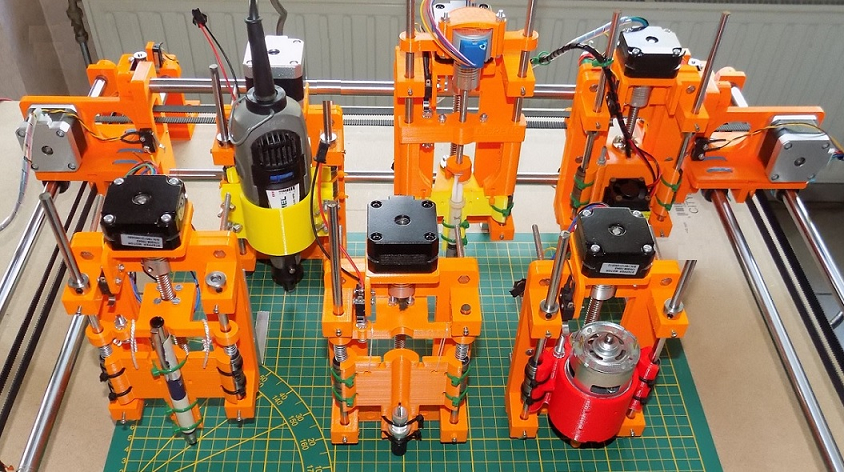

Z99 is a multifunctional 4 axis machine.

Z99 is a multifunctional 4 axis machine.

- Drawing on screen and large format plot output, up to A3+. - Plot a PCB with etch resist ink. - Plot a circuit with conductive ink. - Plot a large format poster. - Cut vinyl letters. - Cut paper. - Drill holes. - Mill a PCB. - Engrave, cut and make a solder pad masks with a laser.

After installation, the subdirectories are: - \3Dparts: Contains all .scad source code and .stl files. - \CSharpCode: The C# source code for Visual Studio 2015, 2017, 2022. - If your Windows system has difficulties to run XYZ.exe, download Visual Studio Community and open…

Main components on the Z99-development

TO220L7812PIC18F45KXX6N136ULN2803AHEF4093B

Z99-development bill of materials (BOM)

99 components, 30 distinct parts.

QtyPartRefs
1
TO220
IC1
1
L7812
IC2
1
PIC18F45KXX
IC3
2
6N136
IC5, IC6
1
ULN2803A
IC7
1
HEF4093B
U4
7
DRV8825
M1, M2, M3, M4, M5, M6, M7
1
14.xxMHZ
X1
3
Screw_Terminal_01x02
Cn1, Cn6, Cn7
1
Screw_Terminal_01x04
Cn2
2
Conn_01x05_Male
Cn3, Cn5
1
Conn_01x02_Female
Cn4
6
ConnZ
Cn8, Cn9, Cn10, Cn11, Cn12, Cn13
7
Conn_01x04_Male
Cn14, Cn15, Cn16, Cn17, Cn18, Cn19, Cn20
1
Jumper_2_Open
JP1
1
UF5401
D1
1
1N4007
D2
1
1N4148
D3
12
1N4148
D4, D5, D6, D7, D8, D9, D10, D11 +4
2
22p
C1, C2
Show 10 more
QtyPartRefs
20
100n
C3, C4, C5, C6, C7, C8, C9, C10 +12
1
C27
C28
2
100MF16V
C33, C44
1
100MF 16V
C43
8
100MF 50V
C45, C47, C48, C49, C50, C51, C52, C53
1
100MF
C54
1
47
R1
2
390
R2, R3
6
1K
R4, R5, R6, R7, R8, R9
4
10K
R14, R19, R20, R21

Z99-development design files

The KiCad project lives in the Jurrie/Z99-development repository on GitHub; these links point at the commit this page was built from.

Z99-development: common questions

What microcontroller does the Z99-development use?

The Z99-development is built around the PIC18F45KXX, from the PIC family.

How many components are on the Z99-development?

99 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Z99-development design files?

From the Jurrie/Z99-development repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Z99-development design in my own project?

Yes, under the terms of its MIT license, which Jurrie chose for the repository.

Can I test firmware for the Z99-development without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
