SiPDrive

Just4Stan·SiPDrive·hw/SiPDrive/SiPDrive.kicad_pcb

SiPDrive PCB layout, top view — open source board by Just4Stan
Simulate this board

About the SiPDrive PCB

SiPDrive is an open source PCB design by Just4Stan, published on GitHub under the CC-BY-NC-4.0 license. It is a 6-layer board measuring 20 × 27 mm, with 89 components from 28 distinct parts.

Other key parts include the STSPIN32G4, MT6701, TCAN1057, C39673733 and SH-3P. By type, the board carries 36 resistors, 35 capacitors, 7 ICs, 6 transistors, 3 diodes and 2 inductors.

It belongs with the robotics & motion designs in this gallery.

From the project

Compact FOC motor controller firmware + hardware (STSPIN32G4 + MT6701 + CAN-FD) for QDD actuators

Compact Field-Oriented Control (FOC) firmware and hardware for QDD actuators

SiPDrive is an open-source motor controller built around the STSPIN32G4 System-in-Package, MT6701 magnetic encoder, and CAN-FD communication. It targets compact quasi-direct-drive (QDD) actuator applications with torque, position, and speed control.

- 40 kHz FOC current loop with hardware CORDIC acceleration - CAN-FD command/telemetry (1 Mbps nominal, 5 Mbps data) - Current and position control modes - 14-bit magnetic encoder (MT6701 SSI/ABZ selectable via solder jumper) - On-device encoder calibration with…

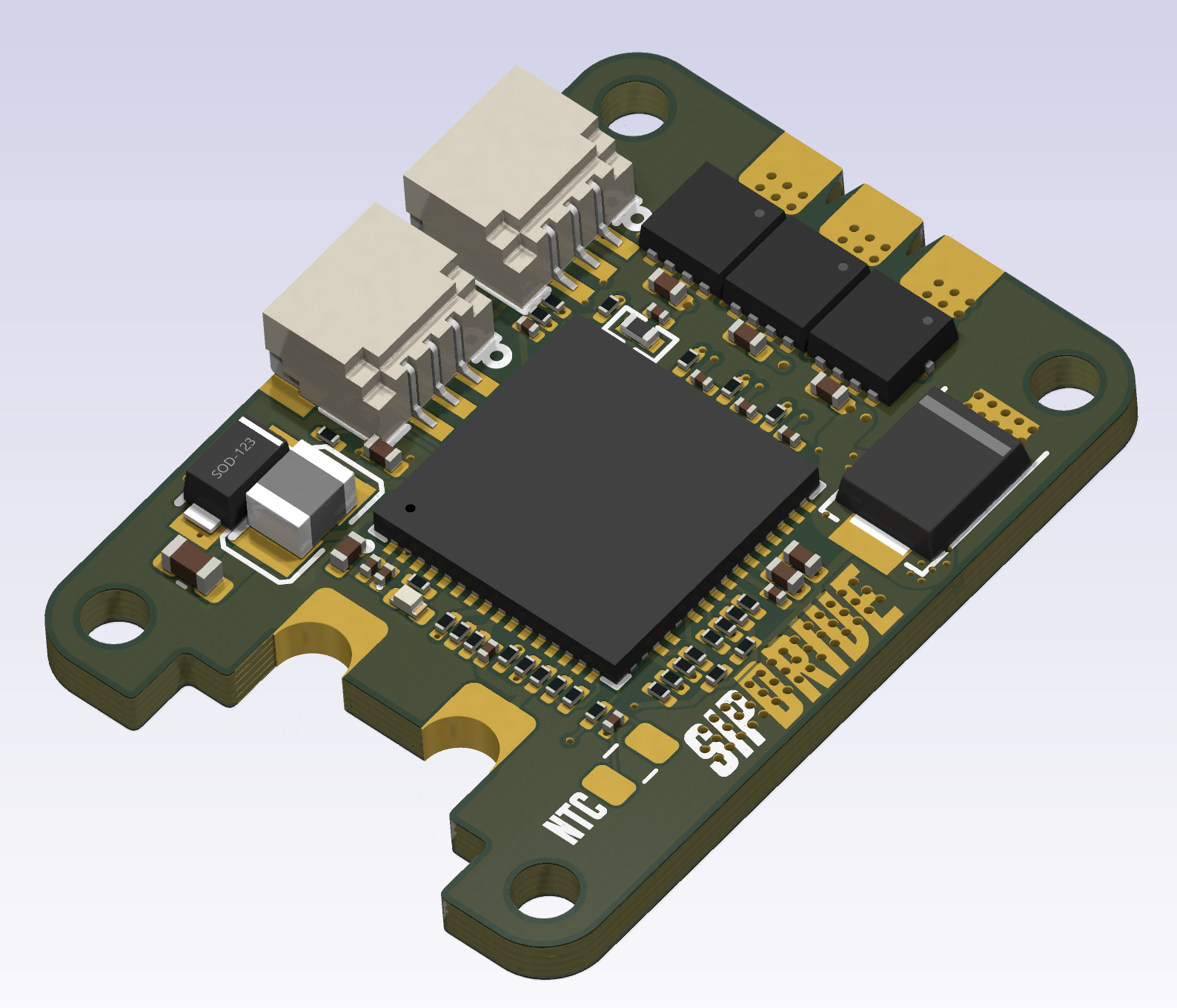

SiPDrive, from the project README
From the project README

Main components on the SiPDrive

STSPIN32G4MT6701TCAN1057C39673733SH-3P

SiPDrive bill of materials (BOM)

89 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STSPIN32G4
U1
1
MT6701
U2
1
TCAN1057
U3
1
C39673733
LDO
U4
2
SH-3P
U5, U6
1
~
U7
6
SP40N03GNJ
Q1, Q2, Q3, Q4, Q5, Q6
1
DSK110
D1
1
LED
D2
1
SMBJ26A_C908802
D3
1
BLM15HD102SN1D
FB1
1
YSMC252012
L1
7
100N
100n
C1, C2, C3, C4, C5, C10, C12
15
10UF
10uF
C6, C8, C18, C19, C20, C21, C24, C25 +7
1
220N
220n
C7
1
10UF
10uF
C9
1
10UF
10uF
C11
6
1UF
1uF
C13, C17, C27, C28, C29, C31
4
33N
33n
C14, C15, C16, C30
3
SME08A1FR002T
R1, R19, R21
Show 8 more
QtyPartRefs
7
20R
R2, R3, R4, R5, R7, R8, R18
7
10K
10k
R6, R9, R11, R13, R16, R17, R37
2
100K
100k
R10, R15
1
NCP15
R12
1
NCP15
R14
6
1.5K
1.5k
R22, R23, R28, R29, R33, R34
3
15K
15k
R24, R27, R32
6
30K
30k
R25, R26, R30, R31, R35, R36

SiPDrive design files

The KiCad project lives in the Just4Stan/SiPDrive repository on GitHub; these links point at the commit this page was built from.

SiPDrive: common questions

How big is the SiPDrive PCB?

The SiPDrive measures 20 × 27 mm, has 6 copper layers and is 1.5408 mm thick.

How many components are on the SiPDrive?

89 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SiPDrive design files?

From the Just4Stan/SiPDrive repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SiPDrive design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
