Standalone ATmega382 PCB layout, top view — open source AVR/Arduino board by justfulofluck

About the Standalone ATmega382 PCB

Standalone ATmega382 is an open source AVR/Arduino PCB design by justfulofluck, published on GitHub. It is a 2-layer board measuring 33 × 58.4 mm, with 9 components from 7 distinct parts.

Its main chip is the ATMEGA328P-PU, from the AVR/Arduino family. By type, the board carries 2 connectors, 2 capacitors, 1 IC, 1 crystal, 1 switch and 1 resistor.

It belongs with the iot & wireless, usb & debug tools and dev boards & breakouts designs in this gallery.

From the project

The Standalone ATmega 328 Board is a versatile hardware module designed for embedded systems development and IOT rapid prototyping.

A minimal, cost-effective Arduino-compatible development board based on the ATmega328P microcontroller.

This project provides a complete KiCad design for a standalone ATmega328P-based development board. It replicates the core functionality of an Arduino Uno while eliminating unnecessary components (such as the USB-to-serial converter), making it ideal for:

- Embedded Systems Development – Compact footprint for permanent installations - IoT Prototyping – Low-cost solution for sensor nodes and controllers - Production Deployment – Ready-to-manufacture Gerber files included - Educational…

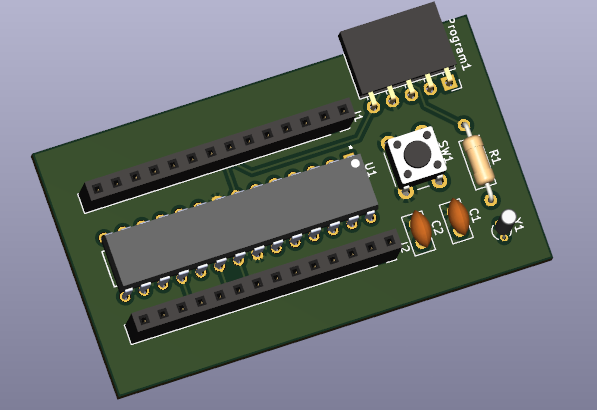

Standalone ATmega382, from the project README
From the project README

Main components on the Standalone ATmega382

ATMEGA328P-PU

Standalone ATmega382 bill of materials (BOM)

9 components, 7 distinct parts.

QtyPartRefs
1
ATMEGA328P-PU
U1
1
Crystal
Y1
2
PINHD_1x14_Female
J1, J2
1
PINHD_1x5_Female
Program1
1
Push_Button
SW1
2
22 PF
C1, C2
1
10K
R1

Standalone ATmega382 design files

The KiCad project lives in the justfulofluck/Standalone_ATmega382 repository on GitHub; these links point at the commit this page was built from.

Standalone ATmega382: common questions

What microcontroller does the Standalone ATmega382 use?

The Standalone ATmega382 is built around the ATMEGA328P-PU, from the AVR/Arduino family.

How big is the Standalone ATmega382 PCB?

The Standalone ATmega382 measures 33 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Standalone ATmega382?

9 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Standalone ATmega382 design files?

From the justfulofluck/Standalone_ATmega382 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Standalone ATmega382 design in my own project?

The repository has no license, so all rights stay with justfulofluck. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Standalone ATmega382 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
