About the SpeedRadar PCB
SpeedRadar is an open source AVR/Arduino PCB design by jwchang418, published on GitHub. It is a 2-layer board measuring 47 × 40 mm, with 34 components from 19 distinct parts.
Its main chip is the ATmega328P-PU, from the AVR/Arduino family. Other key parts include the LM358 and L78L05_TO92. By type, the board carries 14 capacitors, 9 resistors, 4 connectors, 3 ICs, 1 crystal and 1 diode.
It belongs with the sensors designs in this gallery.
From the project

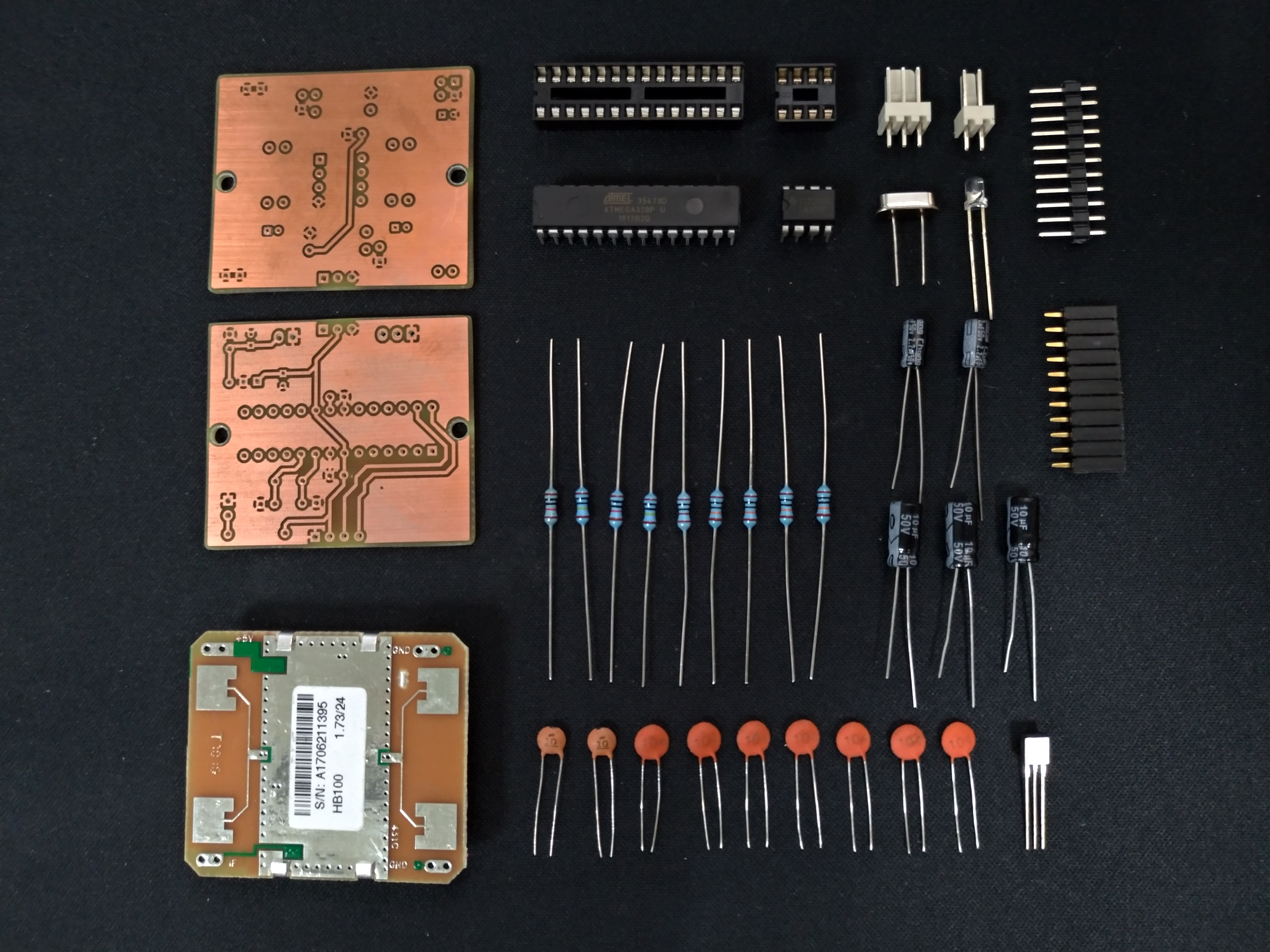

This project is designed by Jun-Wei Chang for a simple speed radar by using a few of electronic components.

Main components on the SpeedRadar
SpeedRadar bill of materials (BOM)
34 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM358 | DIP-8_W7.62mm | U1 |
| 1 | ATmega328P-PU | DIP-28_W7.62mm | U2 |
| 1 | L78L05_TO92 | TO-92_Inline_Wide | U3 |
| 1 | 16Mhz | Crystal_HC49-4H_Vertical | Y1 |
| 2 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J1, J2 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | Conn_01x03 | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J4 |
| 1 | Conn_01x02 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | DC_in1 |
| 1 | HB100-KiCAD-rescue | HB100_ver2 | HB1 |
| 1 | LED | LED_D3.0mm | D1 |
| 3 | 10uF | CP_Radial_D4.0mm_P2.00mm | C1, C10, C12 |
| 7 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C2, C3, C4, C6, C8, C9, C11 |
| 2 | 1uF | CP_Radial_D4.0mm_P2.00mm | C5, C7 |
| 2 | 10pF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C13, C14 |
| 4 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R5, R6 |
| 2 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R7 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | 100M | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R9 |
SpeedRadar design files
The KiCad project lives in the jwchang418/SpeedRadar repository on GitHub; these links point at the commit this page was built from.
SpeedRadar: common questions
What microcontroller does the SpeedRadar use?
The SpeedRadar is built around the ATmega328P-PU, from the AVR/Arduino family.
How big is the SpeedRadar PCB?
The SpeedRadar measures 47 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SpeedRadar?
34 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the SpeedRadar design files?
From the jwchang418/SpeedRadar repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the SpeedRadar design in my own project?
The repository has no license, so all rights stay with jwchang418. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the SpeedRadar without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
