Pando - Right PCB layout, top view — open source board by jyap808

About the Pando - Right PCB

Pando - Right is an open source PCB design by jyap808, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 144.1 × 121.5 mm, with 70 components from 9 distinct parts.

Other key parts include the PCA9555PW and PRTR5V0U2X. By type, the board carries 29 diodes, 2 ICs, 2 resistors, 1 connector, 1 fuse and 1 capacitor.

It belongs with the keyboards designs in this gallery.

From the project

58 key split keyboard. Integrated STM32G0B1KBT6, USB-C interconnect, PCA9555 IO Expander design

Pando is a wired 58-key column-staggered split keyboard. It uses an integrated MCU design on the STM32 platform (STM32G0B1) with an IO expander (PCA9555) on the secondary half, connected over USB-C.

- STM32G0B1KBT6 MCU (64 MHz Cortex-M0+, 144 KB SRAM) - PCA9555 IO expander on the secondary half - USB-C split communication with ESD protection on all ports - Hotswap switch sockets - Single-sided SMD components for hotplate soldering - Vial firmware for keymap configuration - Same key layout as the Pando58, but as an assembled PCB instead of a DIY kit

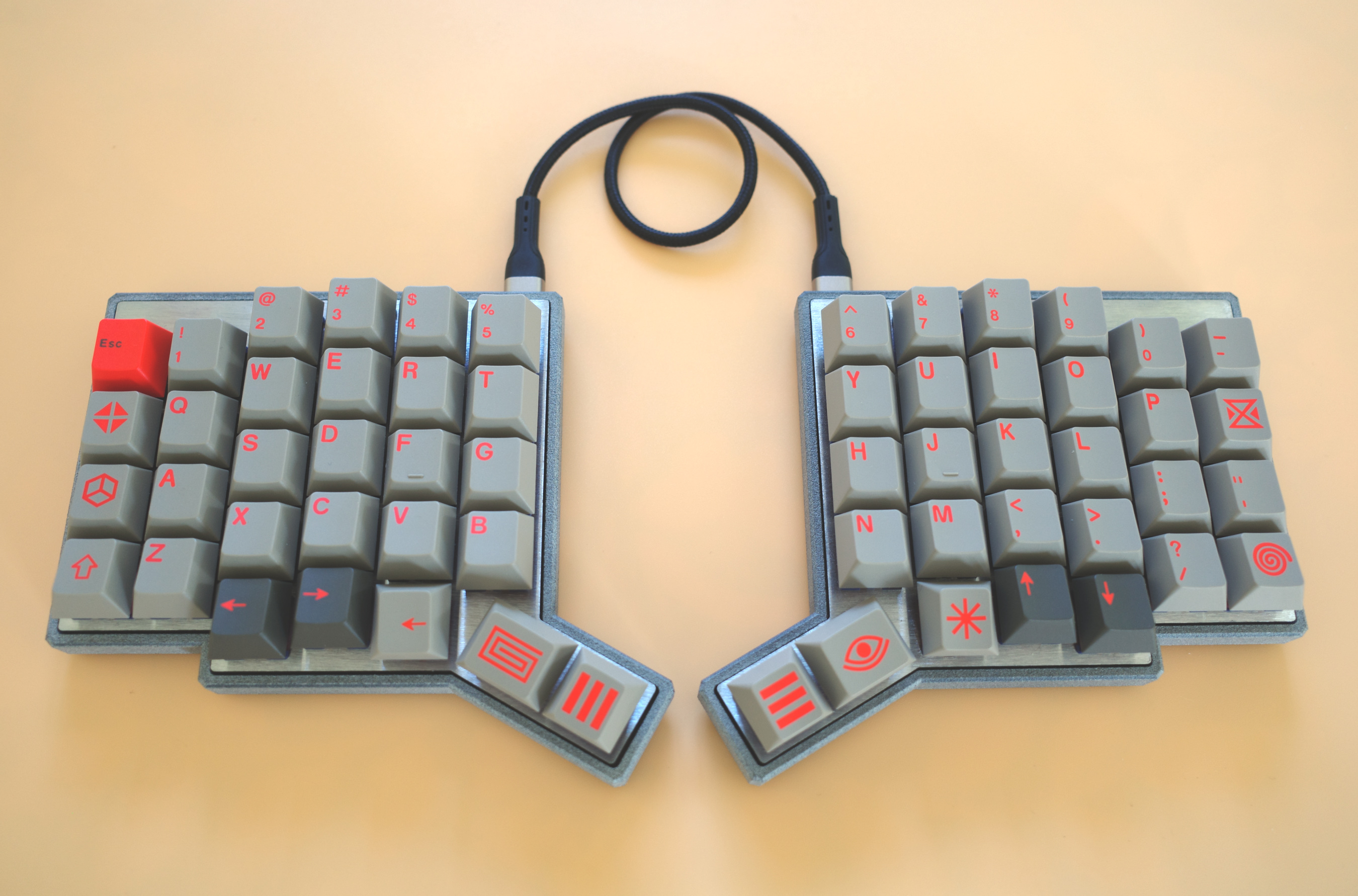

Pando - Right, from the project README
From the project README

Main components on the Pando - Right

PCA9555PWPRTR5V0U2X

Pando - Right bill of materials (BOM)

70 components, 9 distinct parts.

QtyPartRefs
1
PCA9555PW
U1
1
PRTR5V0U2X
U2
1
USB_C_Receptacle_USB2.0_14P
J1
1
500mA
F1
5
—
H1, H2, H3, H4, H5
29
MX_SW_HS
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +21
29
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +21
1
100nF
C1
2
5.1k
R1, R2

Pando - Right design files

The KiCad project lives in the jyap808/pando repository on GitHub; these links point at the commit this page was built from.

Pando - Right: common questions

How big is the Pando - Right PCB?

The Pando - Right measures 144.1 × 121.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pando - Right?

70 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pando - Right design files?

From the jyap808/pando repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pando - Right design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which jyap808 chose for the repository.
