Bad raspi jamma
About the Bad raspi jamma PCB
Bad raspi jamma is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a board, with 39 components from 22 distinct parts.
Other key parts include the MCP23017_SO_PLAYER1, LM4952TS/NOPB and MCP23017_SO_PLAYER2. By type, the board carries 8 capacitors, 4 connectors, 4 resistors, 3 ICs and 1 switch.
It belongs with the audio designs in this gallery.
From the project
A very bad example of a Raspberry PI to Jamma adapter
- Description - Bugs and feature requests - Copyright and license
This is a very bad example of a Raspberry PI with 40pin GPIO to JAMMA adapter but it is a Christmas present and free to use.
It uses the VGA666 AD video converter for Video output, an LM4952TS as an audio amplifier (class D) and MCP23017 I2C chip for the JAMMA controls.
Bugs and feature requests will be disabled as this is a bad example. If you want you can use it on your own risk.
Main components on the Bad raspi jamma
Bad raspi jamma bill of materials (BOM)
39 components, 22 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP23017_SO_PLAYER1 | SOIC-28W_7.5x17.9mm_P1.27mm | U1 |
| 1 | LM4952TS/NOPB | LM4952_TO97P1435X475-10N | U2 |
| 1 | MCP23017_SO_PLAYER2 | SOIC-28W_7.5x17.9mm_P1.27mm | U3 |
| 1 | Conn_01x04 | Molex_KK-254_AE-6410-04A_1x04_P2.54mm_Vertical | J1 |
| 1 | CONN_02X20 | PinSocket_2x20_P2.54mm_Vertical | J2 |
| 1 | JAMMA_edge | J3 | |
| 1 | Kick Harness | Molex_KK-254_AE-6410-08A_1x08_P2.54mm_Vertical | J4 |
| 3 | 499 | R_0805_2012Metric | RB1, RG1, RR1 |
| 3 | 1K | R_0805_2012Metric | RB2, RG2, RR2 |
| 3 | 2K | R_0805_2012Metric | RB3, RG3, RR3 |
| 3 | 4.22K | R_0805_2012Metric | RB4, RG4, RR4 |
| 3 | 8.06K | R_0805_2012Metric | RB5, RG5, RR5 |
| 3 | 16.2K | R_0805_2012Metric | RB6, RG6, RR6 |
| 1 | 50k | Potentiometer_Alpha_RD901F-40-00D_Single_Vertical | RV1 |
| 1 | AUDIO SWITCH | SW_E-Switch_EG1271_DPDT | SW1 |
| 2 | 100n | C_0805_2012Metric | C1, C4 |
| 2 | 470n | C_0805_2012Metric | C2, C3 |
| 1 | 10u | C_0805_2012Metric | C5 |
| 1 | 4.7u | C_0805_2012Metric | C6 |
| 2 | 470uF 16v | CP_Elec_10x14.3 | C7, C8 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 120 | R_0805_2012Metric | R1, R2 |
| 2 | 220 | R_0805_2012Metric | R3, R4 |
Bad raspi jamma design files
The KiCad project lives in the KabukiFlux/bad_raspi_jamma repository on GitHub; these links point at the commit this page was built from.

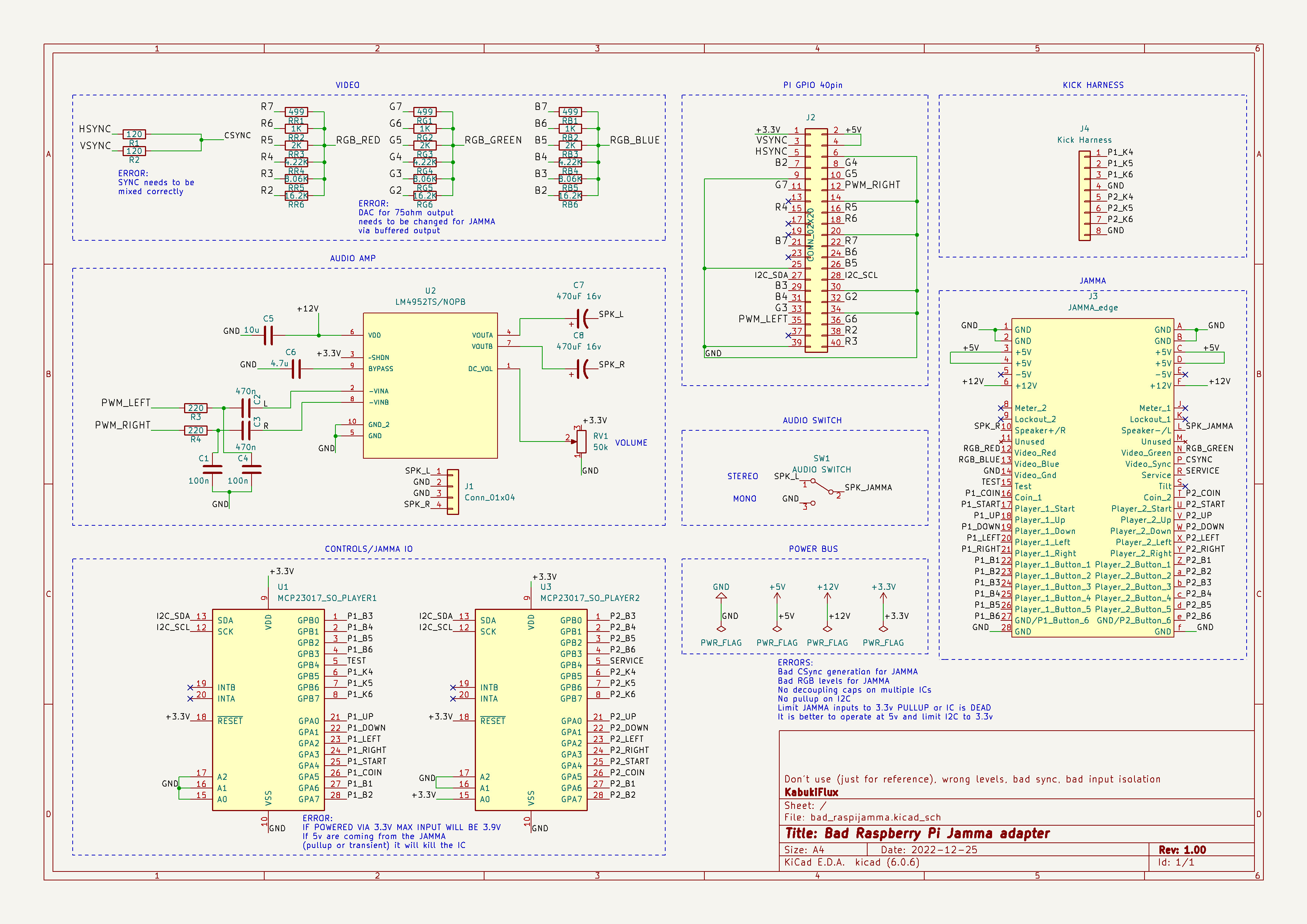

- Schematicbad_raspijamma.kicad_sch
Bad raspi jamma: common questions
How many components are on the Bad raspi jamma?
39 components, from 22 distinct parts. The full bill of materials is listed on this page.
Where can I download the Bad raspi jamma design files?
From the KabukiFlux/bad_raspi_jamma repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Bad raspi jamma design in my own project?
Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
