Duplicanator-Scart-Duplicator PCB layout, top view — open source board by KabukiFlux
Simulate this board

About the Duplicanator-Scart-Duplicator PCB

Duplicanator-Scart-Duplicator is an open source PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 70 × 81 mm, with 41 components from 14 distinct parts.

Other key parts include the THS7374IPWR. By type, the board carries 18 resistors, 16 capacitors, 3 connectors, 1 IC, 1 jumper and 1 diode.

It belongs with the retro computing designs in this gallery.

From the project

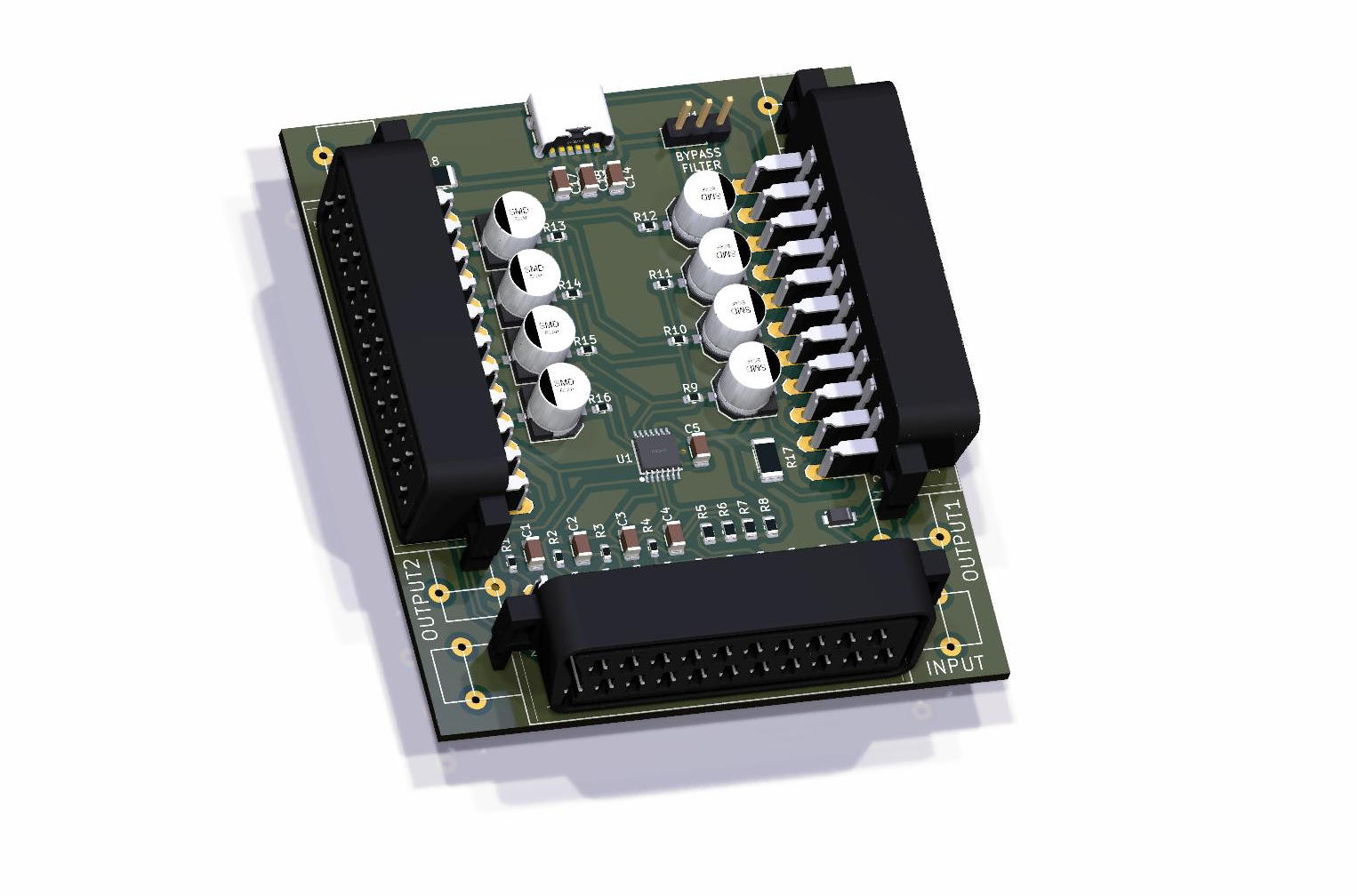

Duplicanator the Scart Duplicator

- What's this? - Schematics - Installation - How to use

This board was done on a livestream so little time was spent on this PCB, you can improve it all you want, it's free.

As this is a MIT License project if you want to use it to create another design you only have to contact me at kabukiflux at/in gmail dot com.

This PCB was designed during a live event on: Twitch https://www.twitch.tv/kabukiflux

Duplicanator-Scart-Duplicator, from the project README
From the project README

Main components on the Duplicanator-Scart-Duplicator

THS7374IPWR

Duplicanator-Scart-Duplicator bill of materials (BOM)

41 components, 14 distinct parts.

QtyPartRefs
1
THS7374IPWR
TI
U1
1
INPUT
J1
1
OUTPUT1
J2
1
OUTPUT2
J3
1
FILTER_BYPASS
JP1
1
USB-312
HOOYA(皓宇电子)
USB1
1
SOD4007
D1
6
0.1u
IHHEC(HOLY STONE ENTERPRISE CO., LTD)
C1, C2, C3, C4, C5, C17
8
330u
Nichicon(尼吉康)
C6, C7, C8, C9, C10, C11, C12, C13
1
10n
KEMET
C14
1
10u
Murata Electronics
C15
12
75
PANASONIC
R1, R2, R3, R4, R9, R10, R11, R12 +4
4
5.36M
UNI-ROYAL(Uniroyal Elec)
R5, R6, R7, R8
2
180
YAGEO
R17, R18

Duplicanator-Scart-Duplicator design files

The KiCad project lives in the KabukiFlux/Duplicanator-Scart-Duplicator repository on GitHub; these links point at the commit this page was built from.

Duplicanator-Scart-Duplicator: common questions

How big is the Duplicanator-Scart-Duplicator PCB?

The Duplicanator-Scart-Duplicator measures 70 × 81 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Duplicanator-Scart-Duplicator?

41 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Duplicanator-Scart-Duplicator design files?

From the KabukiFlux/Duplicanator-Scart-Duplicator repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Duplicanator-Scart-Duplicator design in my own project?

Yes, under the terms of its MIT license, which KabukiFlux chose for the repository.
