JAMMA 2player xbox360 PCB layout, top view — open source RP2040/RP2350 board by KabukiFlux

About the JAMMA 2player xbox360 PCB

JAMMA 2player xbox360 is an open source RP2040/RP2350 PCB design by KabukiFlux, published on GitHub under the MIT license. It is a 2-layer board measuring 125.7 × 77 mm, with 17 components from 16 distinct parts.

Its main chip is the pi_pico, from the RP2040/RP2350 family. By type, the board carries 9 connectors, 6 jumpers and 2 ICs.

From the project

JAMMA Xbox360 wired controller for RGBUNTU/PI cheap

- Description - Schematics - How to use - Bugs and feature requests - Copyright and license

This is intended to be a very cheap JAMMA 2 players board to USB adapter and it was done during a live Twitch event (less than 4 hours).

It uses 2 pi-pico with 2 usb ports, one for the player 1 and other for the player 2, on the computer/raspberry/MiSTer side it will be automatically recognized as 2 Xbox360 wired controllers.

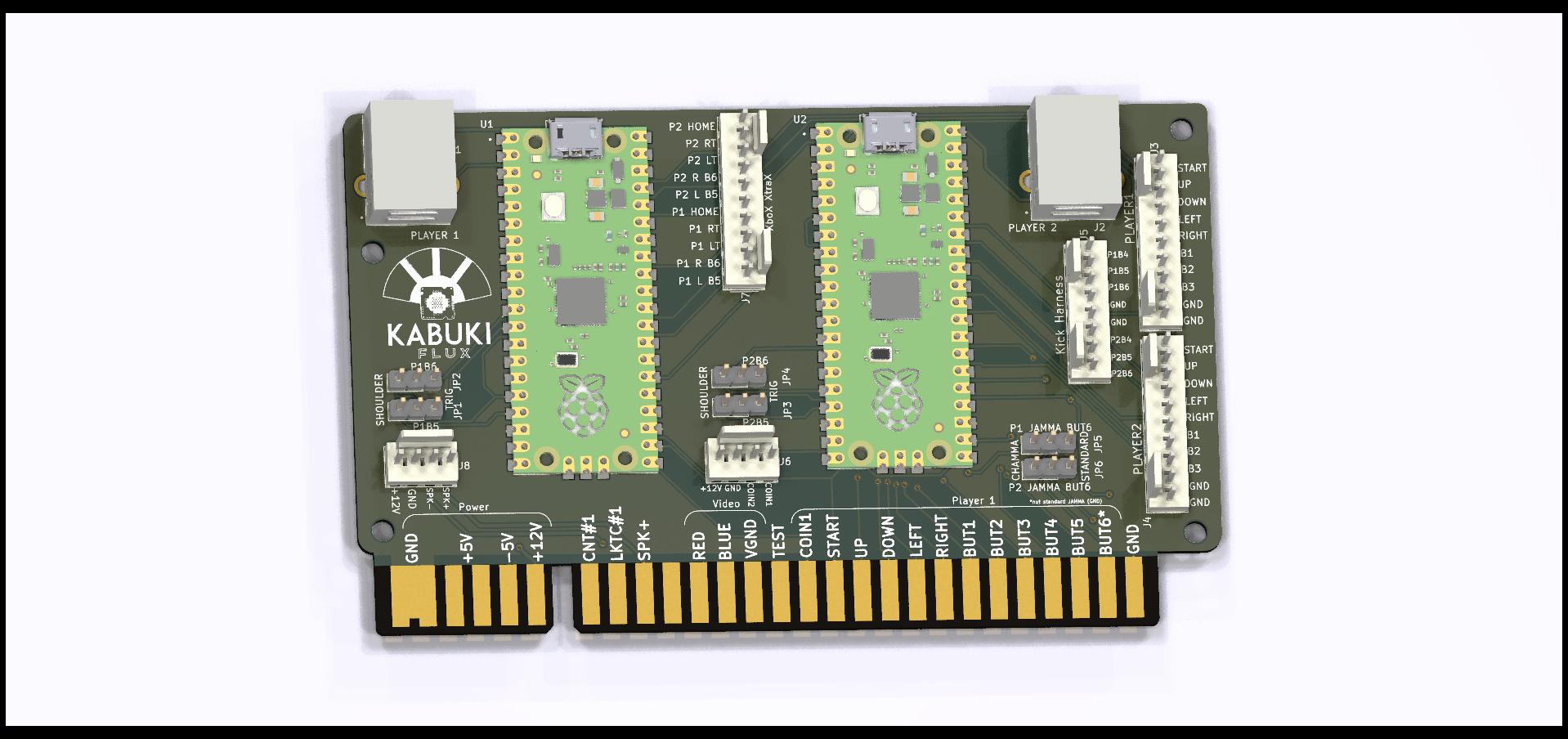

JAMMA 2player xbox360, from the project README
From the project README

Main components on the JAMMA 2player xbox360

pi_pico

JAMMA 2player xbox360 bill of materials (BOM)

17 components, 16 distinct parts.

QtyPartRefs
2
pi_pico
U1, U2
1
USB-B PICO1
J1
1
USB-B PICO2
J2
1
PLAYER1
J3
1
PLAYER2
J4
1
Kick Harness
J5
1
CREDITS
J6
1
XboX XtraX
J7
1
AUDIO
J8
1
JAMMA_edge_conn
J9
1
P1_B5_SELECTOR
JP1
1
P1_B6_SELECTOR
JP2
1
P2_B5_SELECTOR
JP3
1
P2_B6_SELECTOR
JP4
1
P1 JAMMA BUT6
JP5
1
P2 JAMMA BUT6
JP6
